Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2003 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (See  REPLACEMENT  )
  5. REMOVE COMBINATION METER ASSY (See  REPLACEMENT  )
  6. REMOVE COMBINATION METER GLASS
    1. Remove the 2 screws.

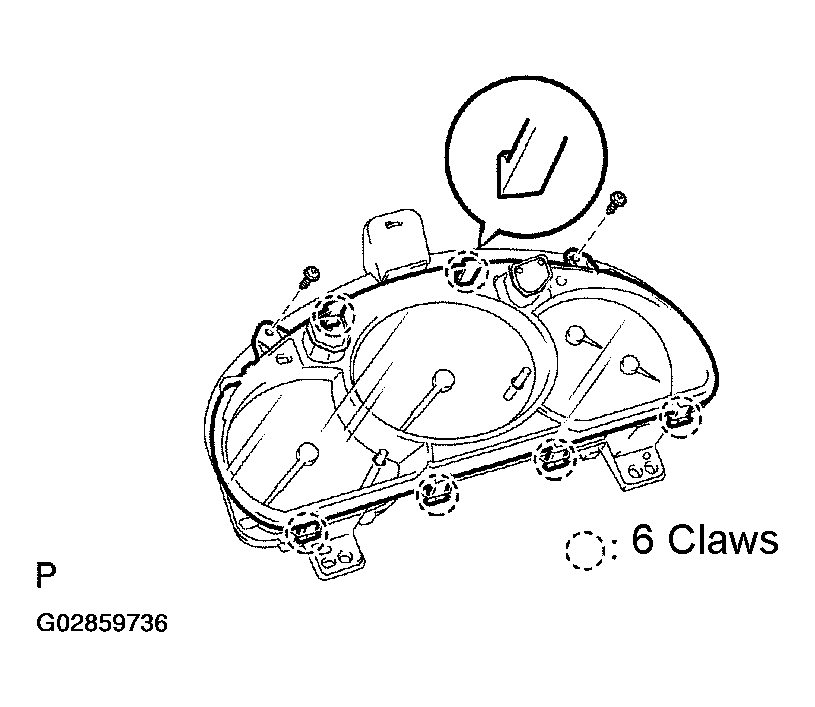

      Fig 1: Removing Combination Meter Glass
      G02859736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws and remove the combination meter glass.
