Generator Assembly: Replacement

  1. REMOVE FAN AND GENERATOR V BELT

    See  REMOVE FAN AND GENERATOR V BELT  .

    SST 09249-63010

  2. REMOVE GENERATOR ASSEMBLY
    1. Disconnect the engine wire as shown.

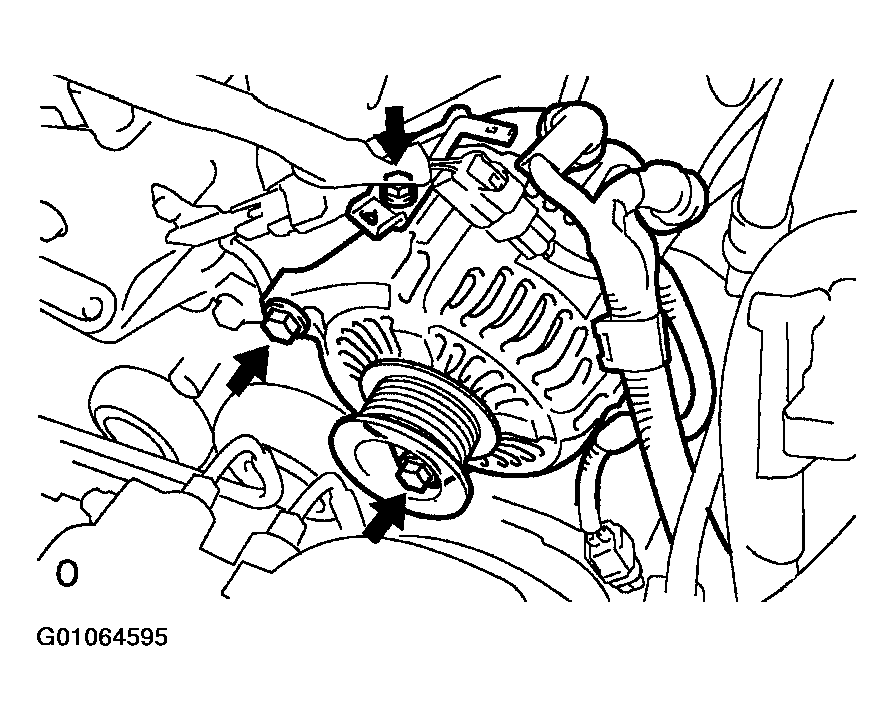

      Fig 1: Removing Generator Assembly
      G01064595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove 3 bolts and alternator assembly.
  3. INSTALL GENERATOR ASSEMBLY

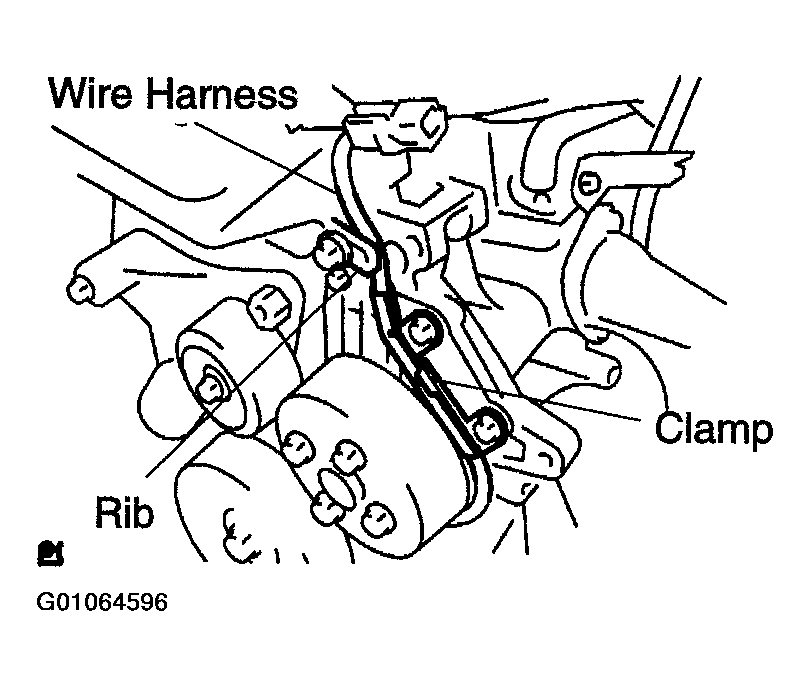

      Fig 2: Installing Generator Assembly
      G01064596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Confirm the wire harness of the crank position sensor is placed as shown in the illustration.
    2. Install the alternator assembly.
      1. Torque:
        1. M8 21 N.m (214 kgf.cm, 15 ft.lbf)
        2. M10 52 N.m (530 kgf.cm, 38 ft.lbf)
        3. Wiring harness clamp 8.4 N.m (85 kgf.cm, 74 in.lbf)
        4. Alternator wire 9.8 N.m (100 kgf.cm, 7 ft.lbf)
      NOTE: Be careful not to pinch the wire harness when installing the alternator.
  4. INSTALL FAN AND GENERATOR V BELT

    See  REMOVE FAN AND GENERATOR V BELT  .

    SST 09249-63010
