Remove Generator

  1. Disconnect the wire clamp from the wire clip on the rectifier end frame.
  2. Remove the rubber cap and nut, and disconnect the generator wire.
  3. Disconnect the generator connector.
  4. Disconnect the harness clamp from the generator.

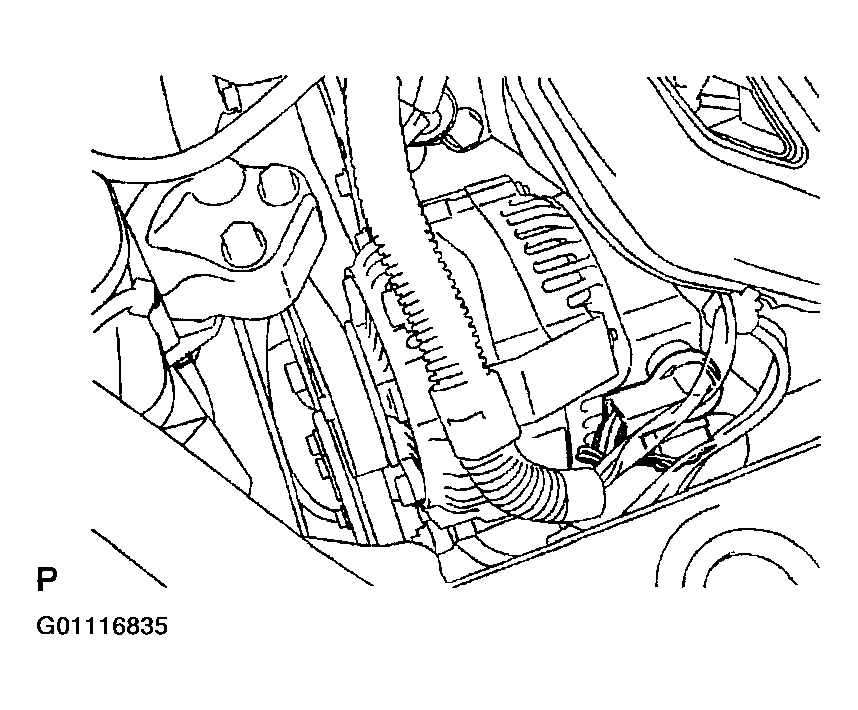

    Fig 1: Disconnecting Wire Clamp
    G01116835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Loosen the 2 bolts and remove the drive belt.
  6. Remove the 2 bolts and generator.

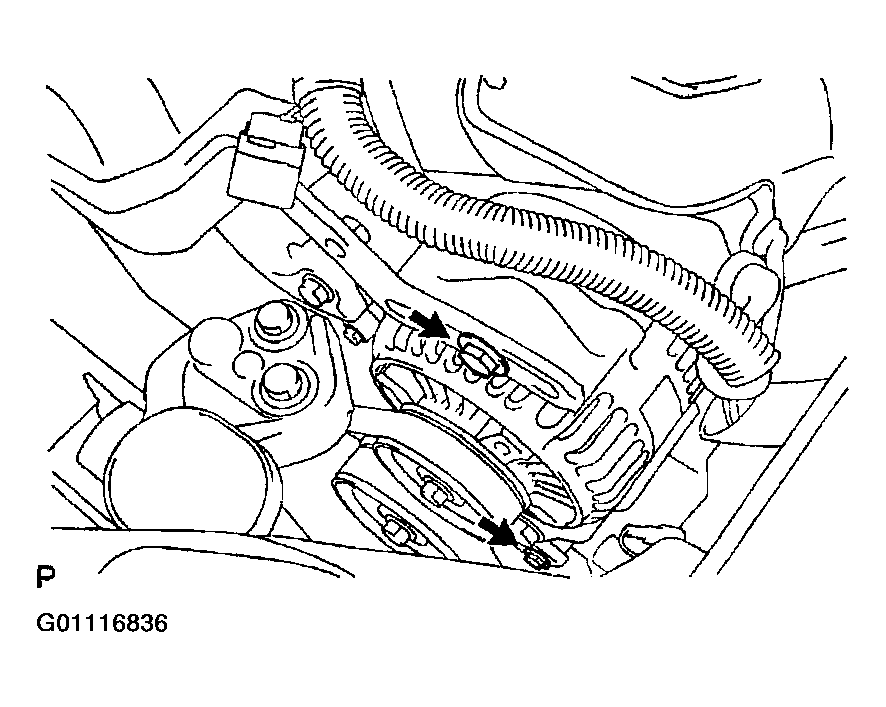

    Fig 2: Loosening Bolts For Drive Belt Remover
    G01116836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
