Charging System - Generators & Regulators: Generator: Disassembly

Remove Rear End Cover
1. Remove the nut and terminal insulator.

  Fig 1: Locating Nut & Terminal Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt, 3 nuts, plate terminal and end cover.

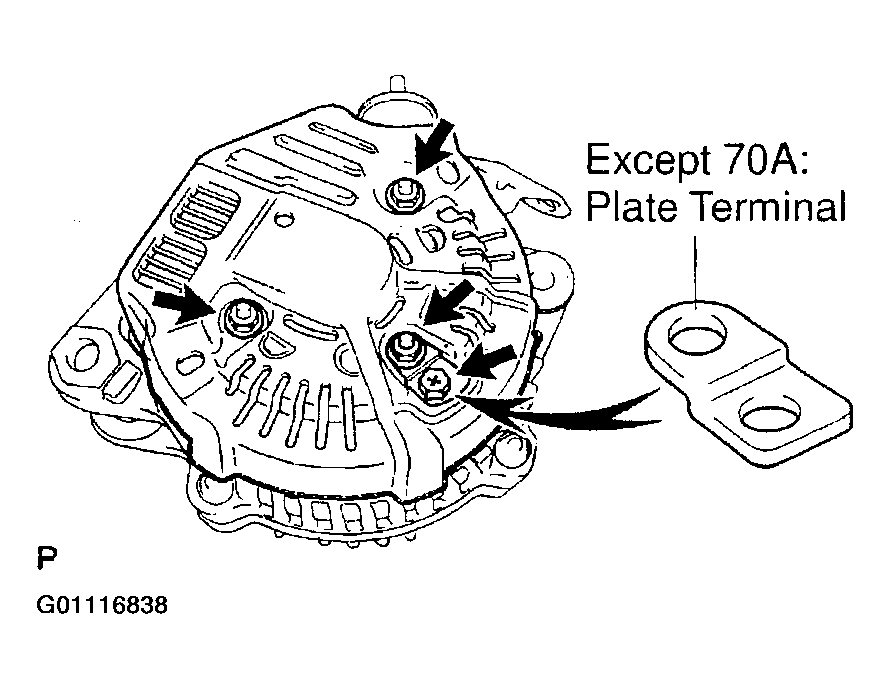

  Fig 2: Displaying Plate Terminal Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Brush Holder And Voltage Regulator
1. Remove the brush holder cover from the brush holder.
2. Remove the 5 screws, brush holder and voltage regulator.
3. Remove the seal plate from the rectifier end frame.

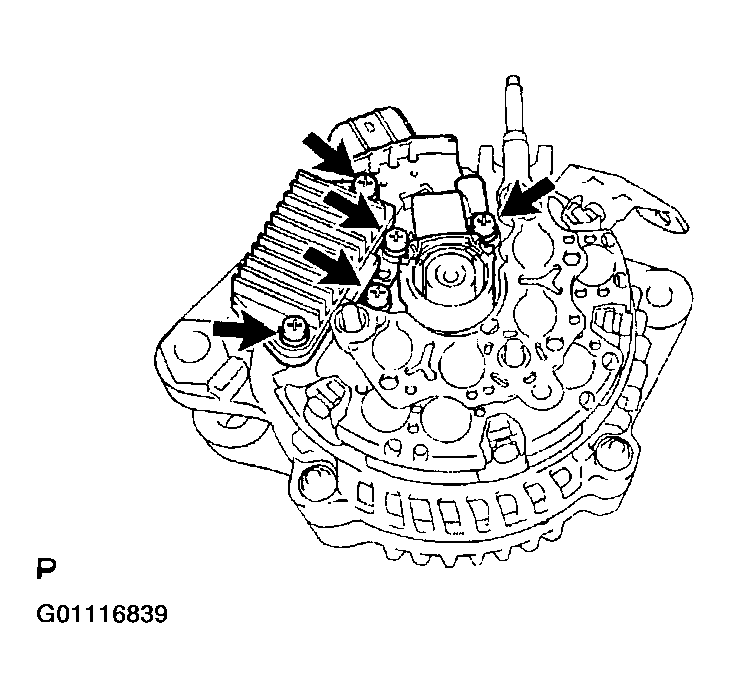

  Fig 3: Removing Brush Holder & Voltage Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Rectifier Holder
1. Remove the 4 screws and rectifier holder.
2. Remove the 4 rubber insulators.

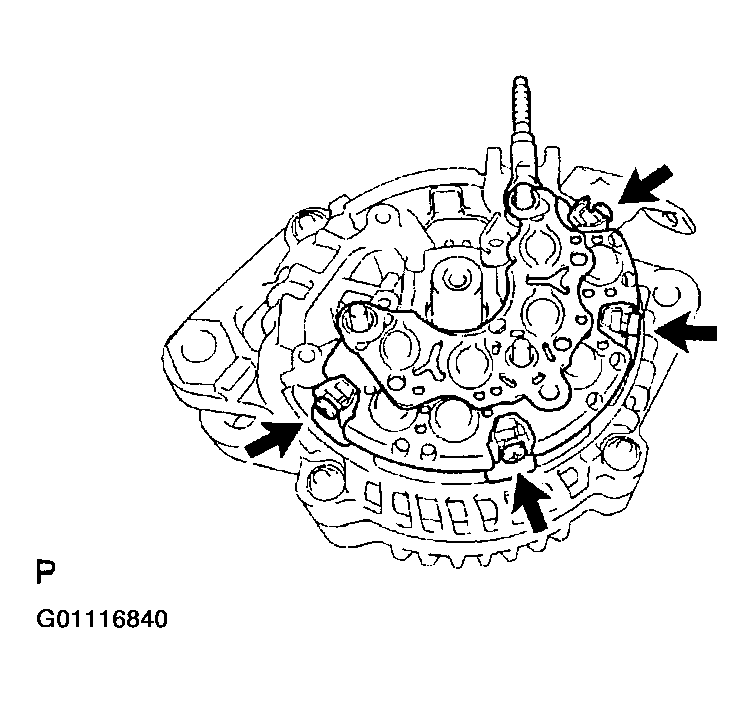

  Fig 4: Locating Rectifier Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Pulley
1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
  SST 09820-63011
  1. Torque:
  2. 39 N.m (400 kgf.Cm, 29 ft.lbf)
2. Check that SST (A) is secured to the rotor shaft.

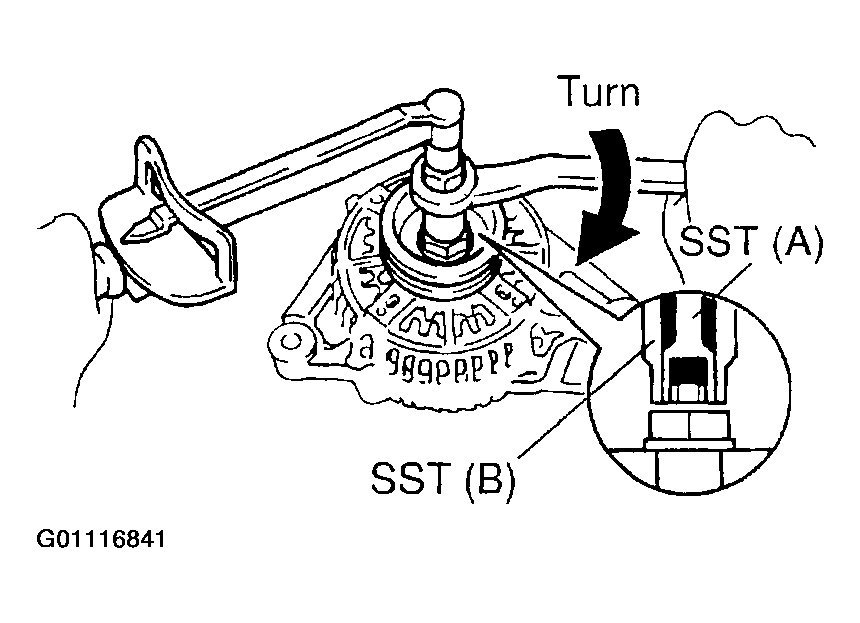

  Fig 5: Displaying Pulley Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Mount SST (C) in a vise.
4. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).

  Fig 6: Displaying SST (B) & SST (C)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. To loosen the pulley nut, turn SST (A) in the direction shown in the illustration.
  NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half of a turn.
6. Remove the generator from SST (C).

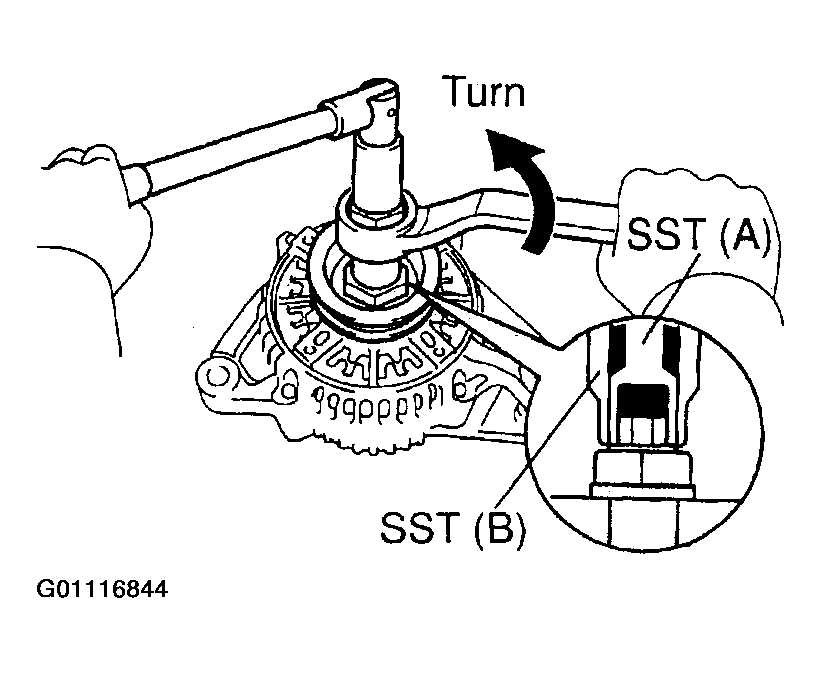

  Fig 7: Loosening Pulley Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Turn SST (B), and remove SST (A and B).
8. Remove the pulley nut and pulley.

  Fig 8: Displaying SST (A & B) Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Rectifier End Frame
1. Remove the 4 nuts and wire clip.

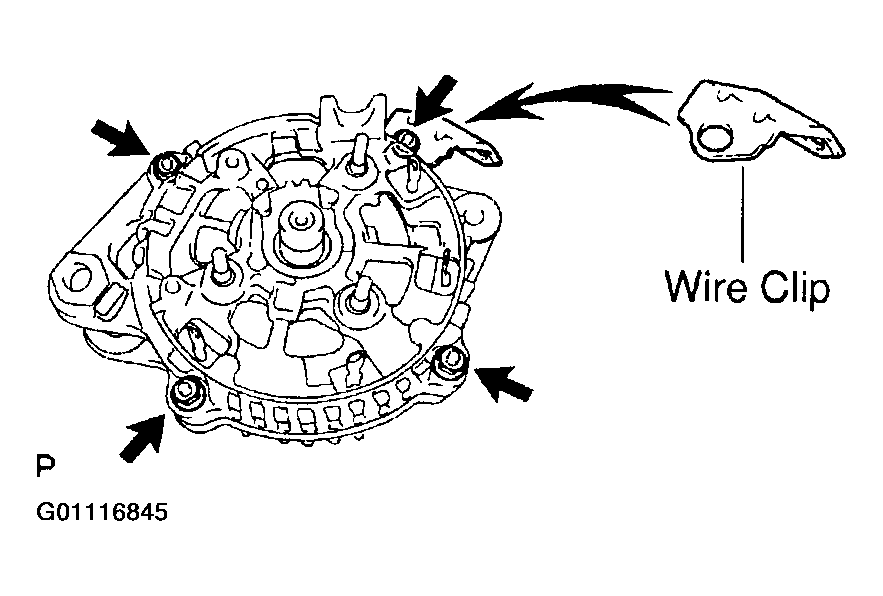

  Fig 9: Displaying Wire Clip Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the rectifier end frame.
  SST 09286-46011
3. Remove the generator washer from the rotor

Fig 10: Removing Rectifier End Frame Using SST

Remove Rotor From Drive End Frame
