Cruise Main Indicator Light
Cruise Main Indicator Light
For cruise main indicator light testing procedure, see
Fig 1
and
Fig 2
.

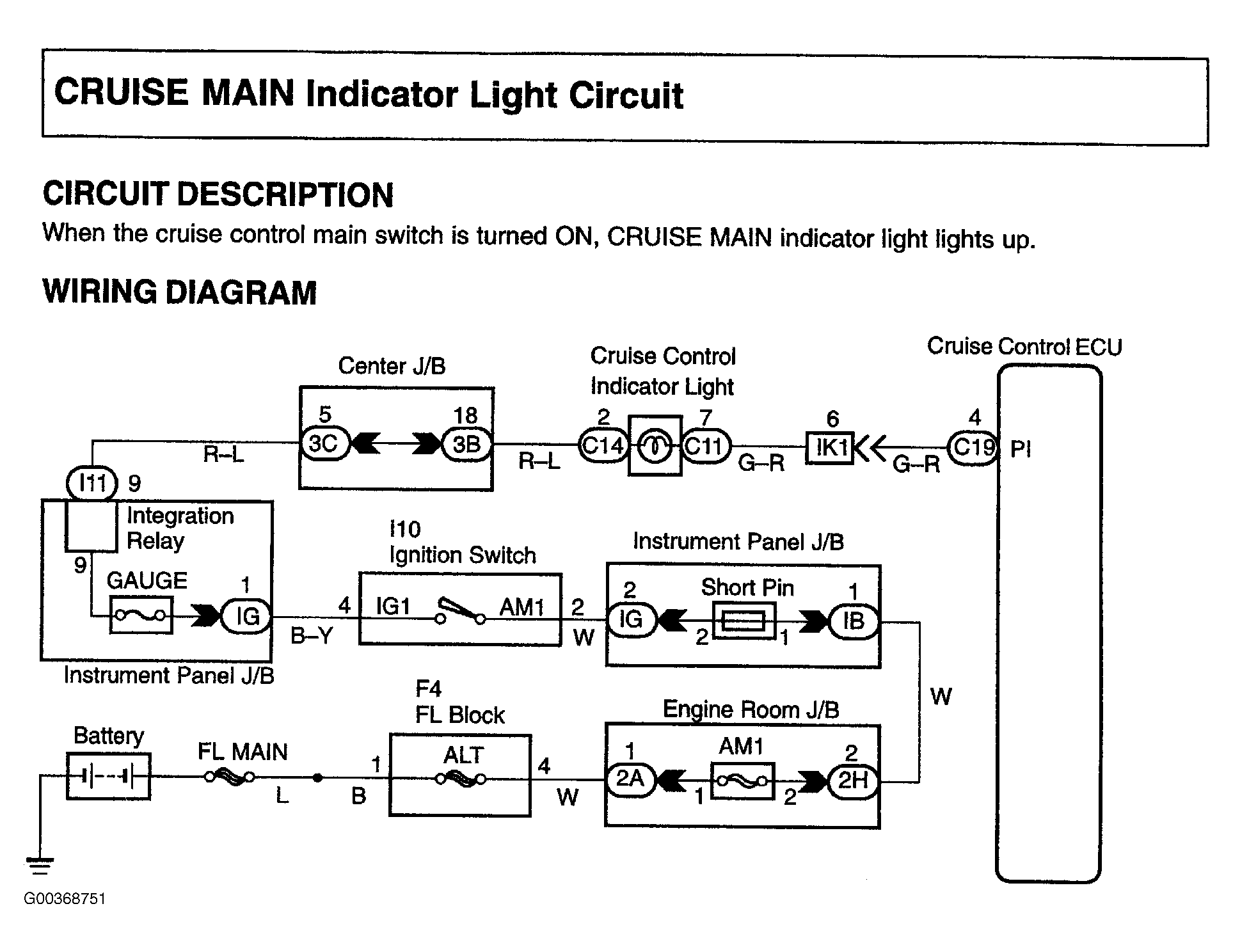

Fig 1: Testing Cruise Main Indicator Light (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

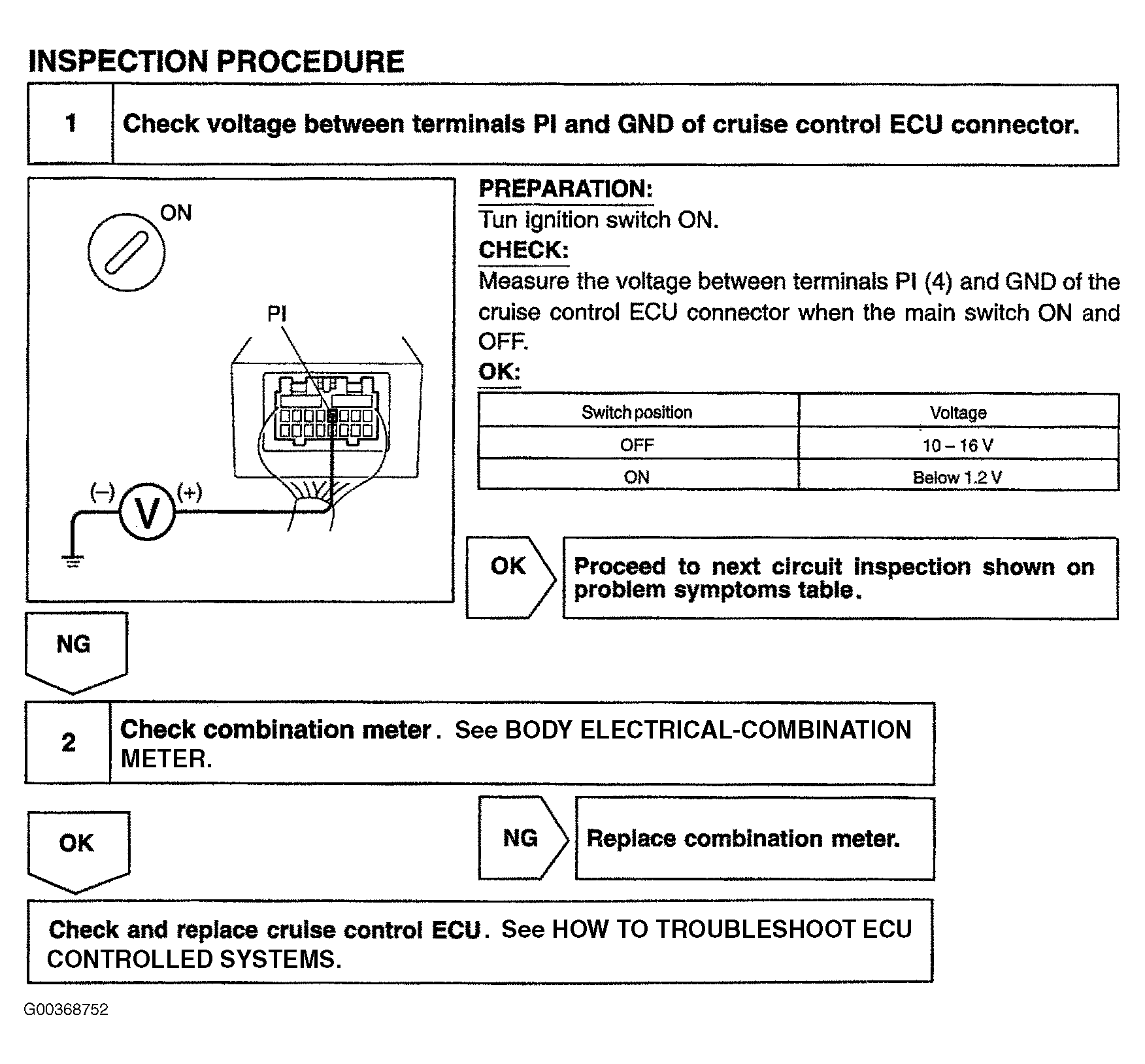

Fig 2: Testing Cruise Main Indicator Light (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
