Oil Pump: Removal

  1. Drain engine oil.
  2. Remove timing chain and crankshaft timing sprocket. See step 19)  under REMOVAL under TIMING CHAIN.
  3. Remove oil pump.
    1. Remove the 5 bolts, oil pump and gasket.

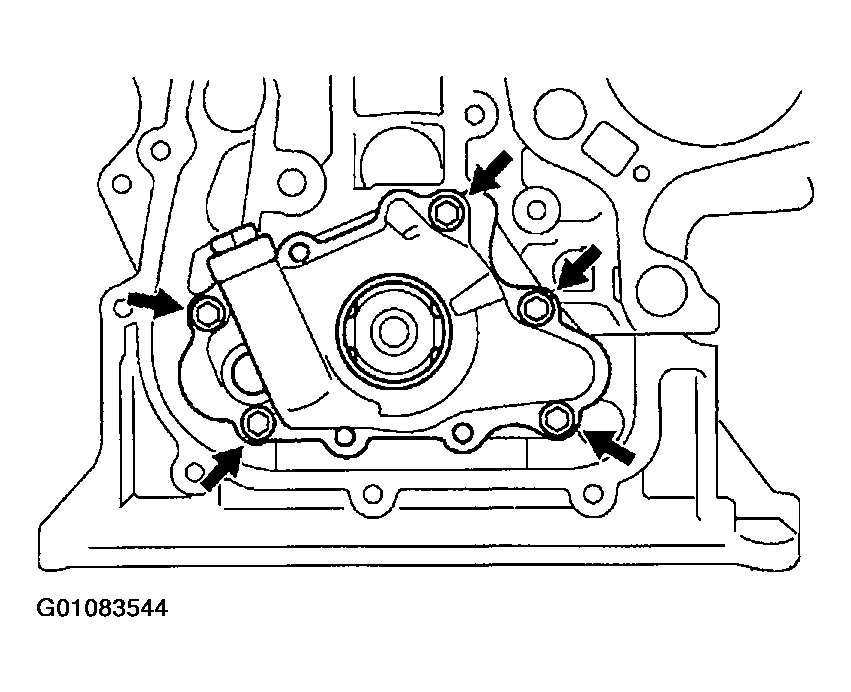

      Fig 1: Locating Bolts For Removal Of Oil Pump & Gasket
      G01083544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
