Oil Pump: Reassembly

Install drive and driven rotors
1. Place the drive and driven rotors into pump body with the marks facing the pump body cover side.

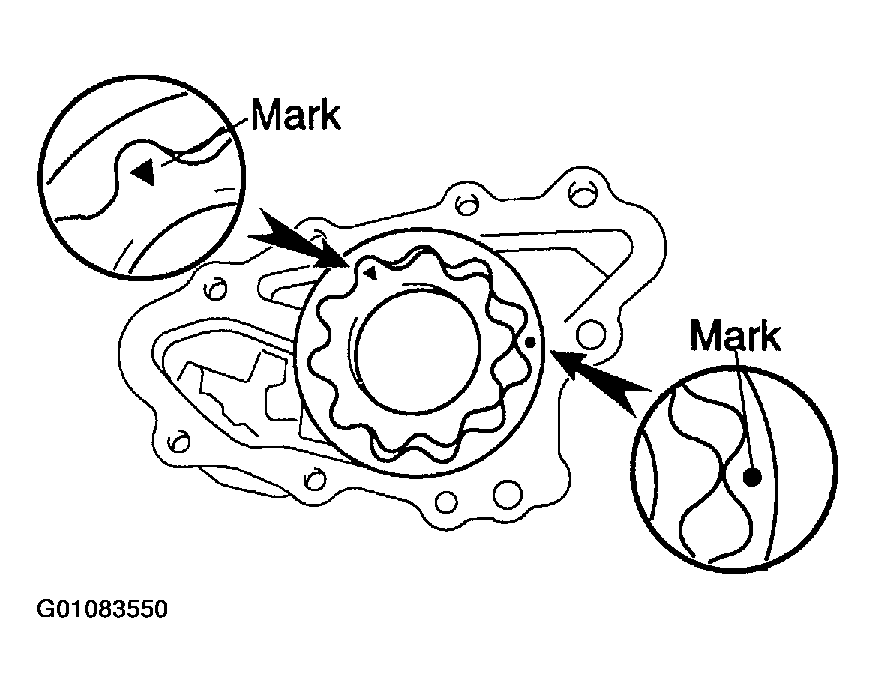

  Fig 1: Placing Drive & Driven Rotors With Marks Facing Pump Body Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 3 screws.
  1. Torque: 10.5 N.m (107 kgf.cm, 8 ft.lbf)
.
Install relief valve.
1. Insert the relief valve and spring into the pump body hole, and install the plug.
  1. Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
