Engine Unit: Components

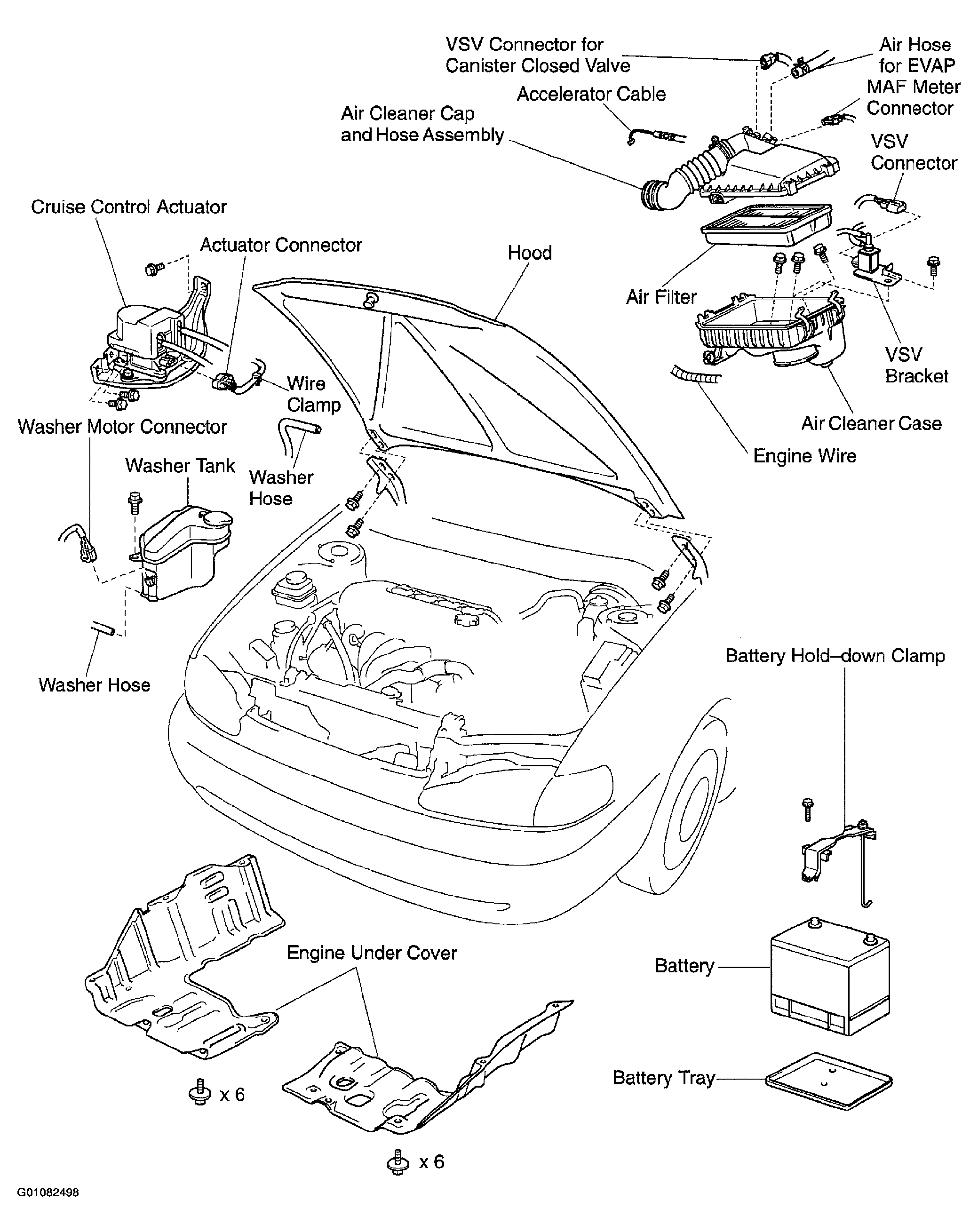

Fig 1: Locating Engine Unit Components (1 Of 4)
G01082498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

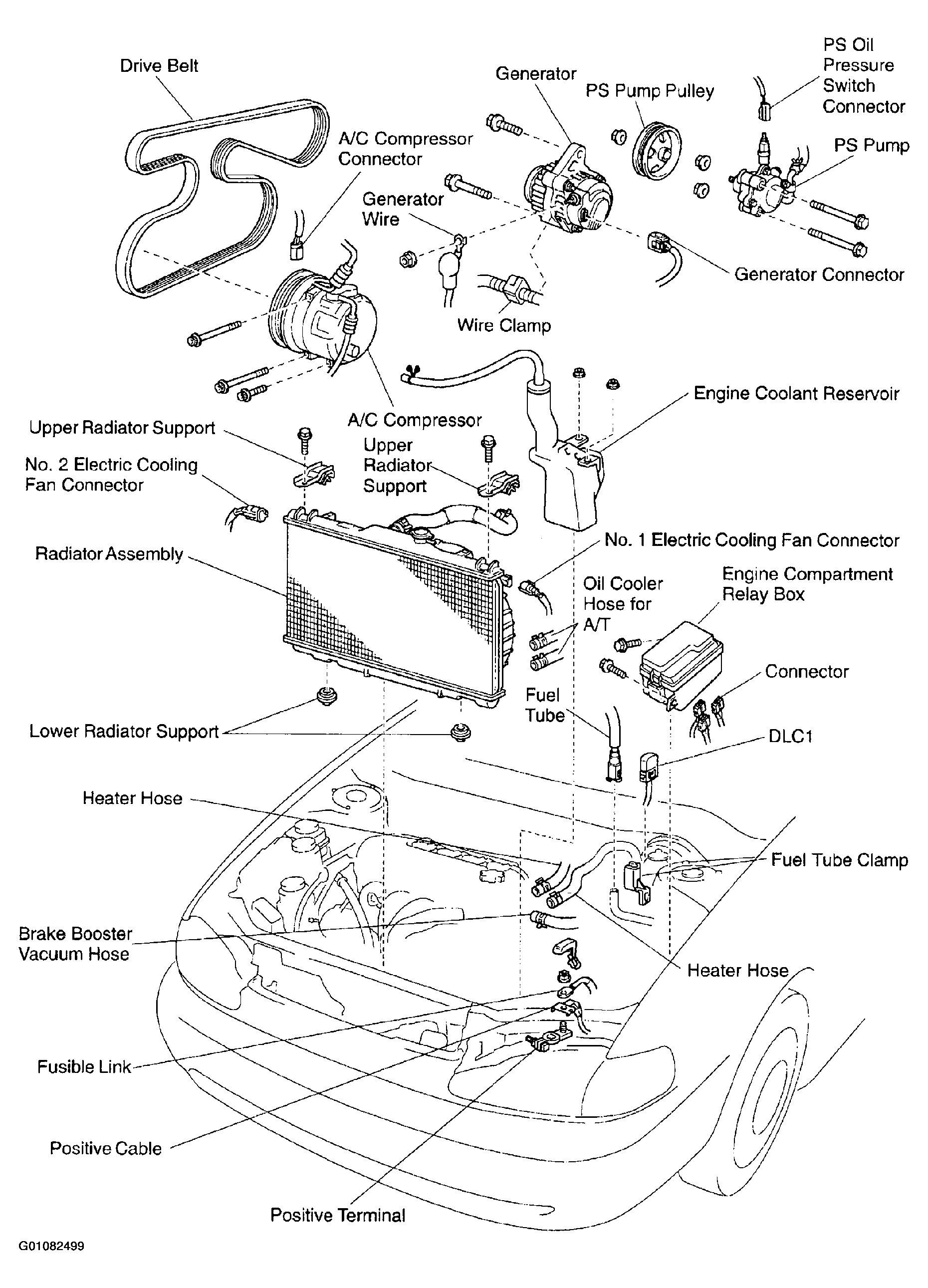

Fig 2: Locating Engine Unit Components (2 Of 4)
G01082499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

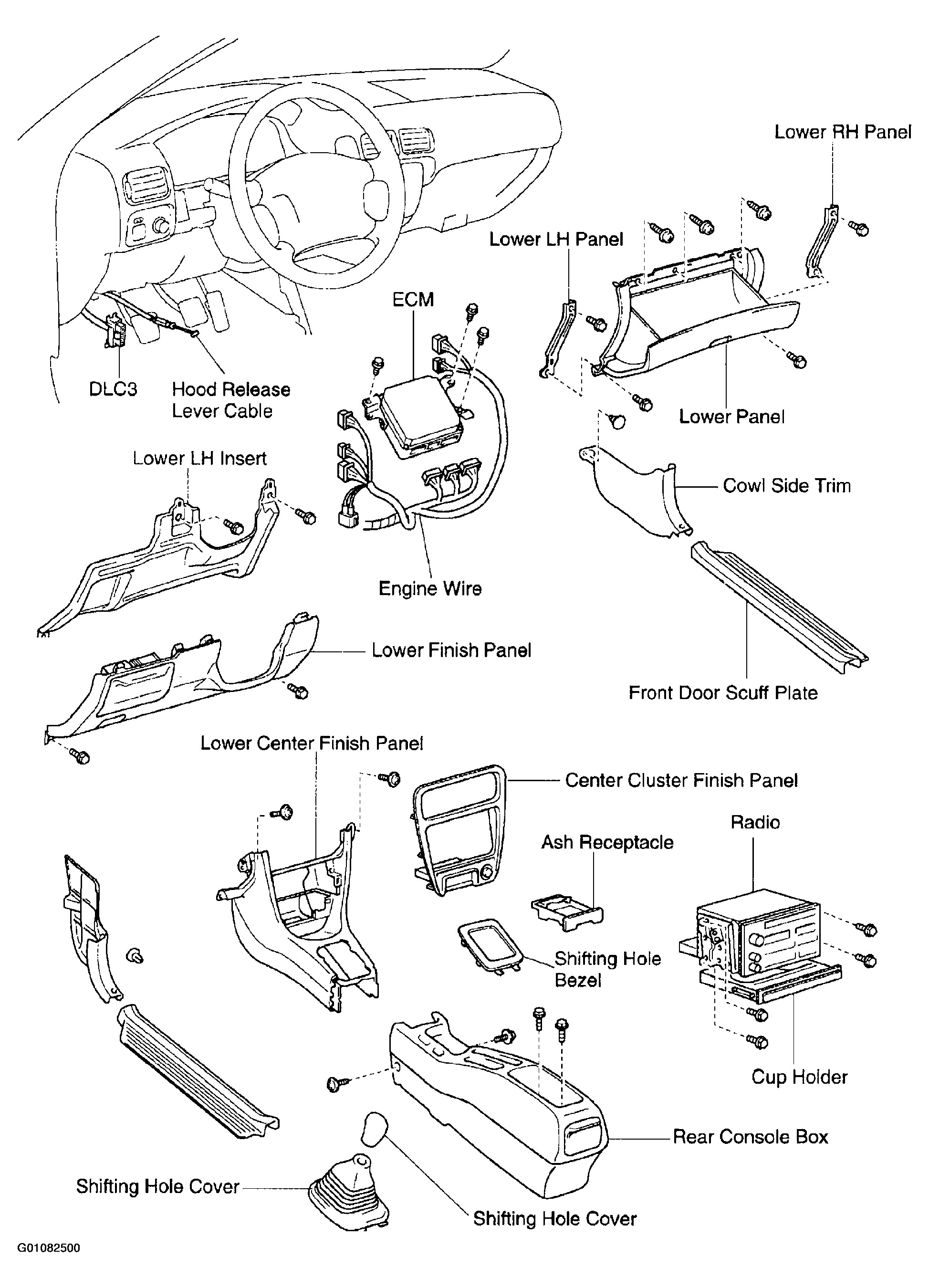

Fig 3: Locating Engine Unit Components (3 Of 4)
G01082500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

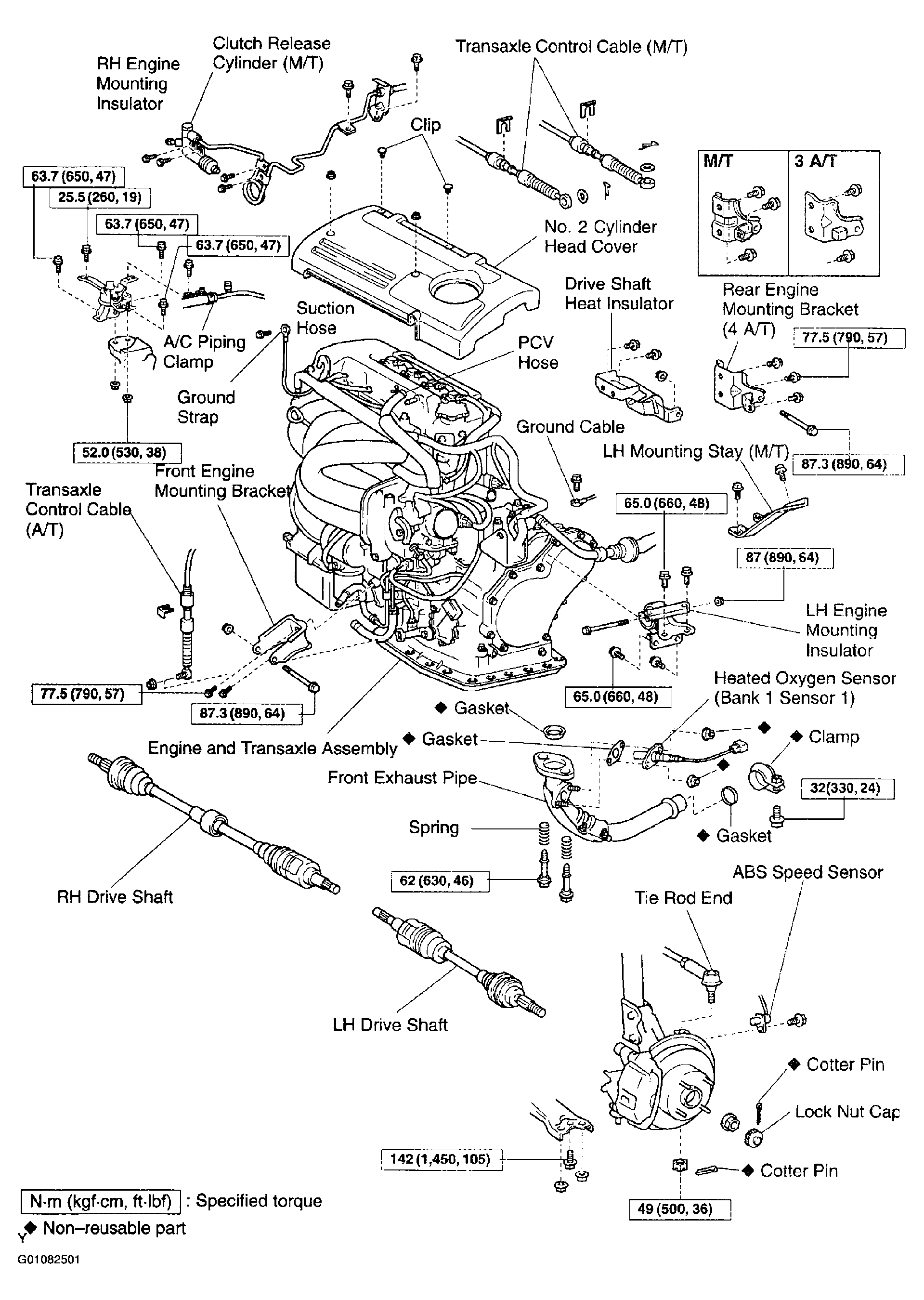

Fig 4: Locating Engine Unit Components (4 Of 4)
G01082501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
