Power Steering Vane Pump: Removal

  1. Remove the 4 bolts, 2 screws and RH engine under cover.
  2. Loosen the drive belt tension by turning the drive belt tensioner arm clockwise, and remove the drive belt.
    3. NOTE: Take care not to spill fluid on the drive belt.

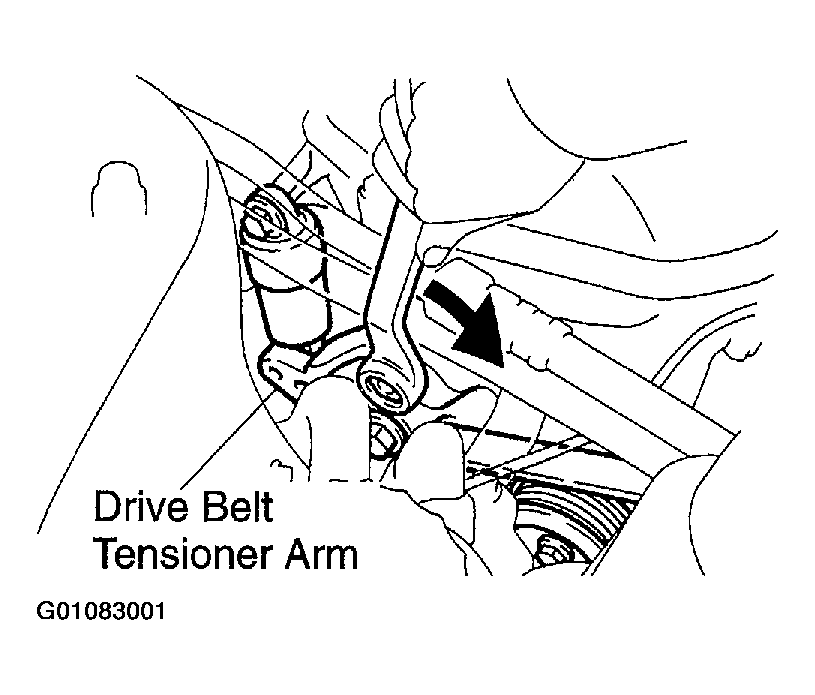

    Fig 1: Removing Serpentine Belt
    G01083001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the clip and disconnect the suction hose.
  4. Remove oil pressure switch  :
    1. Disconnect the connector.
      2. CAUTION: Be careful not to drop the pressure switch.
    2. Remove the oil pressure switch, as shown in the illustration.

      If the oil pressure switch is dropped or strongly damaged, replace it with a new one.

  5. Remove the union bolt and gasket, and disconnect the pressure feed tube.

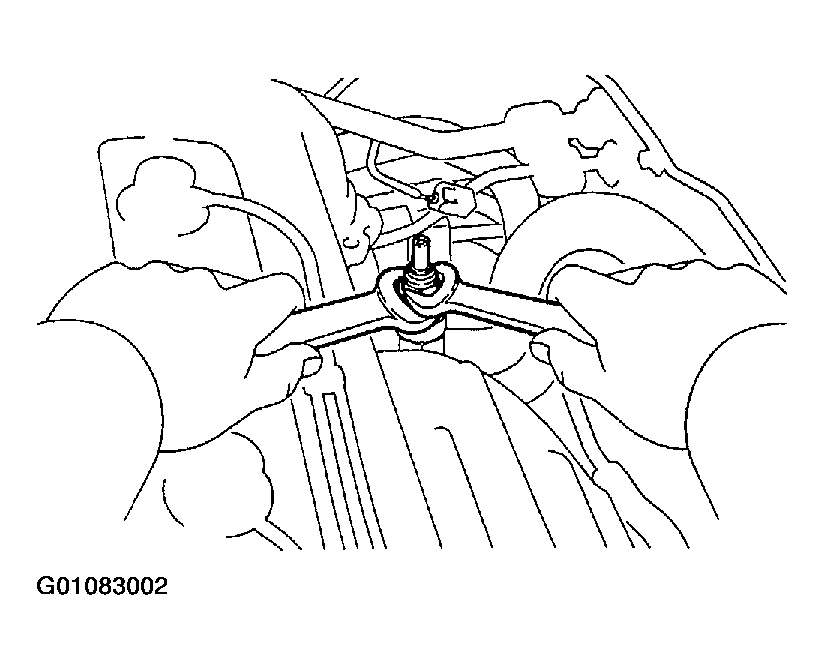

    Fig 2: Removing Pressure Feed Tube
    G01083002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Remove vane pump pulley  :
    1. Using SST, stop the pulley rotating and loosen the nut.
    2. Remove the nut and vane pump pulley from the vane pump shaft. SST 09960-10010 (09962-01000, 09963-01000).
  7. Remove the 2 pump assembly set bolts, nuts and the PS vane pump assembly.

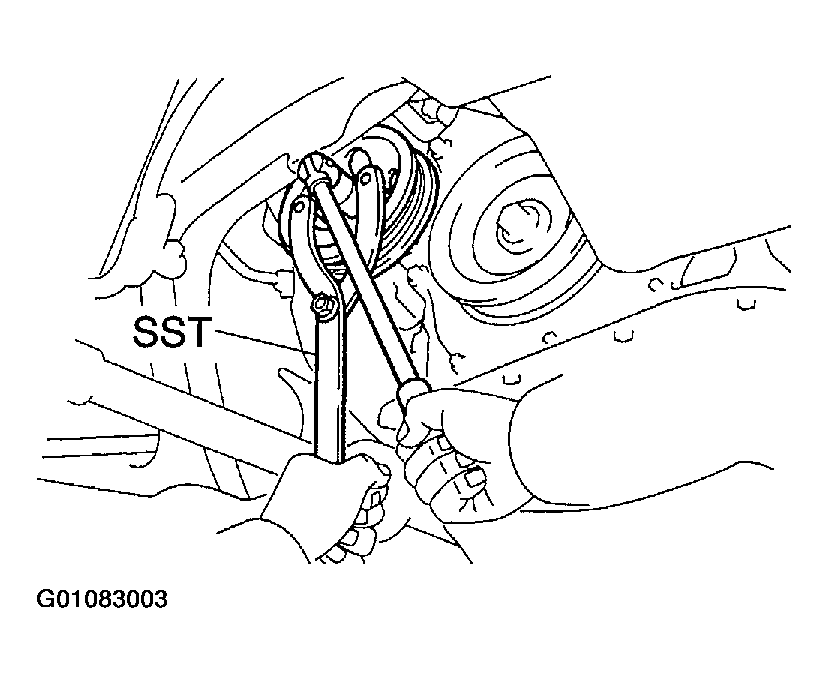

    Fig 3: Removing Vane Pump Pulley
    G01083003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
