Power Steering Vane Pump: Installation

Install the PS vane pump assembly with the 2 pump assembly set bolts and nuts . Torque: 37 N.m (370 kgf.cm, 27 ft.lbf)
Install vane pump pulley :
1. Install the vane pump pulley and nut to the vane pump shaft.

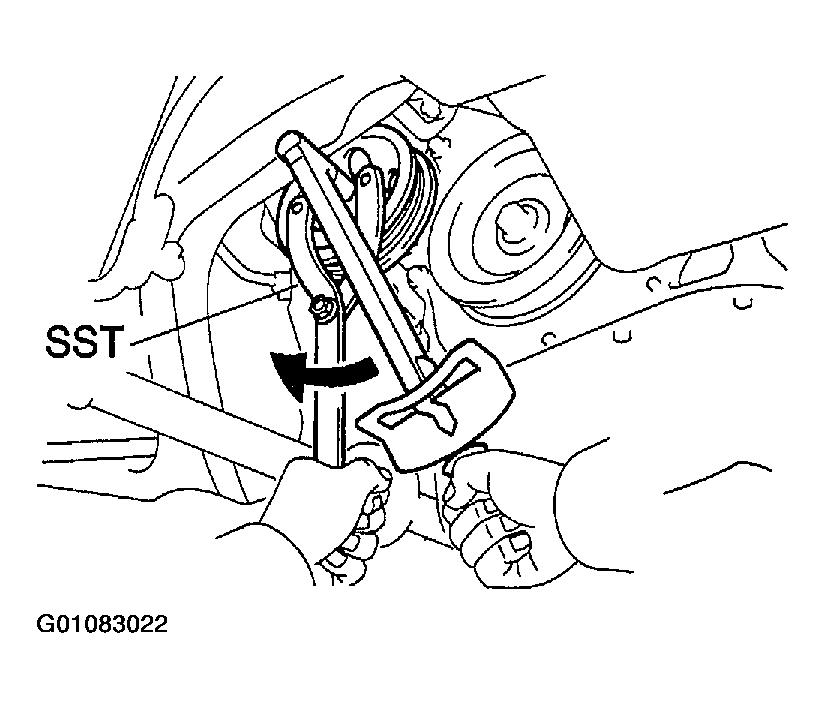

  Fig 1: Installing PS Vane Pump Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, stop the vane pump pulley rotating and torque the nut. Torque: 43 N.m (440 kgf.cm, 32 ft.lbf) . SST 09960-10010 (09962-01000, 09963-01000).

NOTE: Make sure that the stopper of the pressure feed tube touches the pressure feed No. 2 tube as shown in the illustration, then torque the union bolt.

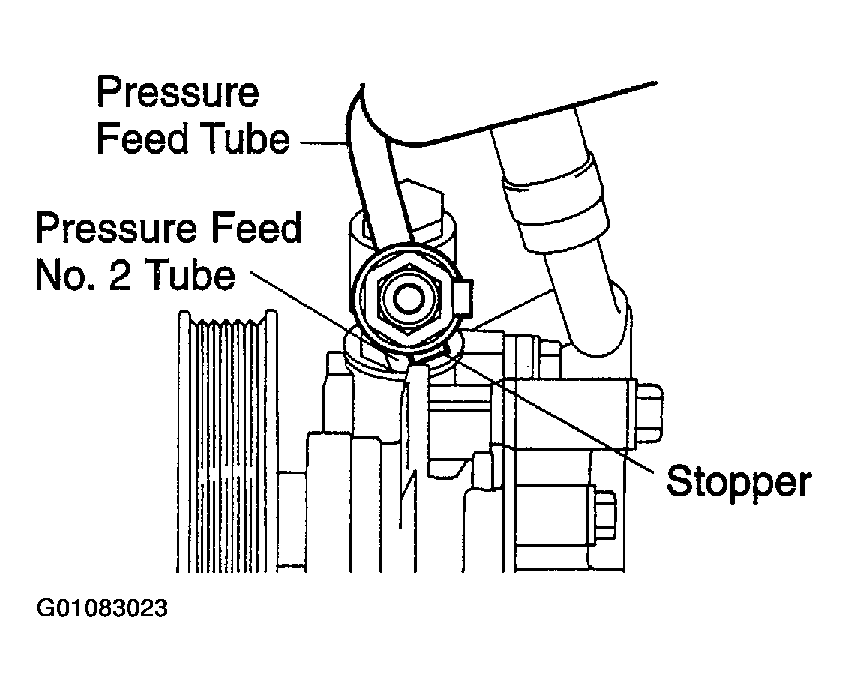

Fig 2: Locating pressure feed tube, stopper & union bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install a new gasket, and connect the pressure feed tube with the union bolt . Torque: 54 N.m (550 kgf.cm, 40 ft.lbf) .

CAUTION: Be careful of oil on the connector.

Install the oil pressure switch . Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)
Connect the connector.
Connect the suction hose with the clip .
Loosen the drive belt tension by turning the drive belt tensioner arm clockwise, and install the drive belt .

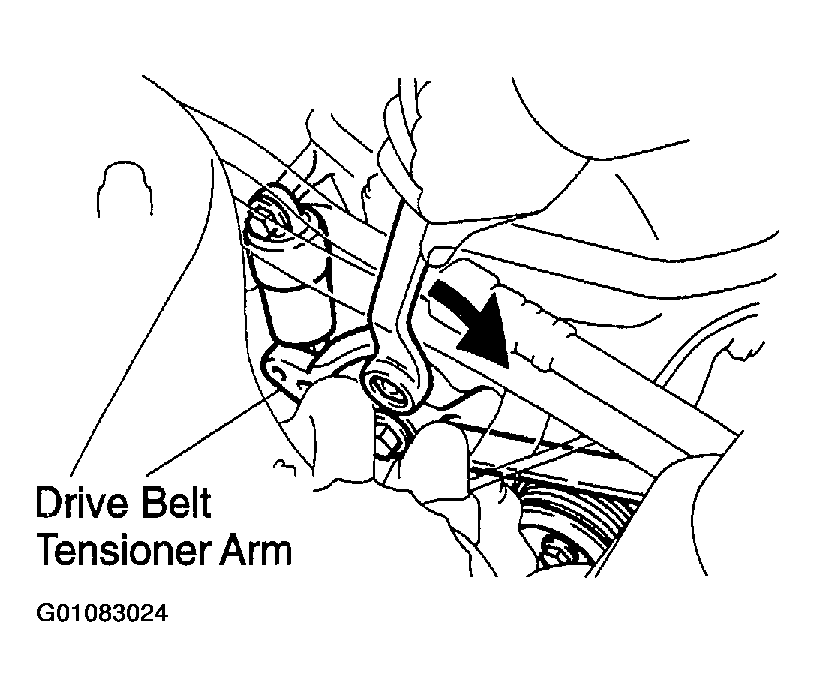

Fig 3: Installing Serpentine Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the RH engine under cover with the 4 bolts and 2 screws .
Bleed power steering system . See REPLACEMENT .
