Engine Cooling System: Radiator: Removal

  1. Drain engine coolant.
  2. Remove engine under covers.
  3. Remove radiator assembly.
    1. Disconnect the No. 1 electric cooling fan connector.
    2. Disconnect the No. 2 electric cooling fan connector.
    3. Disconnect the upper radiator hose.
    4. Disconnect the lower radiator hose.
    5. Disconnect the radiator reservoir hose.
    6. A/T:

      Disconnect the 2 oil cooler hoses.

    7. Remove the 2 bolts and upper radiator supports.

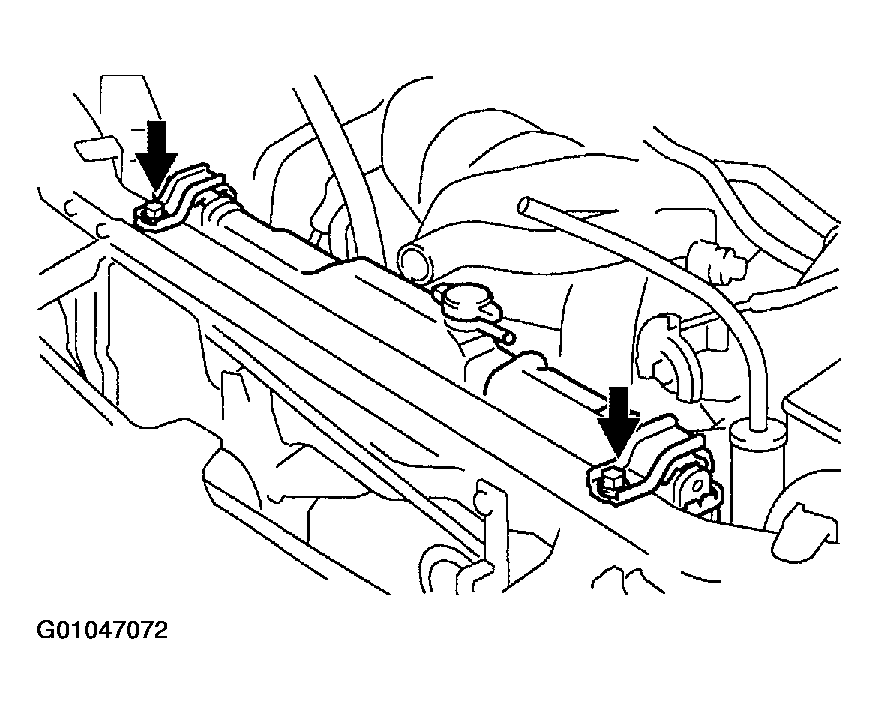

      Fig 1: Locating Bolts For Removal Of Upper Radiator Supports
      G01047072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the radiator assembly.
    9. Remove the 2 lower radiator supports.
  4. Remove electric cooling fan from radiator.

    Remove the 5 bolts and cooling fan assembly.
