Sliding Roof: Disassembly

Remove sliding roof panel stopper :
Remove the 2 screws and 2 stoppers.
Remove sunshade trim :

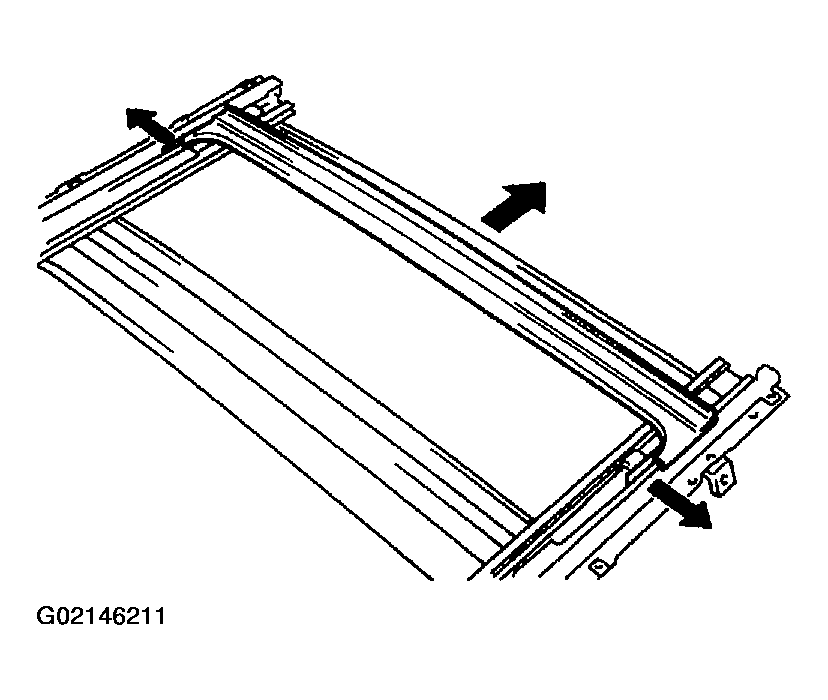

Fig 1: Locating Sunshade Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove rear roof drip channel :
Remove the rear roof drip channel.

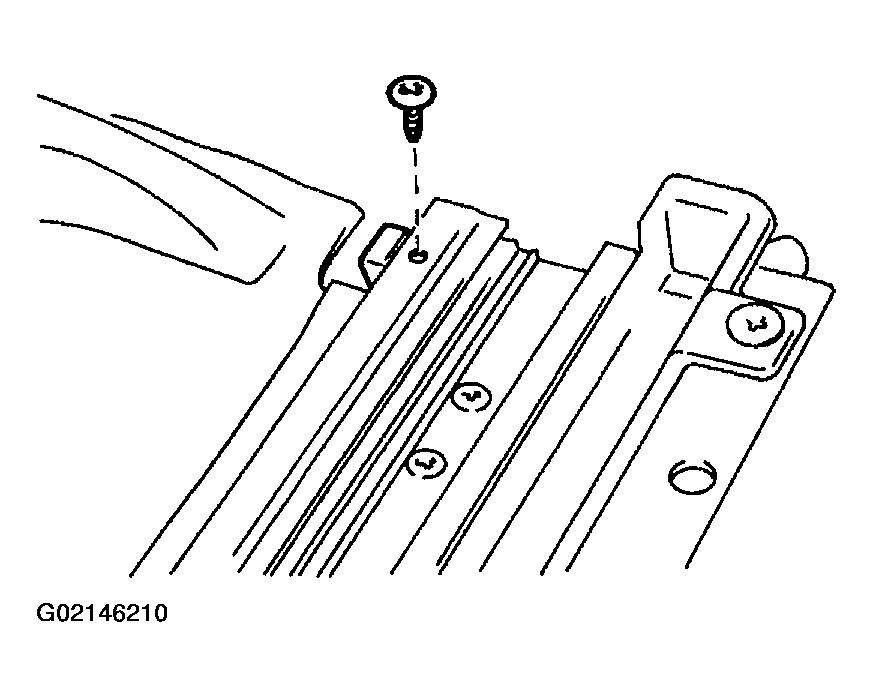

Fig 2: Removing Rear Roof Drip Channel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

At the time of reassembly, please refer to following items.

Adjust the drive cable to a closed and tilted down position.
Slide the cable forward or backward to align the 2 marks.

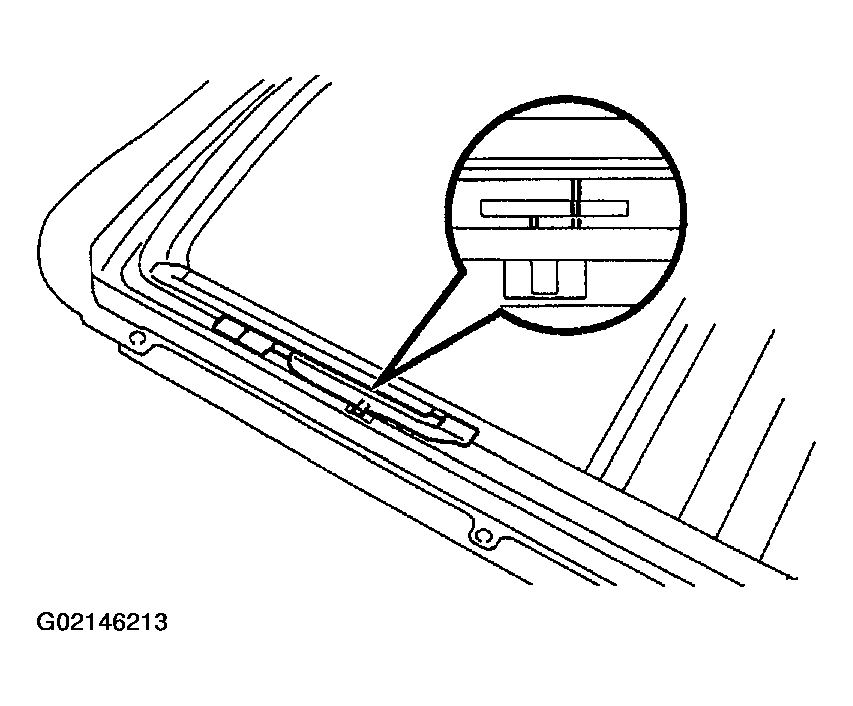

Fig 3: Locating Cable Alignment Marks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Slide the cable to the forefront with your hand.

Remove drive cable :
1. Remove the screw and guide rail stopper.

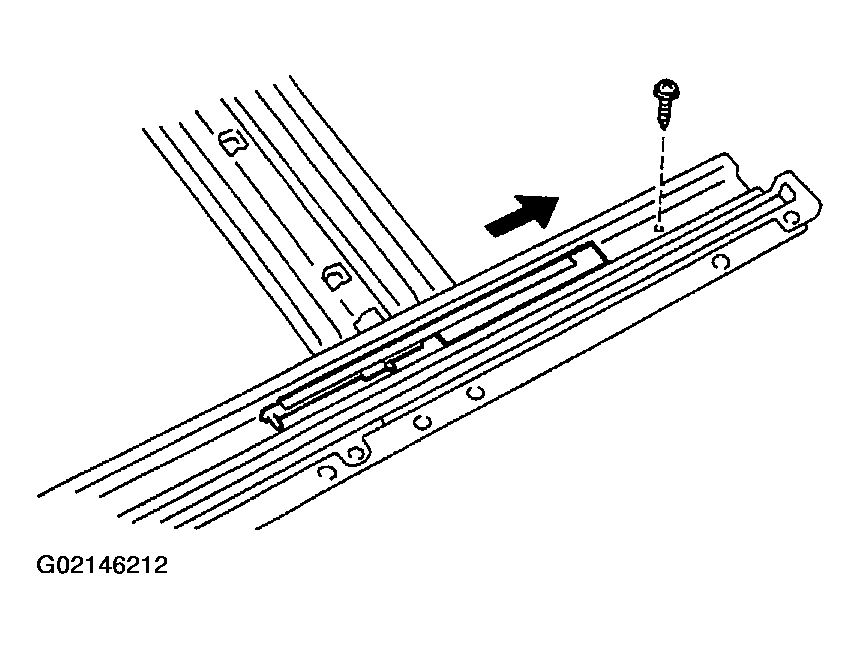

  Fig 4: Drive Cable Removal Procedure
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slide the drive cable rearward, then remove it.
Remove roof window deflector panel :
Remove guide block :
Remove the 2 screws and guide block.

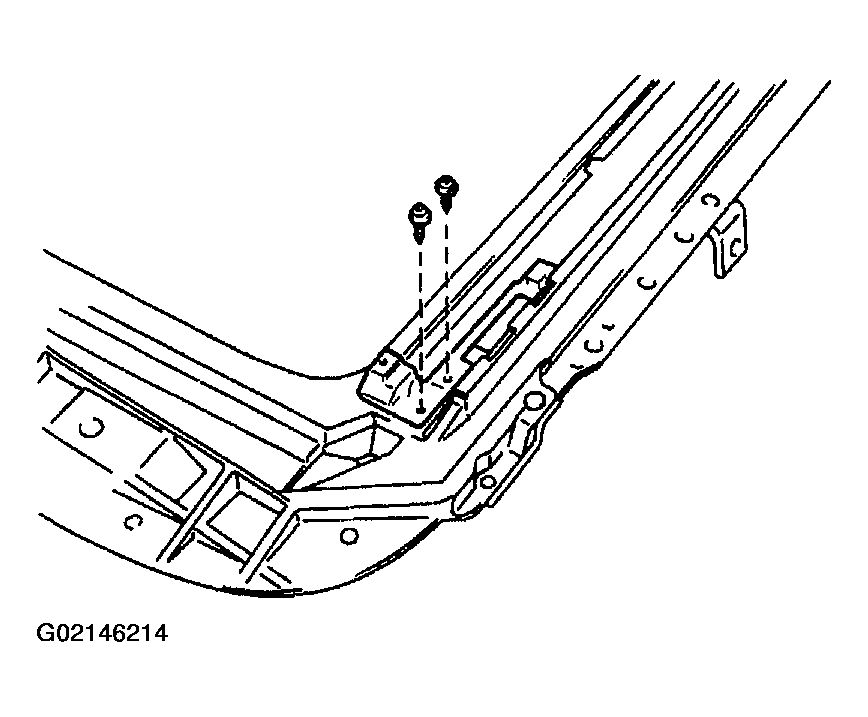

Fig 5: Locating Guide Block Mounting Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove sliding roof housing :
Remove the 6 screws and sliding roof housing.

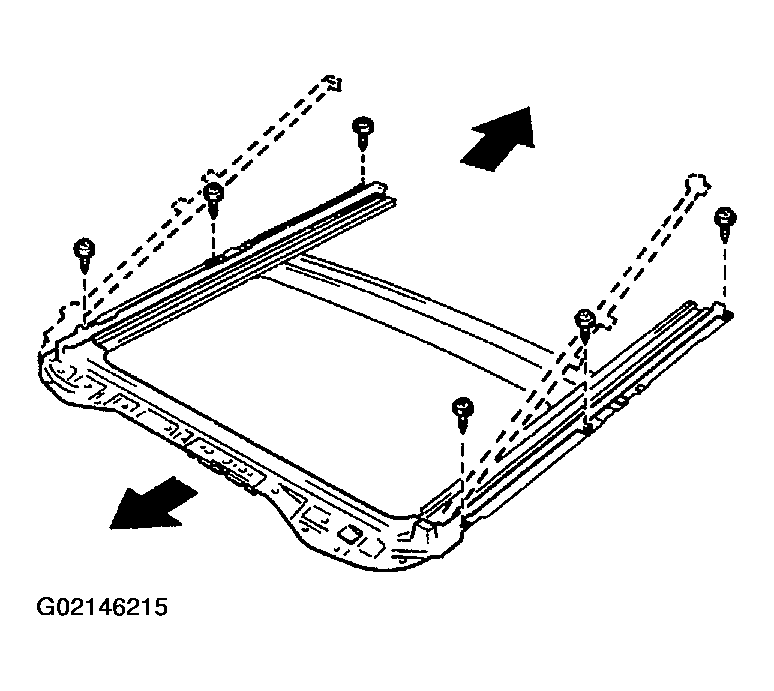

Fig 6: Locating Sliding Roof Housing Mounting Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
