Sliding Roof: Components

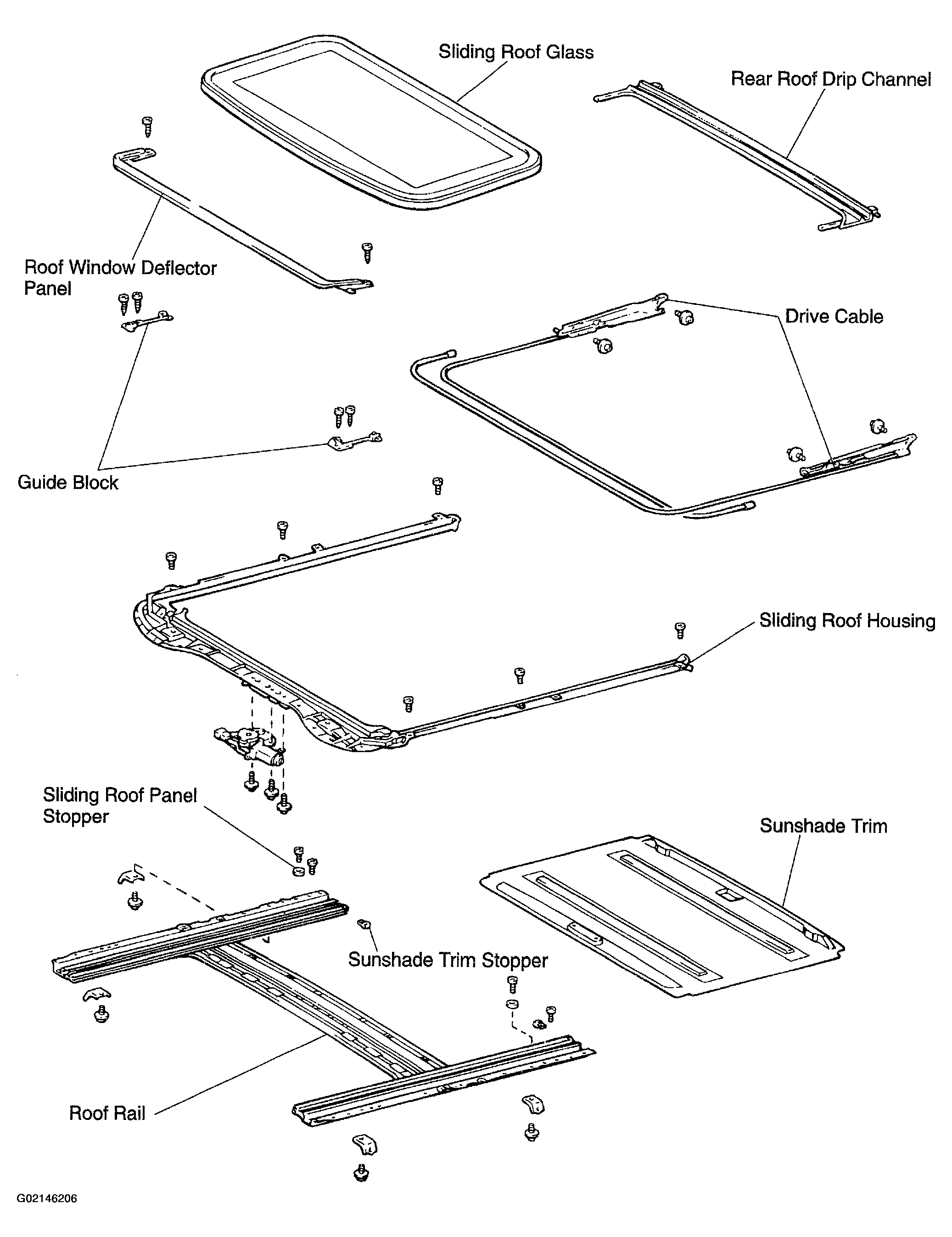

Fig 1: Identifying Sliding Roof Components

G02146206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
