Home >> Toyota >> 2002 >> Corolla LE, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Seat Belt >> Components

Seat Belt: Components

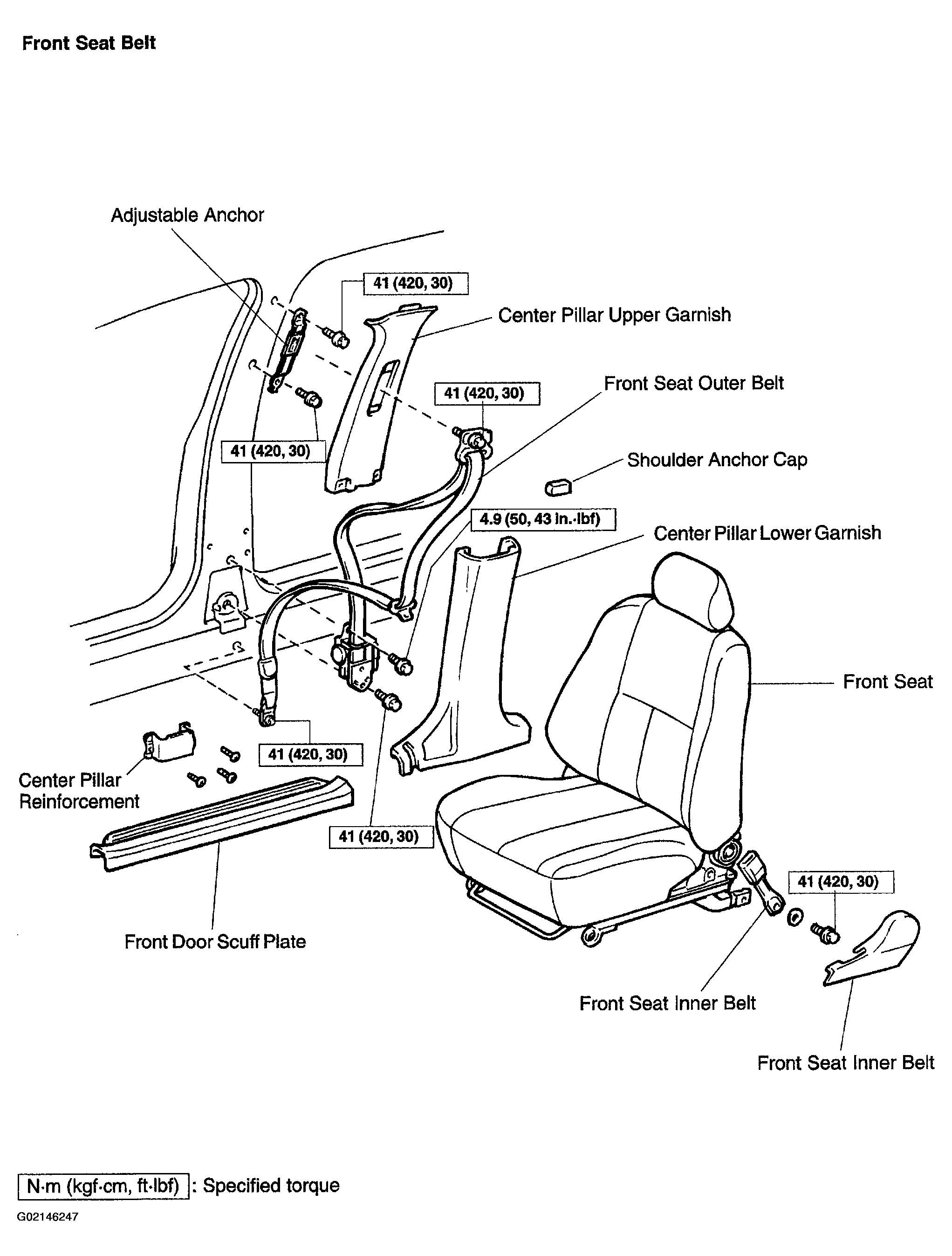

Fig 1: Locating Seat Belt Components (1 Of 2)
G02146247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

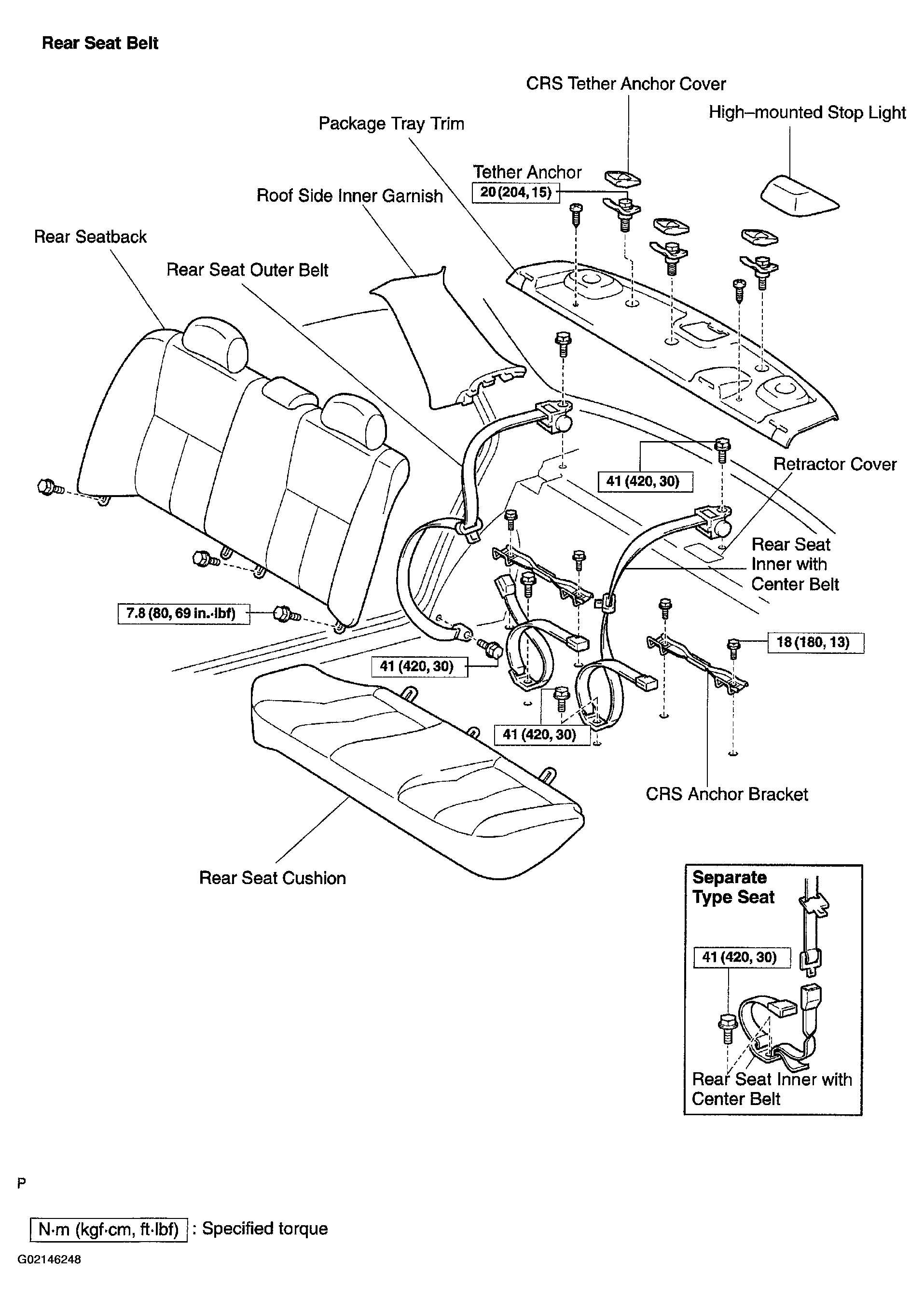

Fig 2: Locating Seat Belt Components (2 Of 2)
G02146248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
