Home >> Toyota >> 2002 >> Corolla LE, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Rear Door >> Components

Rear Door: Components

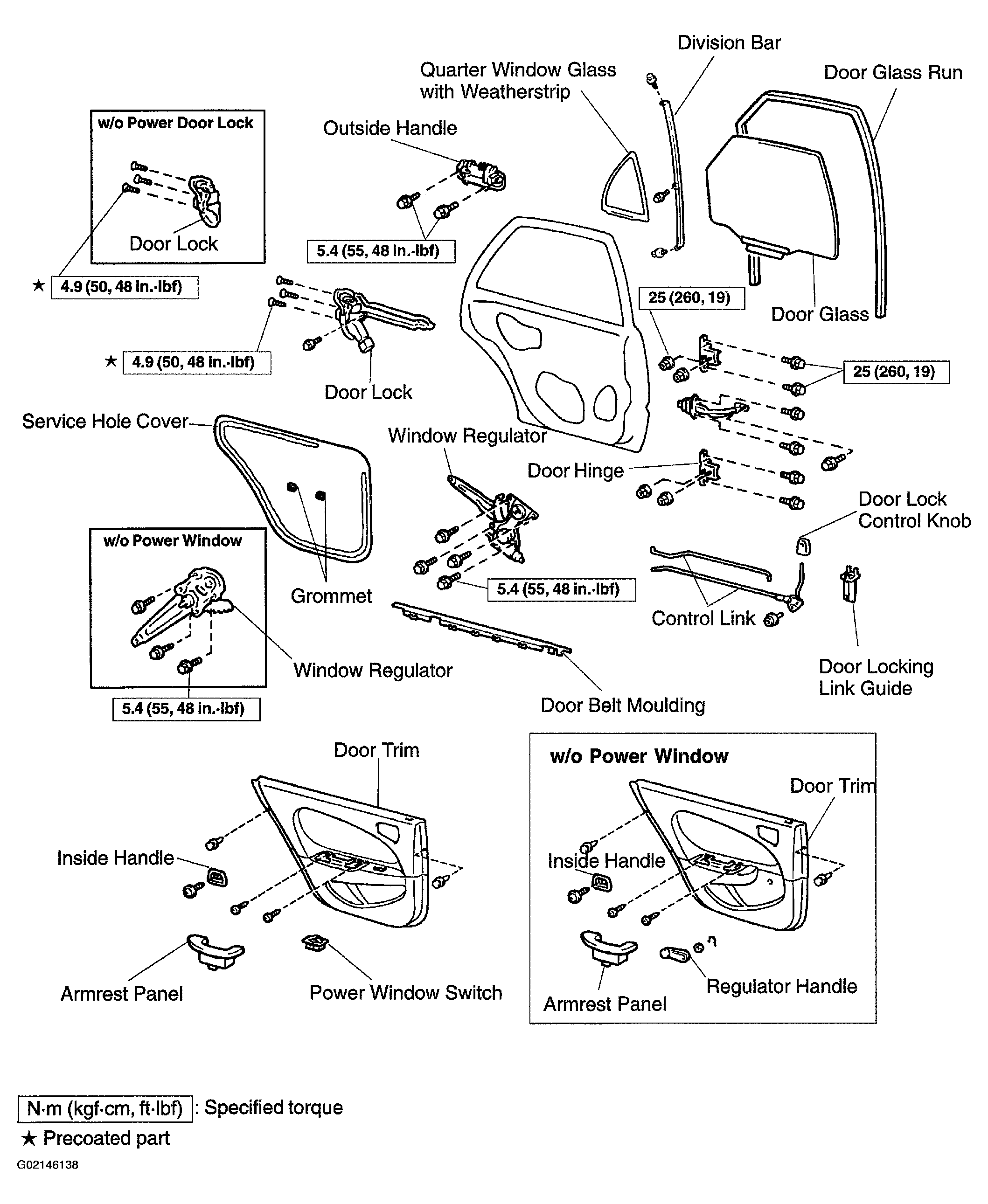

Fig 1: Locating Rear Door Components

G02146138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
