Rear Bumper: Components

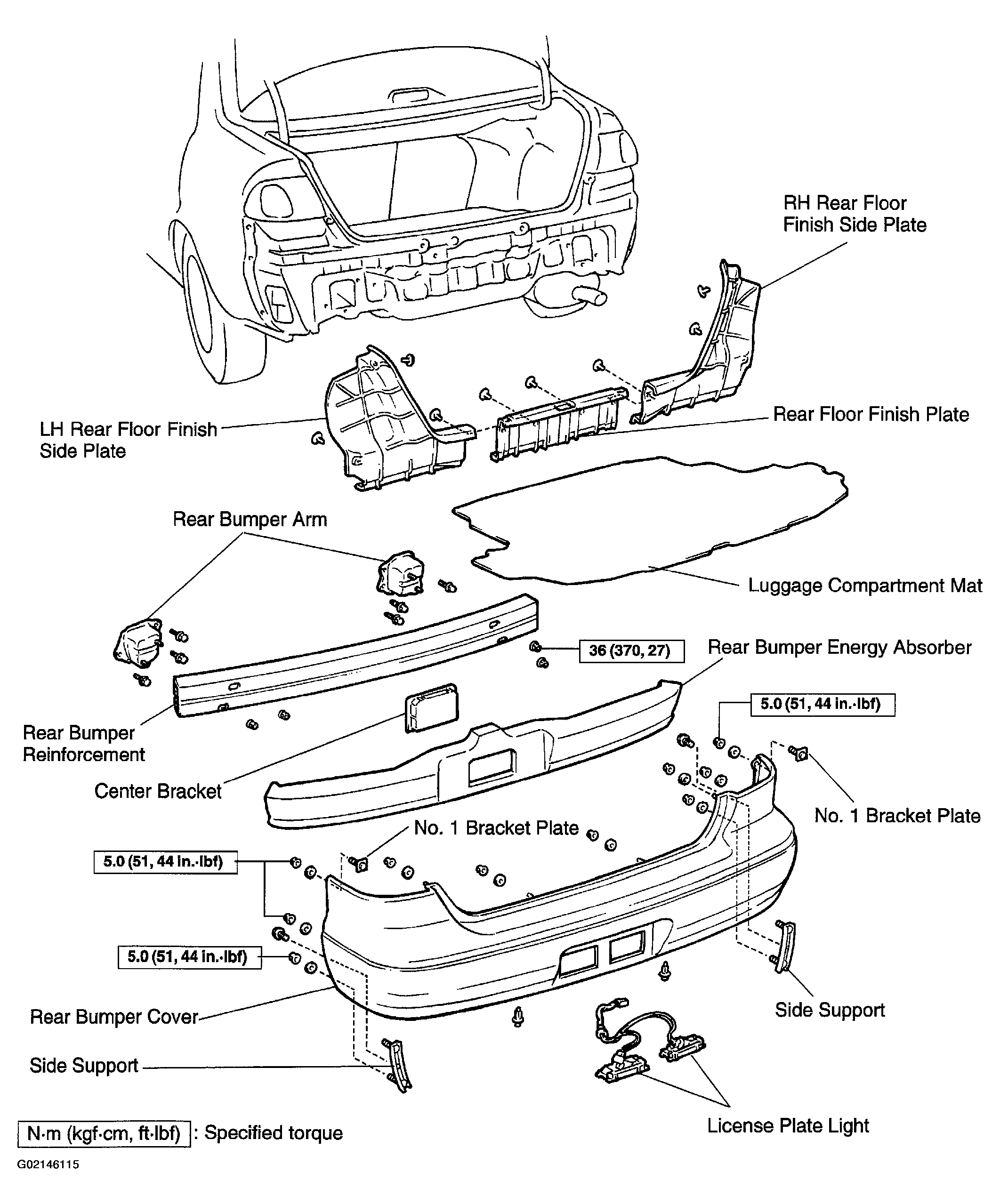

Fig 1: Locating Rear Bumper Components

G02146115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
