Exterior/Interior Trim: Headlight: Removal

Remove front bumper cover. See FRONT BUMPER .
Remove headlight :
1. Remove the screw.
2. Disconnect the connector, then remove the turn signal light.
3. Remove the 2 bolts and nut.

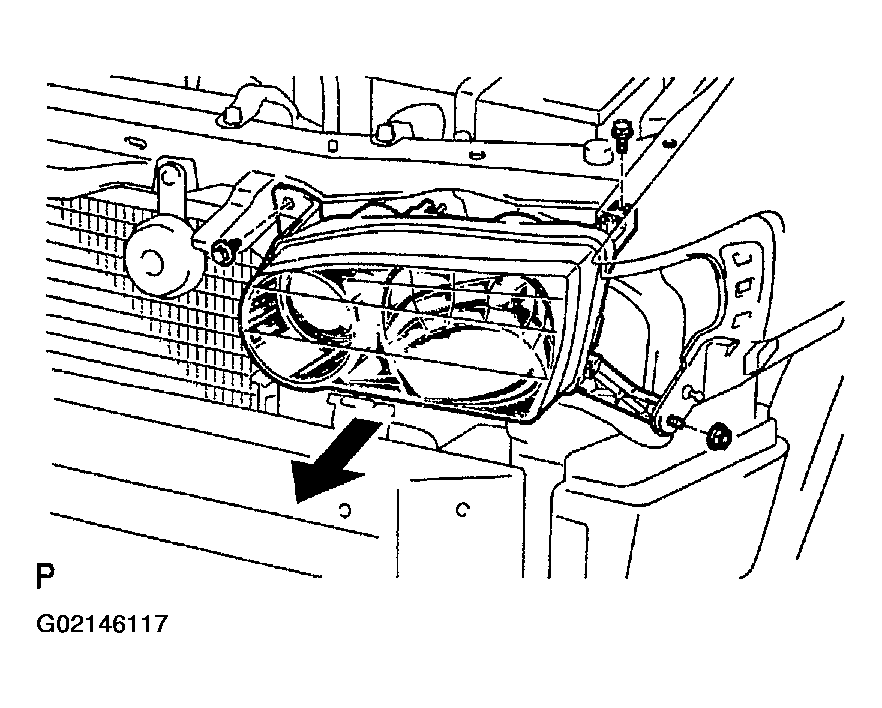

  Fig 1: Locating Headlight Mounting Bolts & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the connectors, then remove the headlight.
5. Employ the same manner described above to the other side.
