Exterior/Interior Trim: Headlight: Components

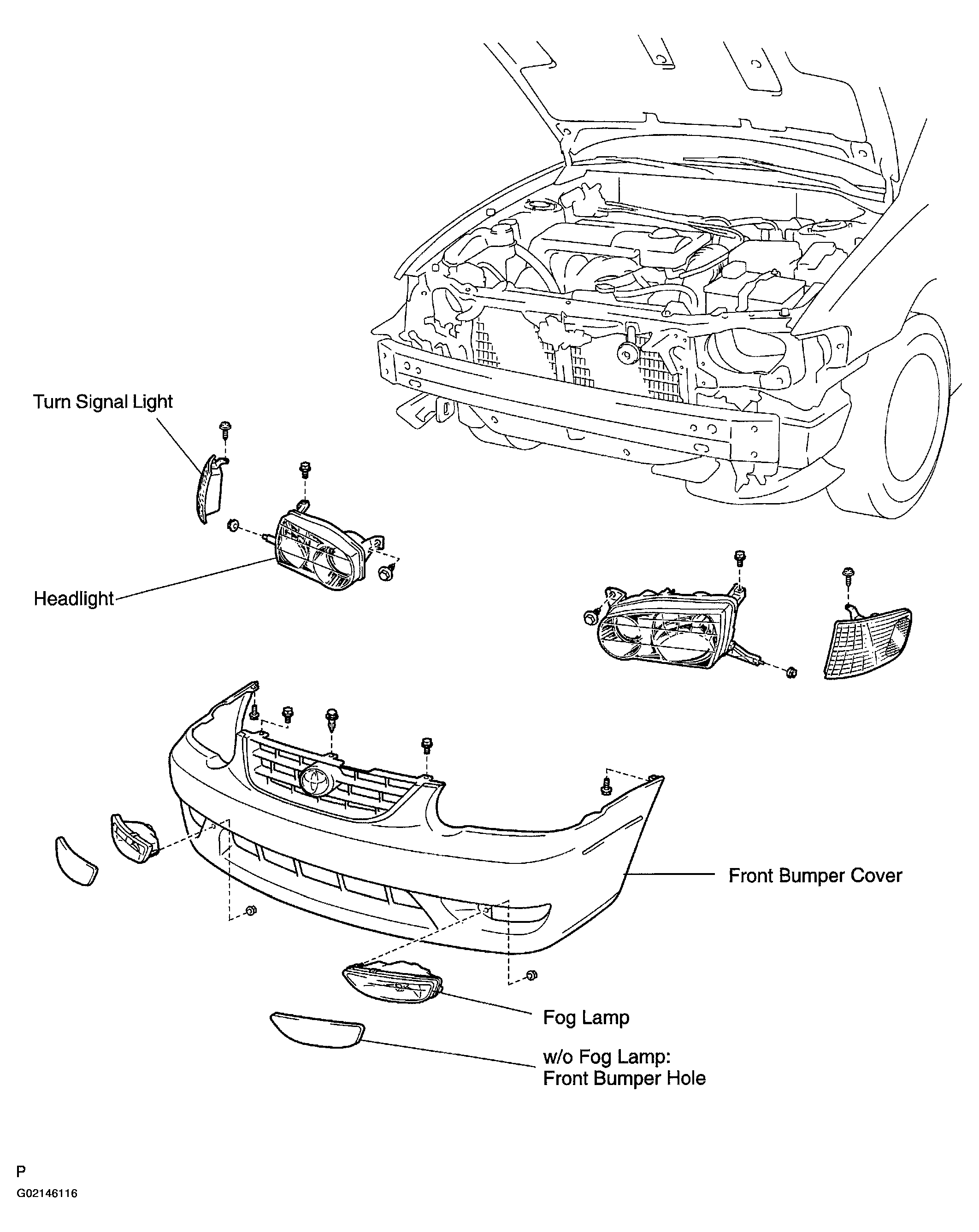

Fig 1: Locating Headlight Components

G02146116

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
