Front Wiper And Washer: Components

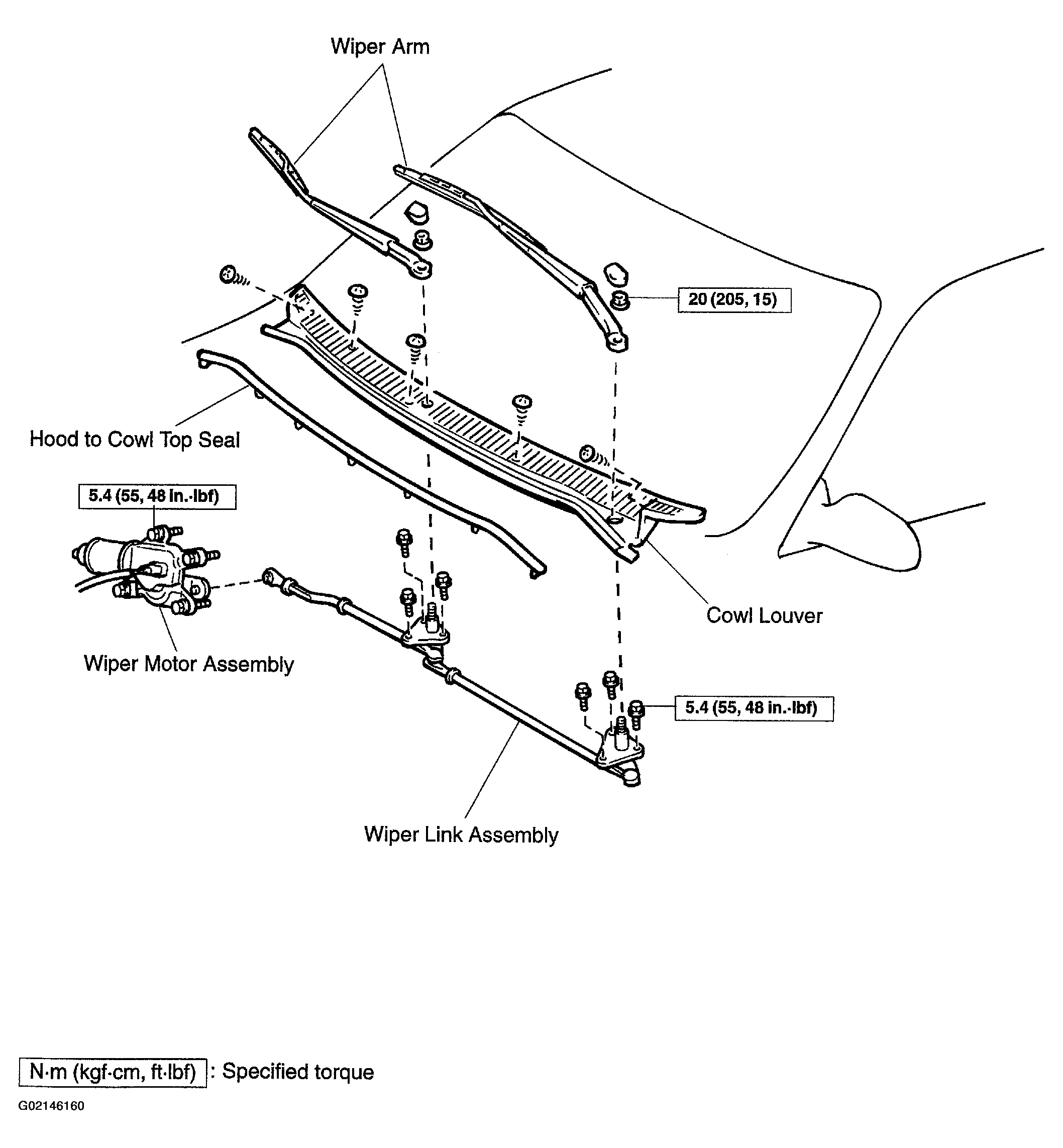

Fig 1: Locating Front Wiper And Washer Components

G02146160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
