Front Seat: Reassembly

  1. Install seat track handle  :

    Install the seat track handle.

    2. NOTE: When installing the connecting pipe with raising up the adjusters, the lock positions adjusted in 2-(a) step slip off then lock error will occur.
  2. Install reclining connecting pipe  :
    1. Adjust the reclining lock positions of the seat adjusters.
    2. Slide the seat adjusters to the most front position.
    3. Place the adjusters on a spacer to adjust the seat rails in parallel and install the connecting pipe.

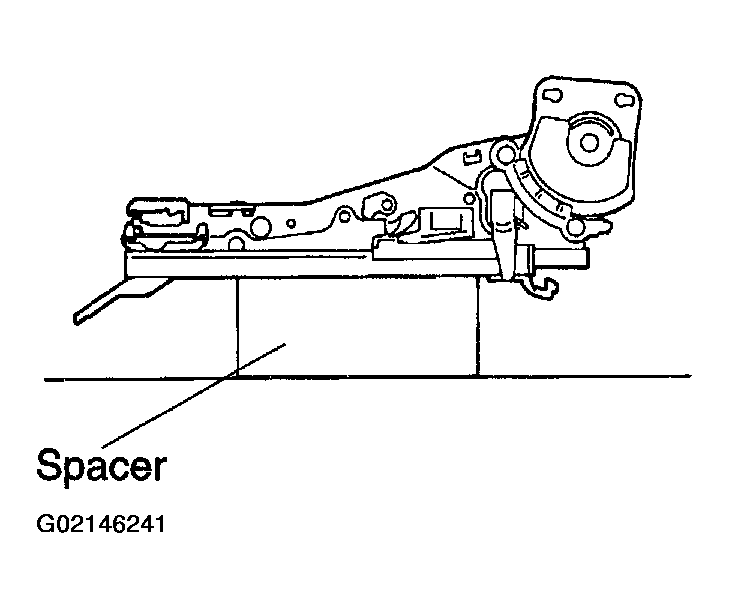

      Fig 1: Identifying Spacer
      G02146241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install seat cushion cover  :
    1. Install the seat cushion cover with new hog rings to seat cushion pad.
      NOTE: Install the hog rings to prevent wrinkles as least as possible.
    2. Install the seat cushion cover with pad to the seat cushion frame with new hog rings.
    4. NOTE: Tighten the 4 bolts temporarily, then from the bolts on the rear side tighten them completely.
  4. Install seat cushion assembly  :

    Install the seat cushion assembly with the 4 bolts to the seat adjuster.

    Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

  5. Install seatback cover  :
    1. Install the seatback cover with new hog rings to the seat-back pad.
    2. Install the seatback cover with pad to the seatback frame with new hog rings.
    3. Install the headrest supports.
    4. W/Side AIRBAG assembly, hang the hook onto the seatback frame.

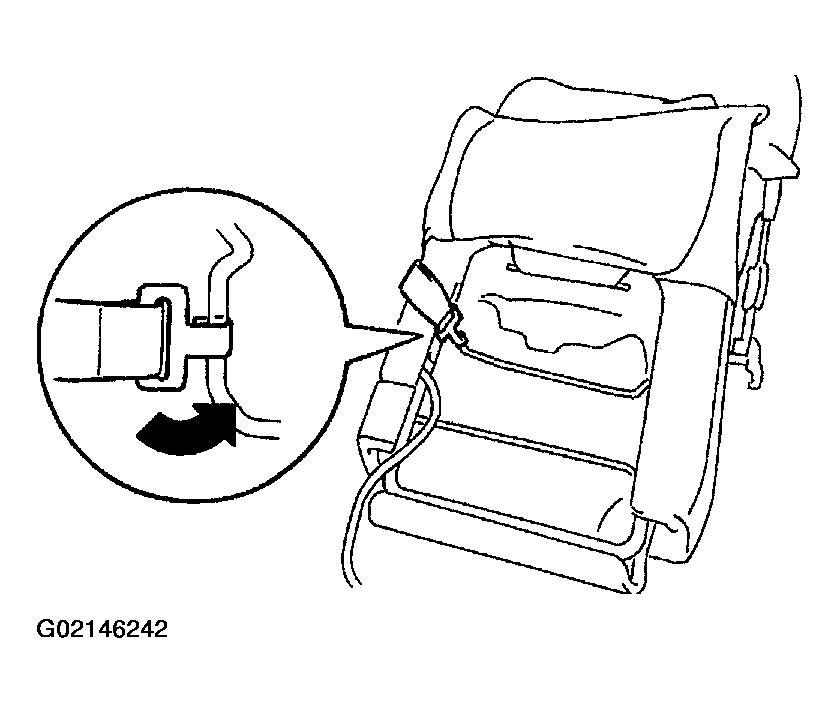

      Fig 2: Locating Seatback Frame Hook (W/Side Airbag)
      G02146242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides, it might cause incorrect deploying.
  6. Install seatback assembly  :
    1. Install the seatback assembly with 4 bolts.
      NOTE: Tighten the 4 bolts temporarily, then from the bolt on the front right side tighten them completely.

      Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

      2. NOTE: Install the hog rings to prevent wrinkles as least as possible.
    2. Install new hog rings.
    3. W/Side AIRBAG assembly, securely fix the side AIRBAG wire harness to seat cushion with the wire harness protector.

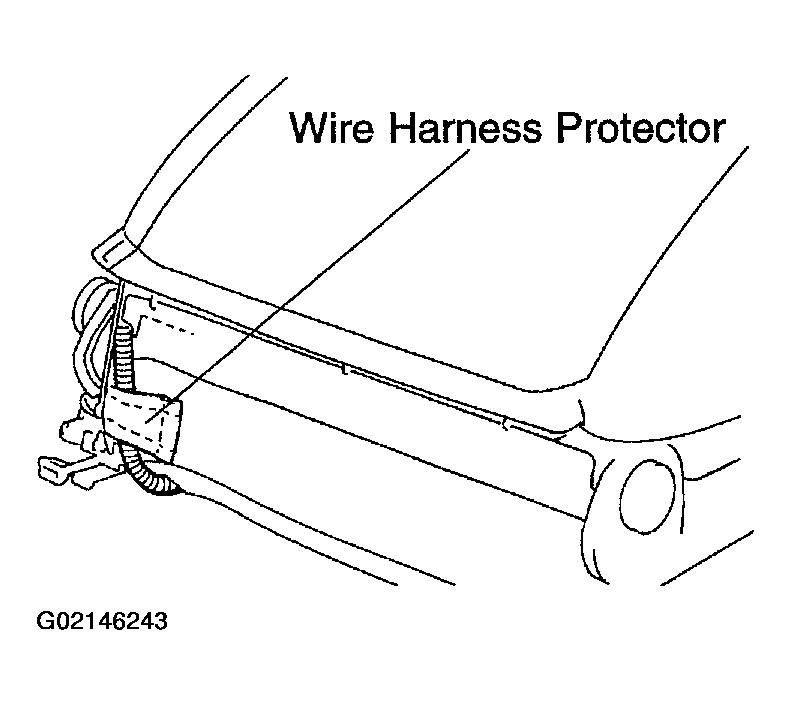

      Fig 3: Locating Side AIRBAG Wire Harness Protector
      G02146243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Install front seat inner belt  :

    Install the front seat inner belt with the bolt.

    Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

  8. Install inner front seat cushion cover  :

    Install the inner front seat cushion cover with the screw.

  9. Install front seat cushion shield  .
  10. Install reclining adjuster release handle  .
  11. Install headrest  .
