Front Seat: Disassembly

  1. Remove headrest  .
  2. Remove reclining adjuster release handle  .
  3. Remove front seat cushion shield  .
  4. Remove inner front seat cushion cover  .

    Remove the screw and inner front seat cushion cover.

  5. Remove front seat inner belt  .

    Remove the bolt and front seat inner belt.

  6. Remove seatback assembly  .
    1. W/Side AIRBAG assembly, remove side AIRBAG wire harness from wire harness protector.

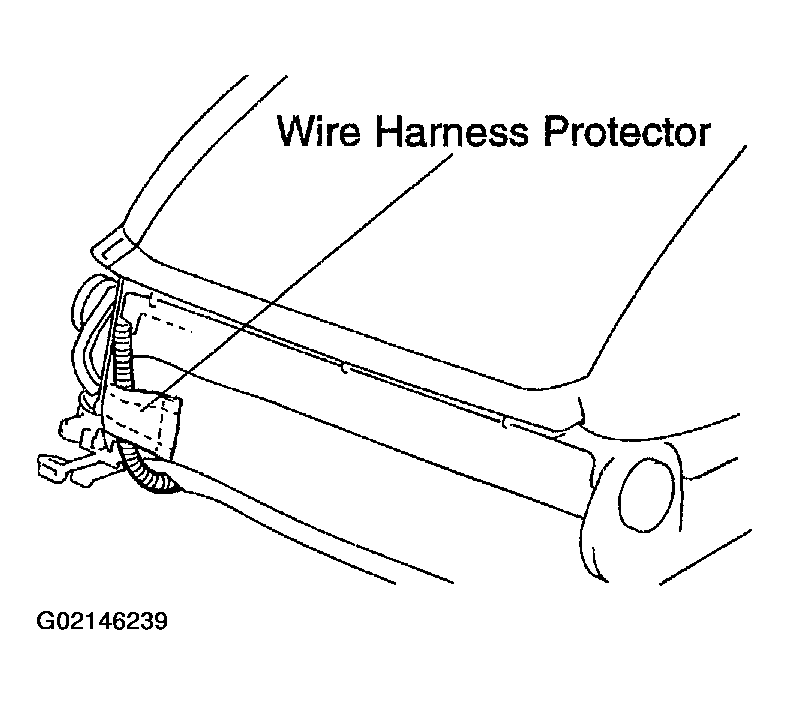

      Fig 1: Locating Side AIRBAG Wire Harness Protector
      G02146239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings.
    3. Remove the 4 bolts and seatback assembly.
  7. Remove seatback cover  :
    1. W/Side AIRBAG assembly, Remove the hook from the seatback frame.

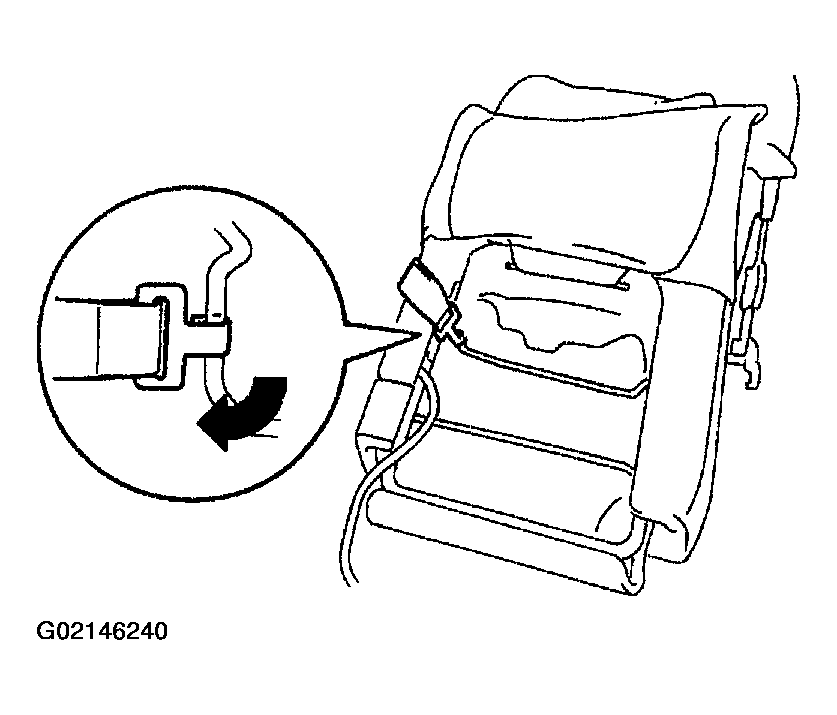

      Fig 2: Locating Seatback Frame Hook (W/Side AIRBAG)
      G02146240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the headrest supports.
    3. Remove the seatback frame from the seatback cover with pad.
    4. Remove the seatback cover from the seatback pad.
  8. Remove seat cushion assembly

    Remove the 4 bolts and seat cushion assembly from the seat adjuster.

  9. Remove seat cushion cover  :
    1. Remove the hog rings and seat cushion frame.
    2. Remove the hog rings and seat cushion cover from the seat cushion pad.
  10. Remove reclining connecting pipe  :

    Remove the reclining connecting pipe.

  11. Remove seat track handle  :

    Remove the seat track handle.
