Front Door: Components

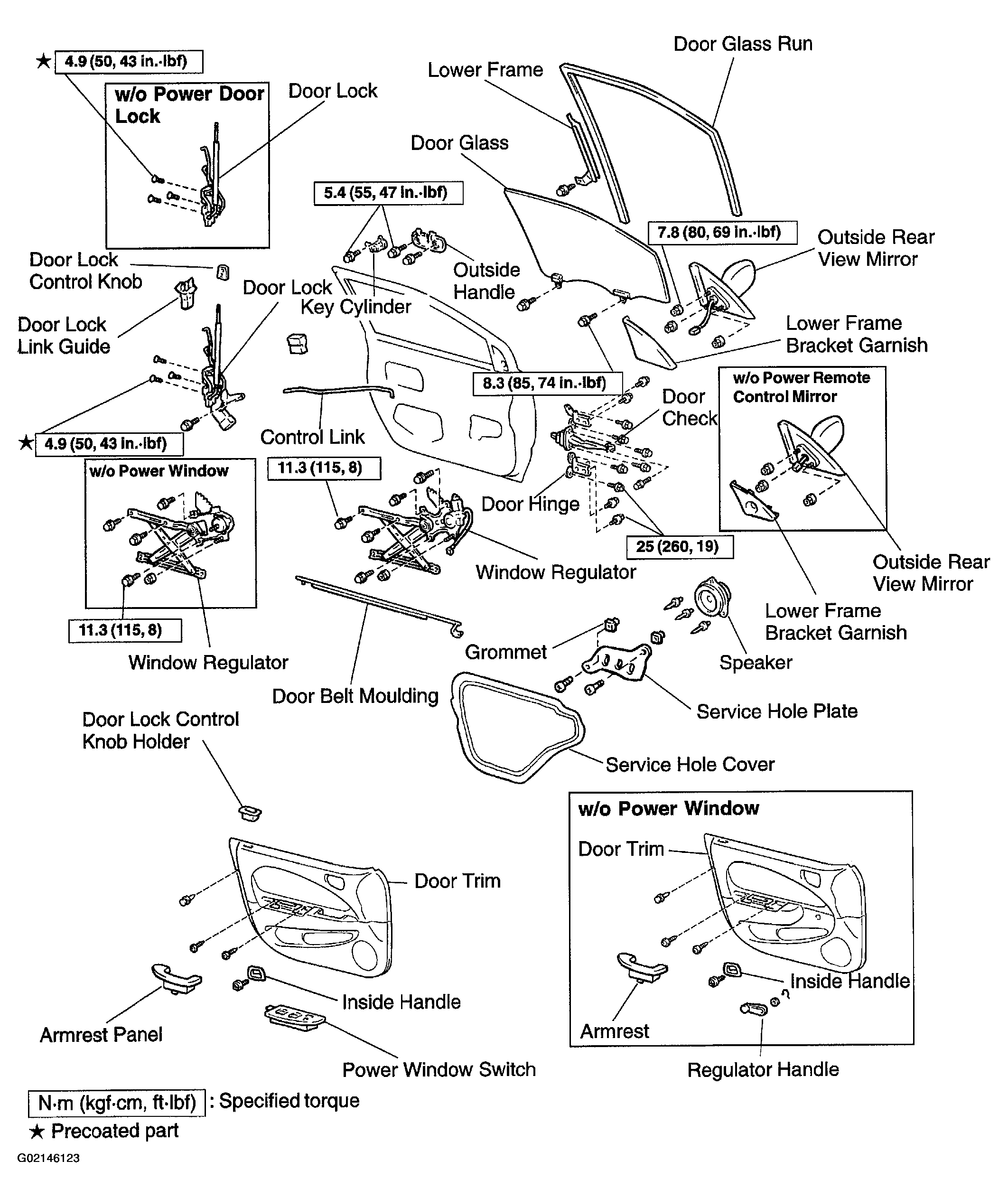

Fig 1: Locating Front Door Components

G02146123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
