Home >> Toyota >> 2002 >> Corolla LE, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Front Bumper >> Components

Front Bumper: Components

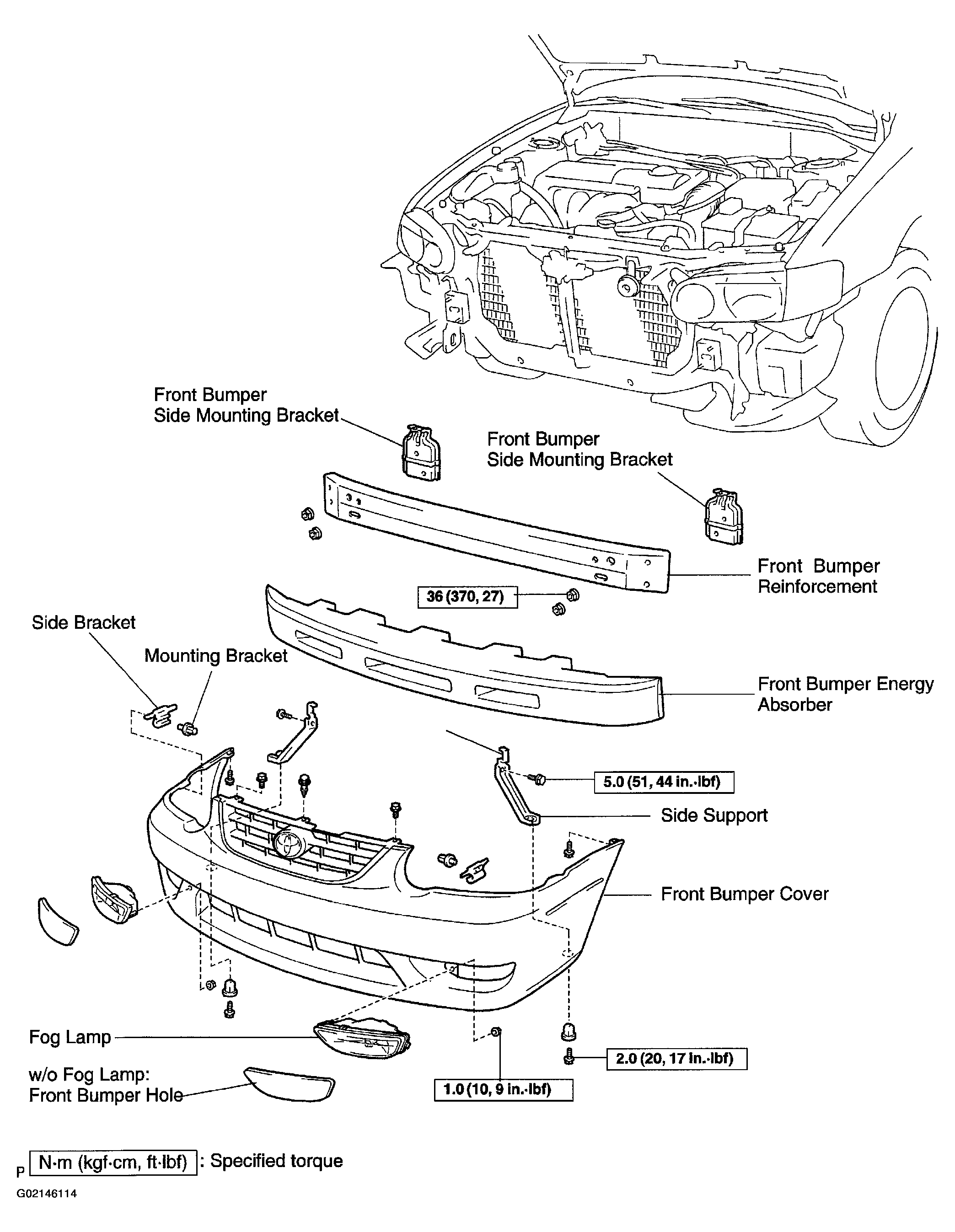

Fig 1: Locating Front Bumper Components

G02146114

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
