Exterior/Interior Trim: Clip: Replacement

The removal and installation methods of typical clips used in body parts are shown below.

NOTE: If the clip is damaged during the operation, always replace it with a new clip.

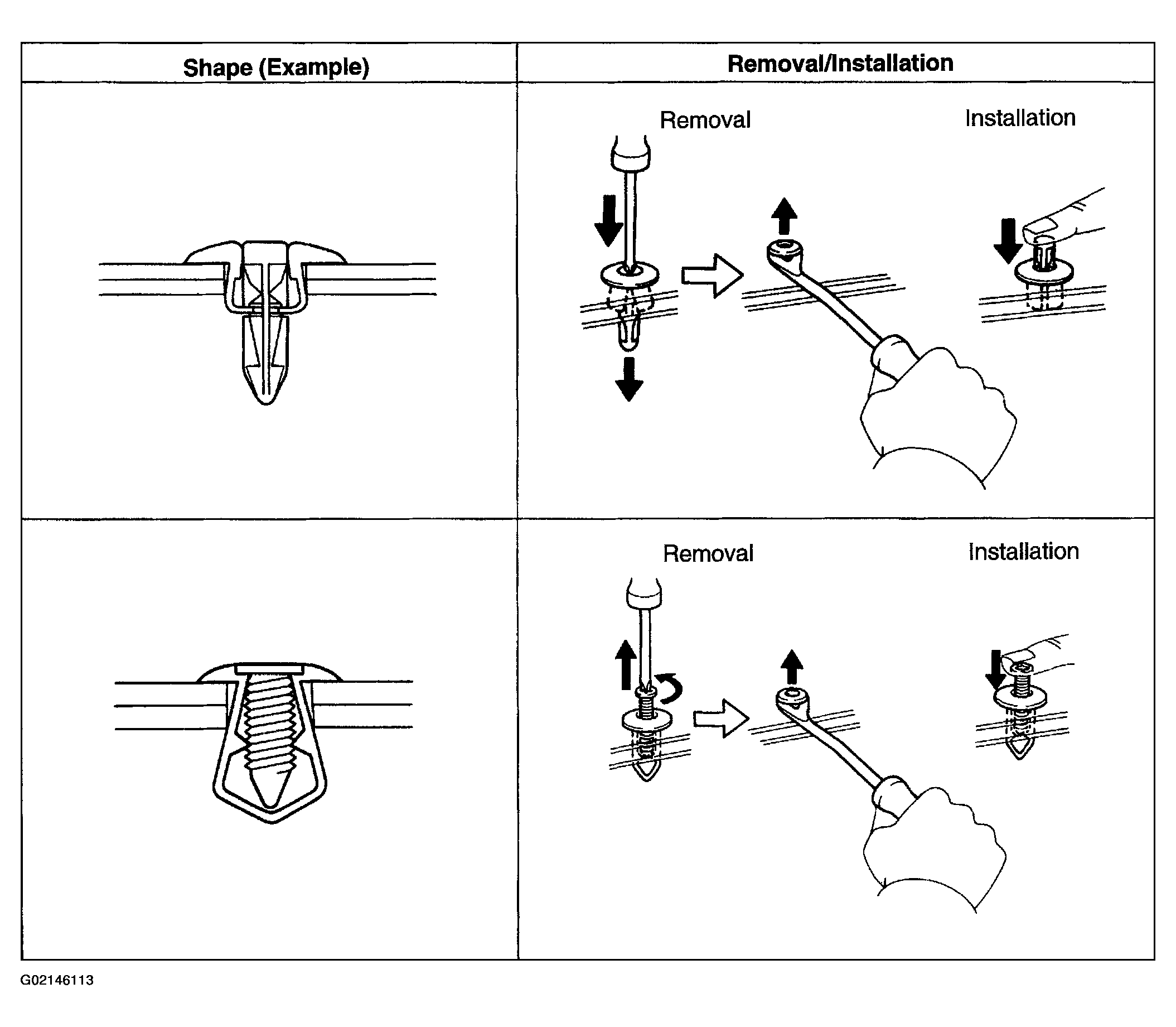

Fig 1: Identifying Clip Installation & Removal Procedure (1 Of 2)

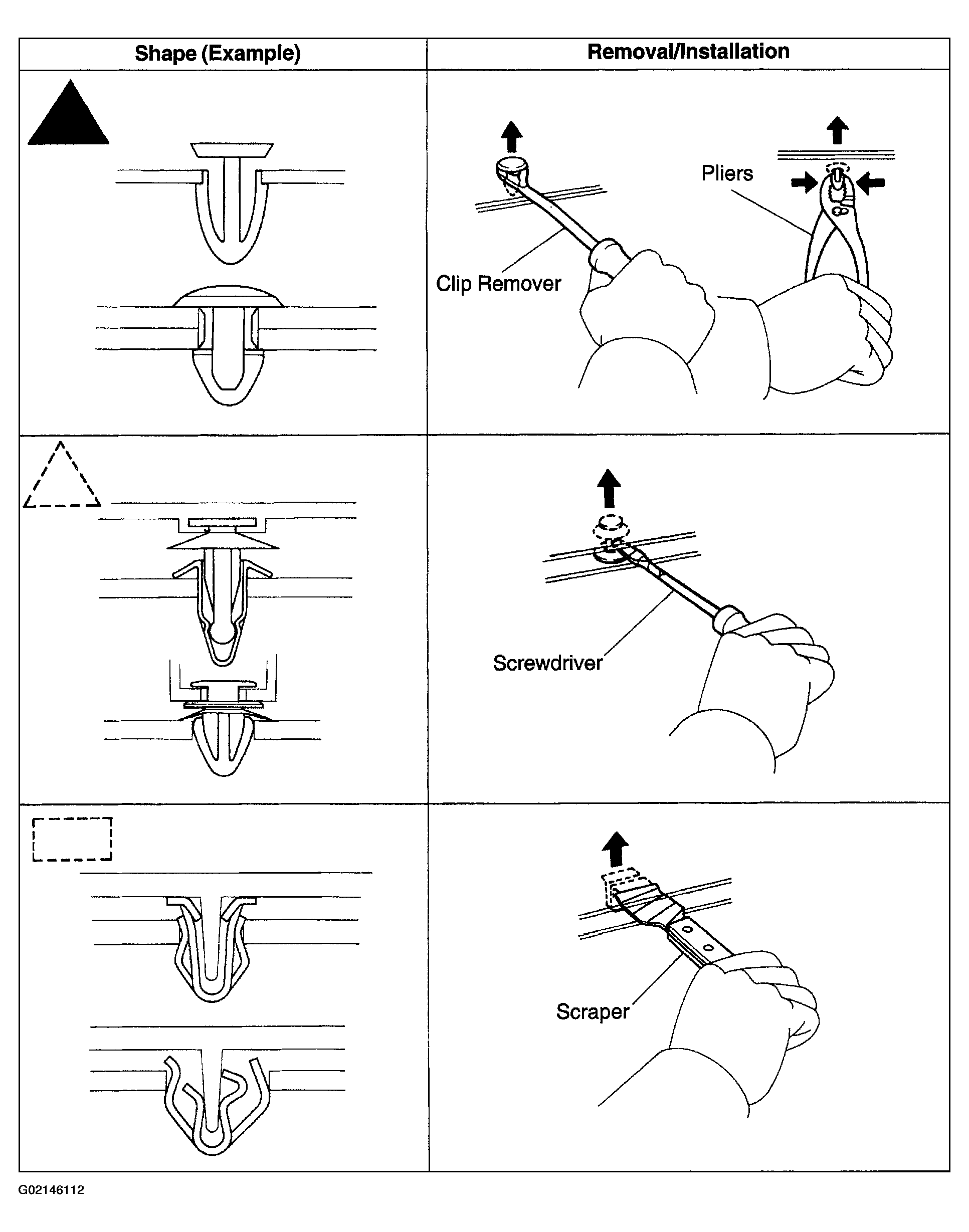

Fig 2: Identifying Clip Installation & Removal Procedure (1 Of 2)
