Repair and Diagnosis
>>
Body & Frame
>>
Exterior/Interior Trim
>>
Back Window Glass
>>
Components
Back Window Glass: Components

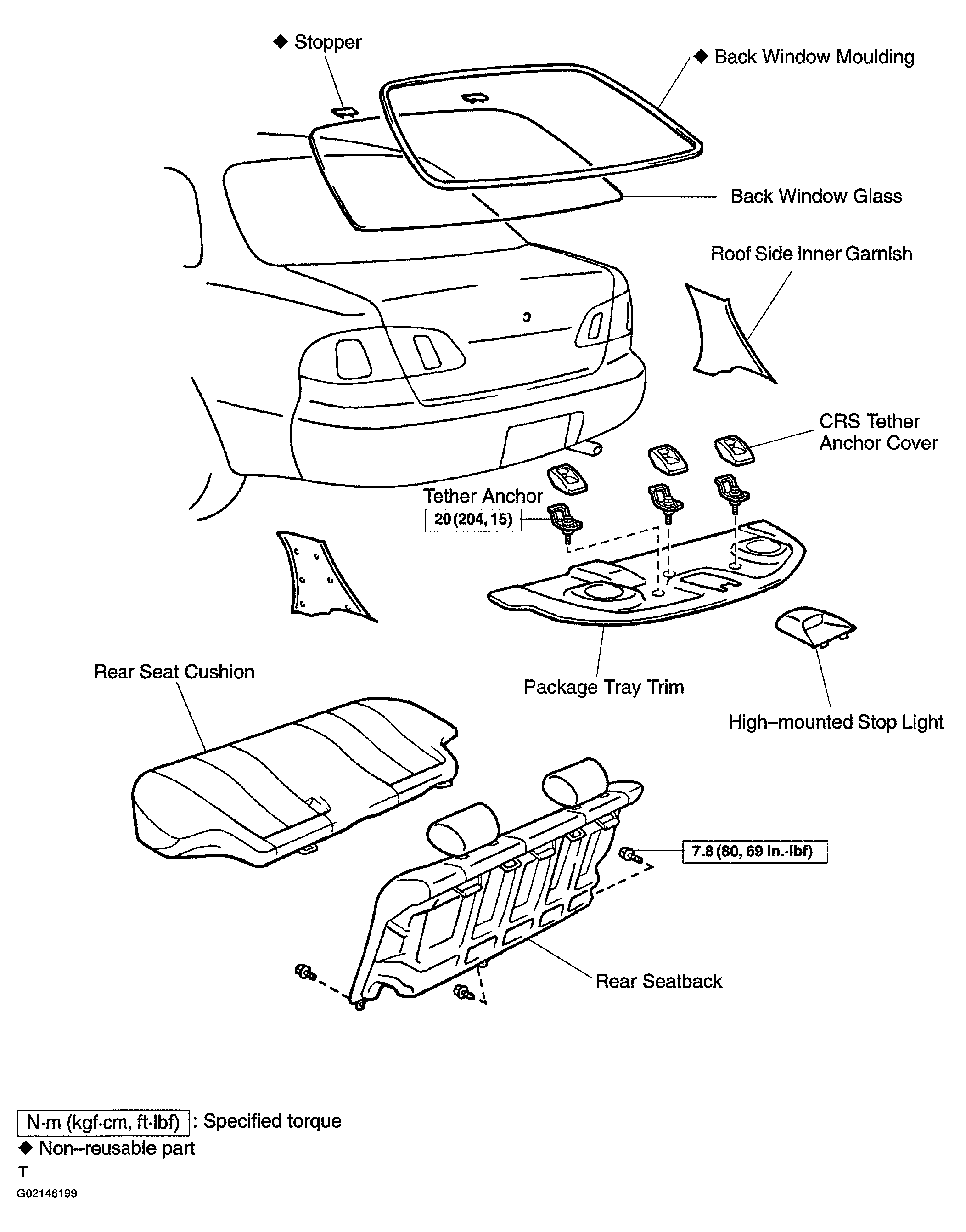

Fig 1: Identifying Back Window Glass Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
