Rear Suspension System: Description

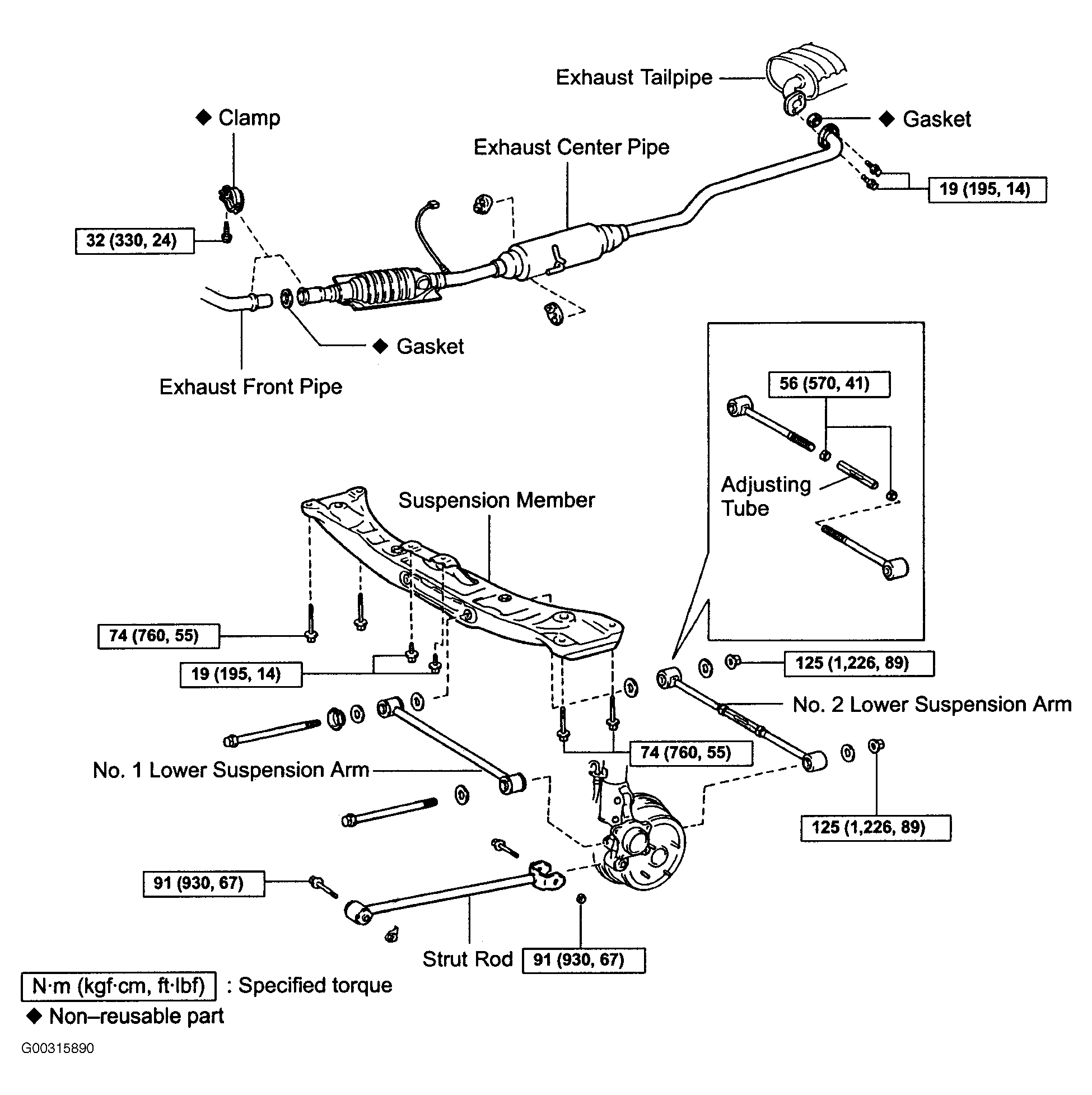

Rear suspension components are strut assemblies or shock absorbers with coil springs, connected between rear axle carrier or lower suspension arm, and vehicle body. Wheel bearing and axle hub is a one piece assembly, bolted to rear axle carrier. See Fig 1.
