Sliding Roof: Removal

Remove roof headlining. See REMOVAL .
Remove sliding roof glass assembly :
1. Using a torx wrench, remove the 4 screws.
2. Pull the glass upward to remove it.

NOTE: At the time of installation, if the sliding roof position and drive gear full close position are not matched, the sliding roof does not operate normally.

NOTE: Remove the drive gear with the sliding roof fully closed.

Remove drive gear :
1. Disconnect the connector.
2. Remove the 3 bolts and drive gear.

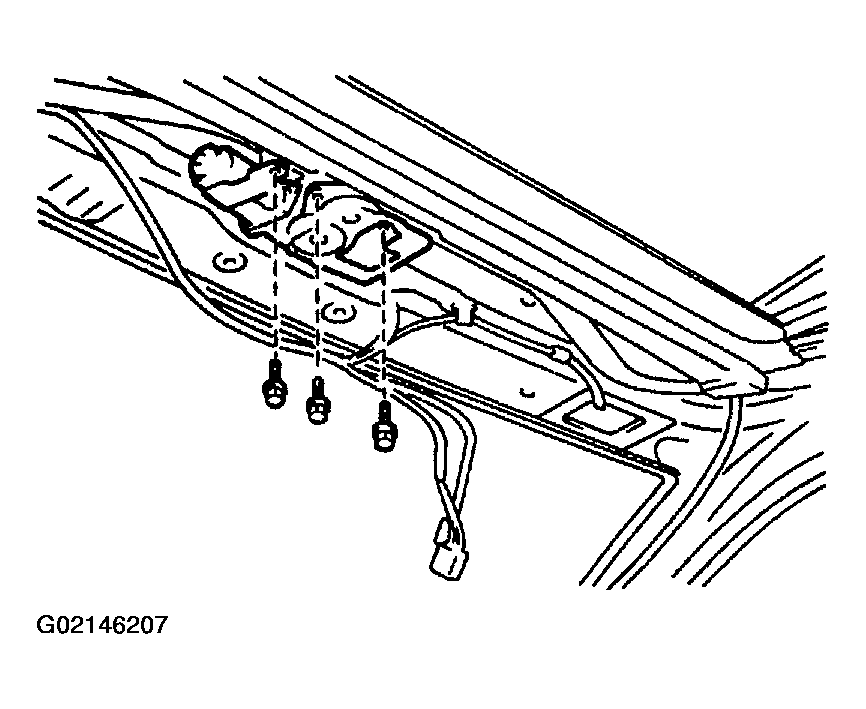

  Fig 1: Locating Drive Gear & Mounting Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the screw and cam plate cover.
4. Turn the drive gear to align the point marks.

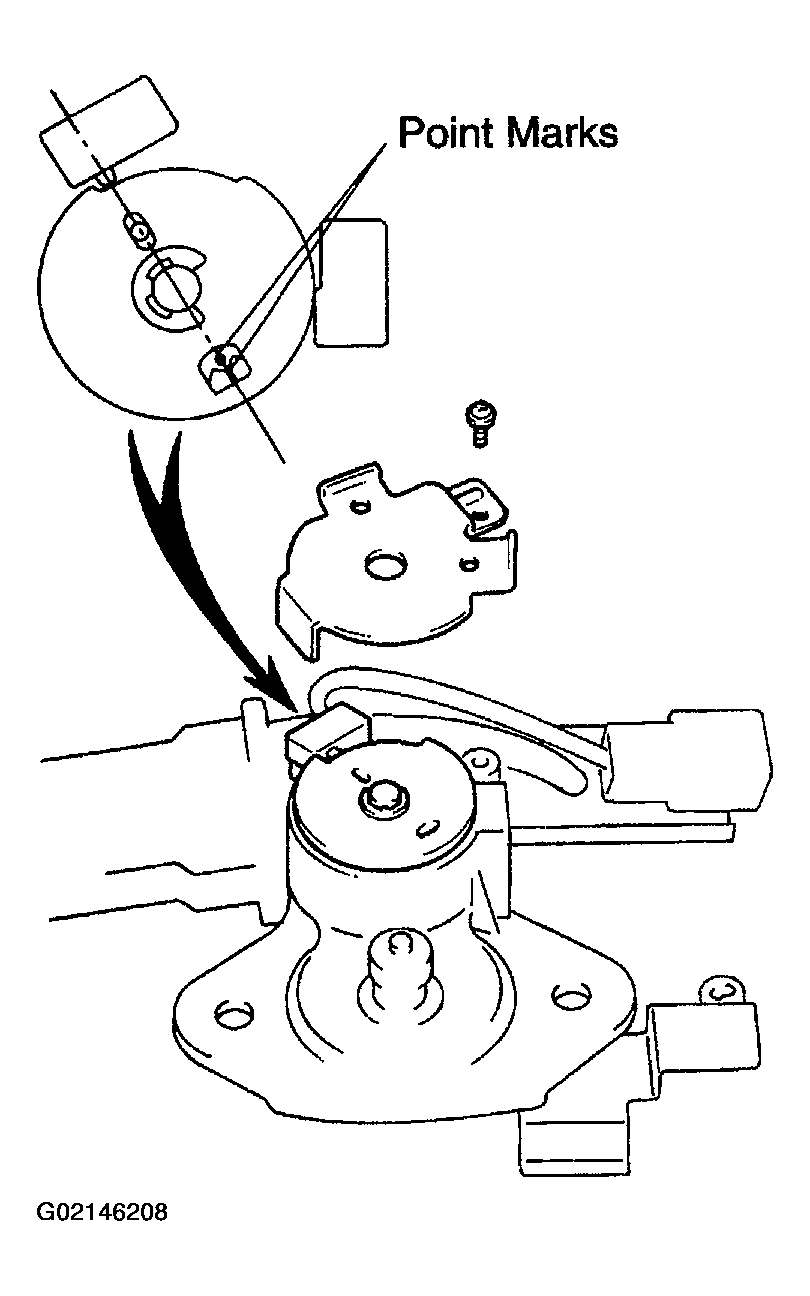

  Fig 2: Aligning Point Marks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the cam plate cover and screw.
Remove sliding roof housing :
1. Disconnect the 4 drain hoses from the housing.
2. Remove the 8 torx screws and 4 brackets.

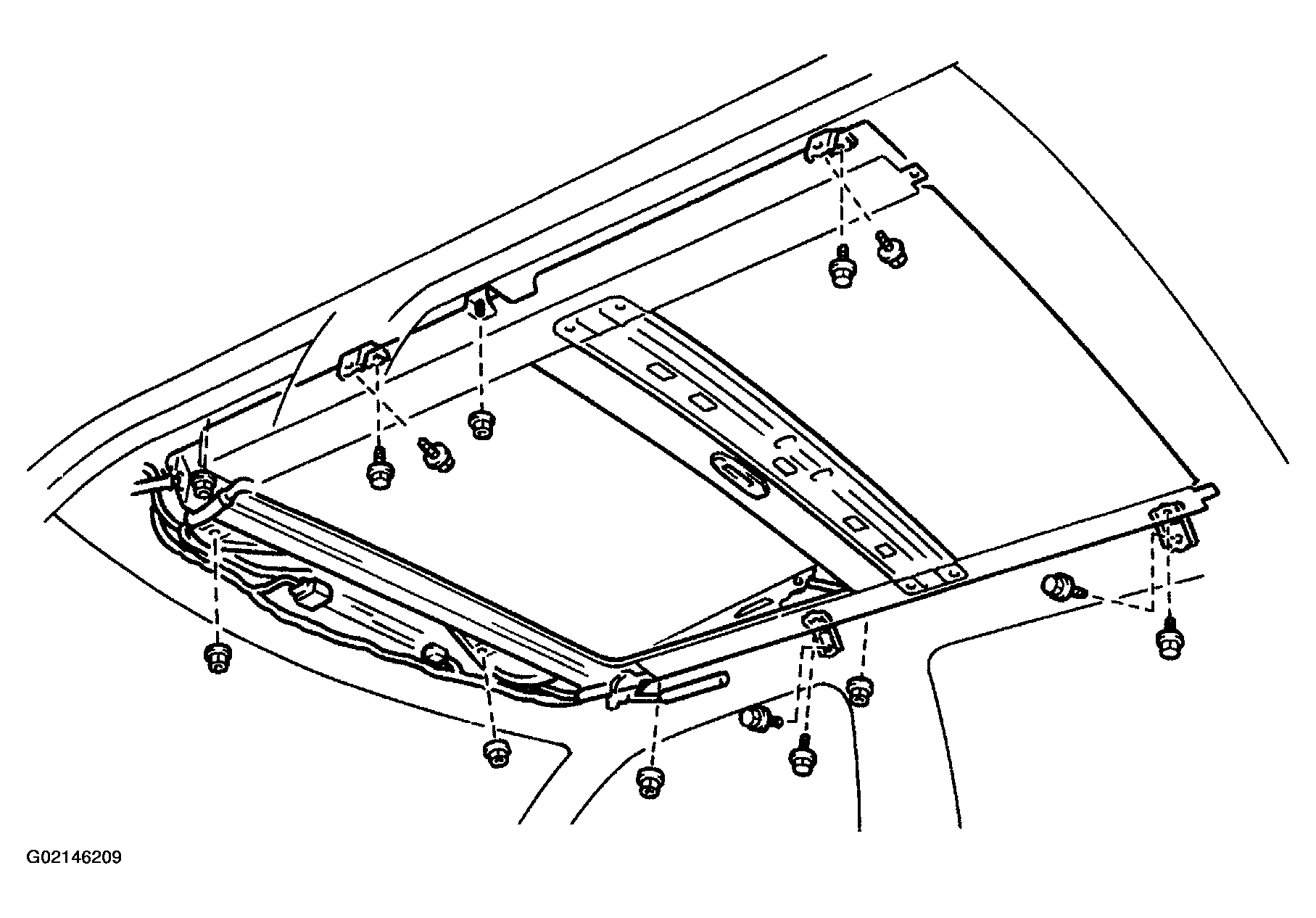

  Fig 3: Locating Brackets, Torx Screws & Bolts Called Out In Step 4
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 nuts, then remove the housing.
