Sliding Roof: Adjustment

To adjust forward or rearward :
1. Using a torx wrench, loosen the sliding roof glass installation screws.
2. Adjust the sliding roof glass forward and rearward.
Difference in left and right clearance:
To adjust clearance :
1. When the front or rear alignment is not correct, remove the drive gear and sliding roof glass, then adjust the drive rail.
  NOTE: Remove the drive gear with sliding roof fully closed.

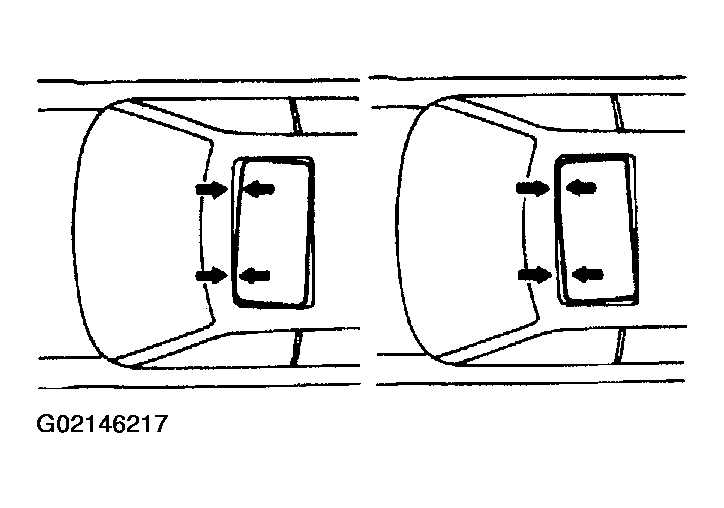

  Fig 1: Identifying Misalignment & Proper Alignment Of Sliding Roof
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust by sliding the cable forward or rearward to align the 2 marks.

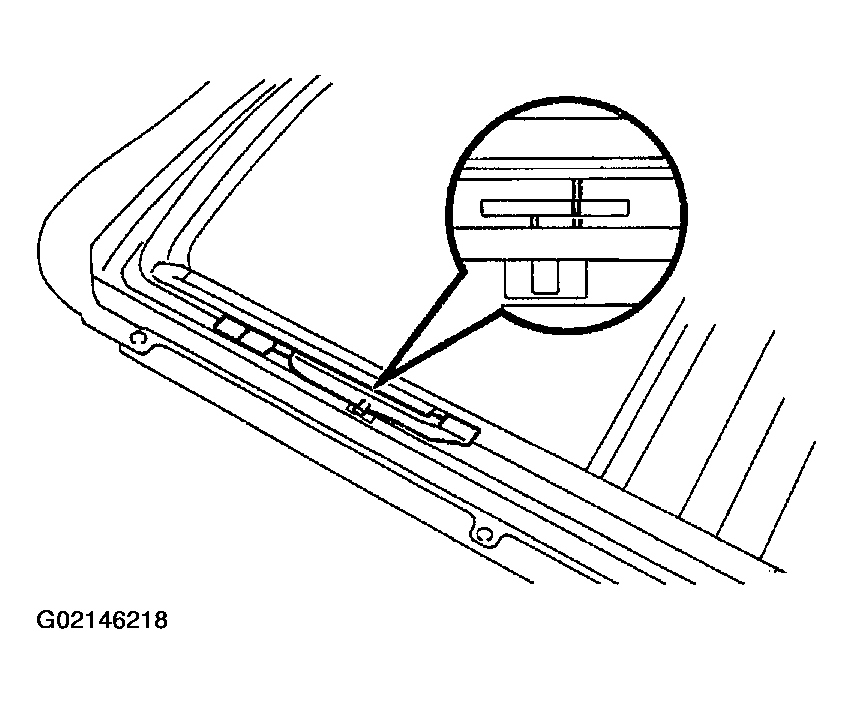

  Fig 2: Locating Cable Alignment Marks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the drive gear and sliding roof glass.
