Timing Chain: Components

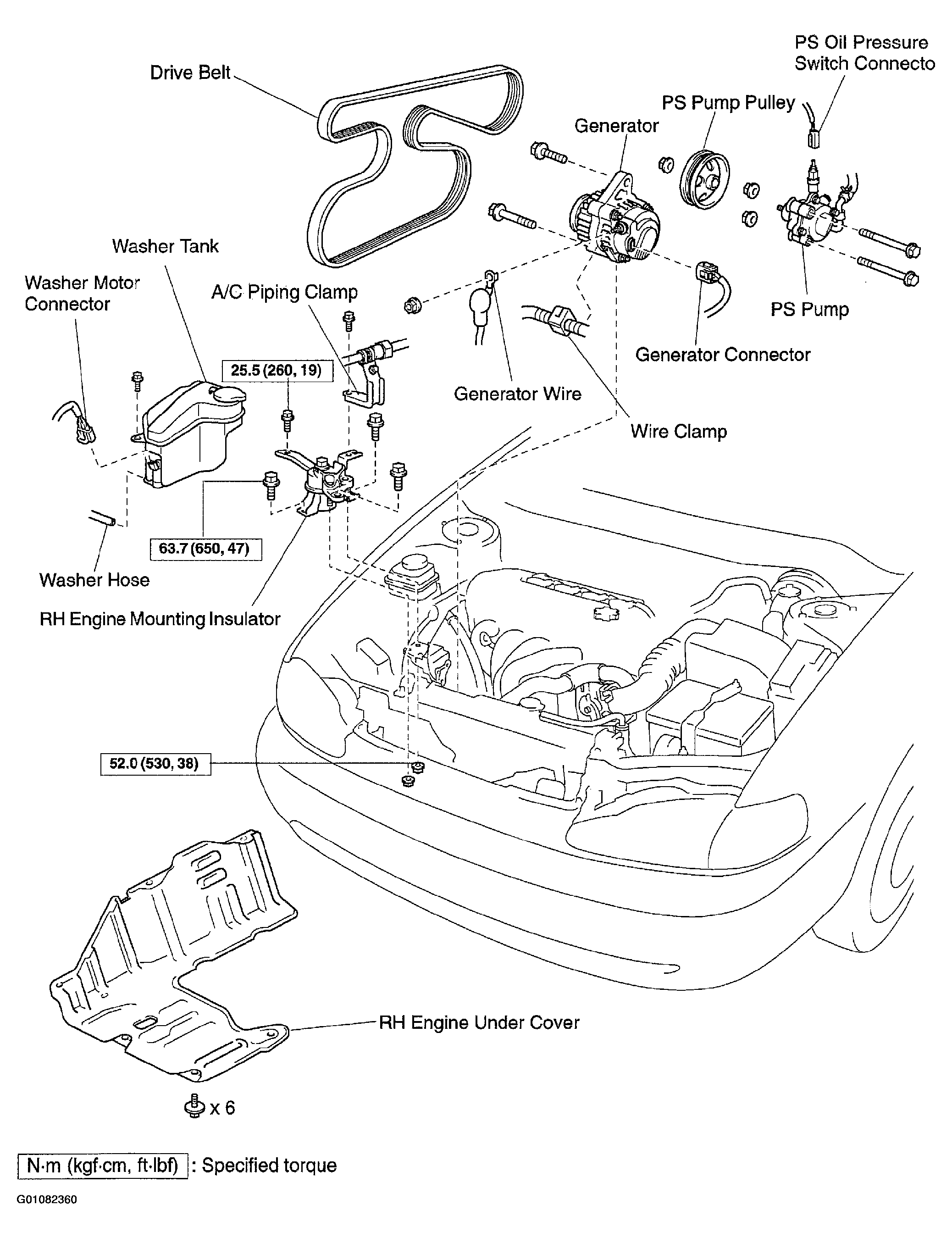

Fig 1: Locating Timing Chain Components (1 Of 2)
G01082360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

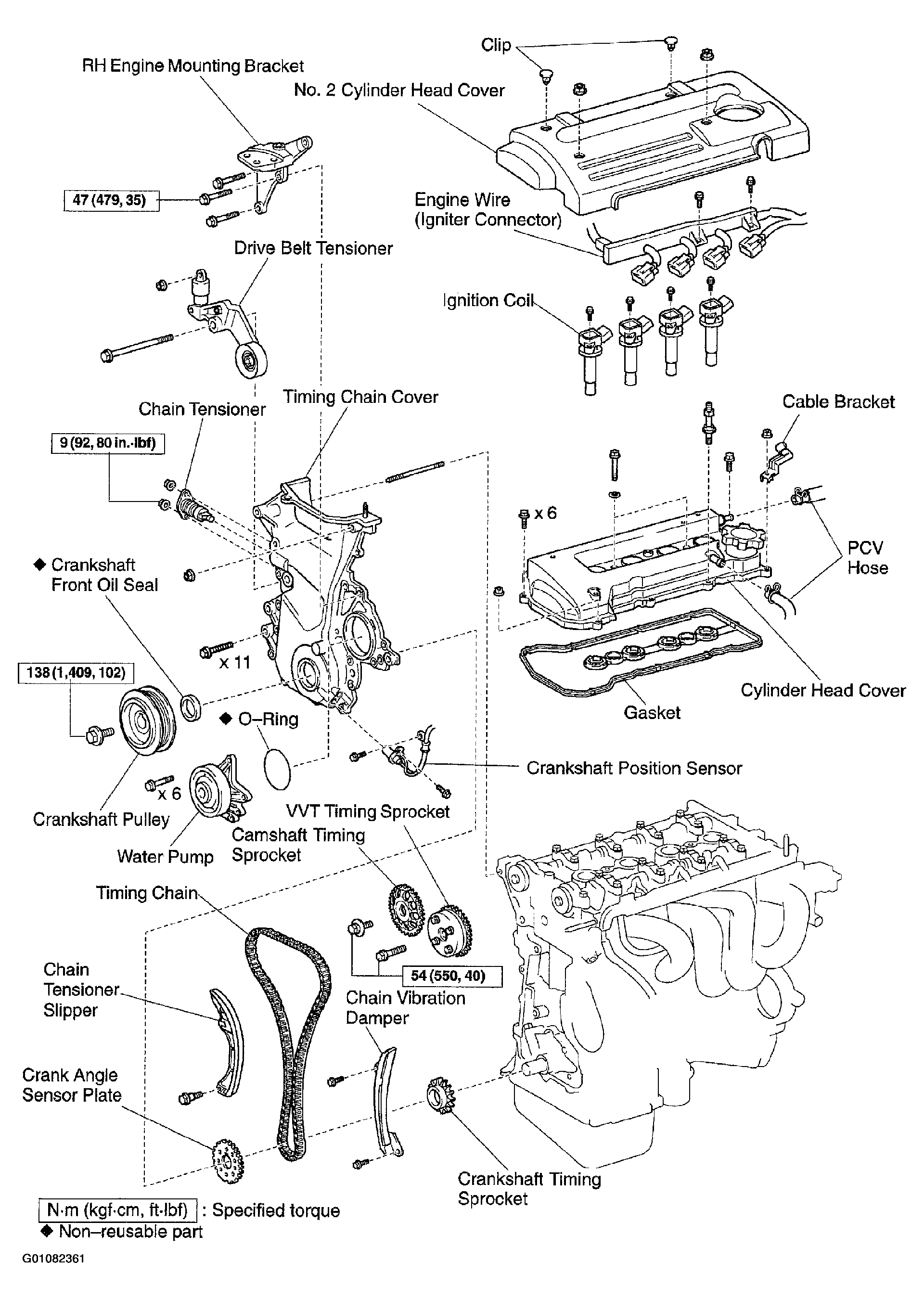

Fig 2: Locating Timing Chain Components (2 Of 2)
G01082361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
