How To Proceed With Troubleshooting: Notes

NOTE: This ECU is connected to the multiplex communication system. Therefore, be sure to check that there is no troubles in the multiplex communication system before performing the trouble shooting.

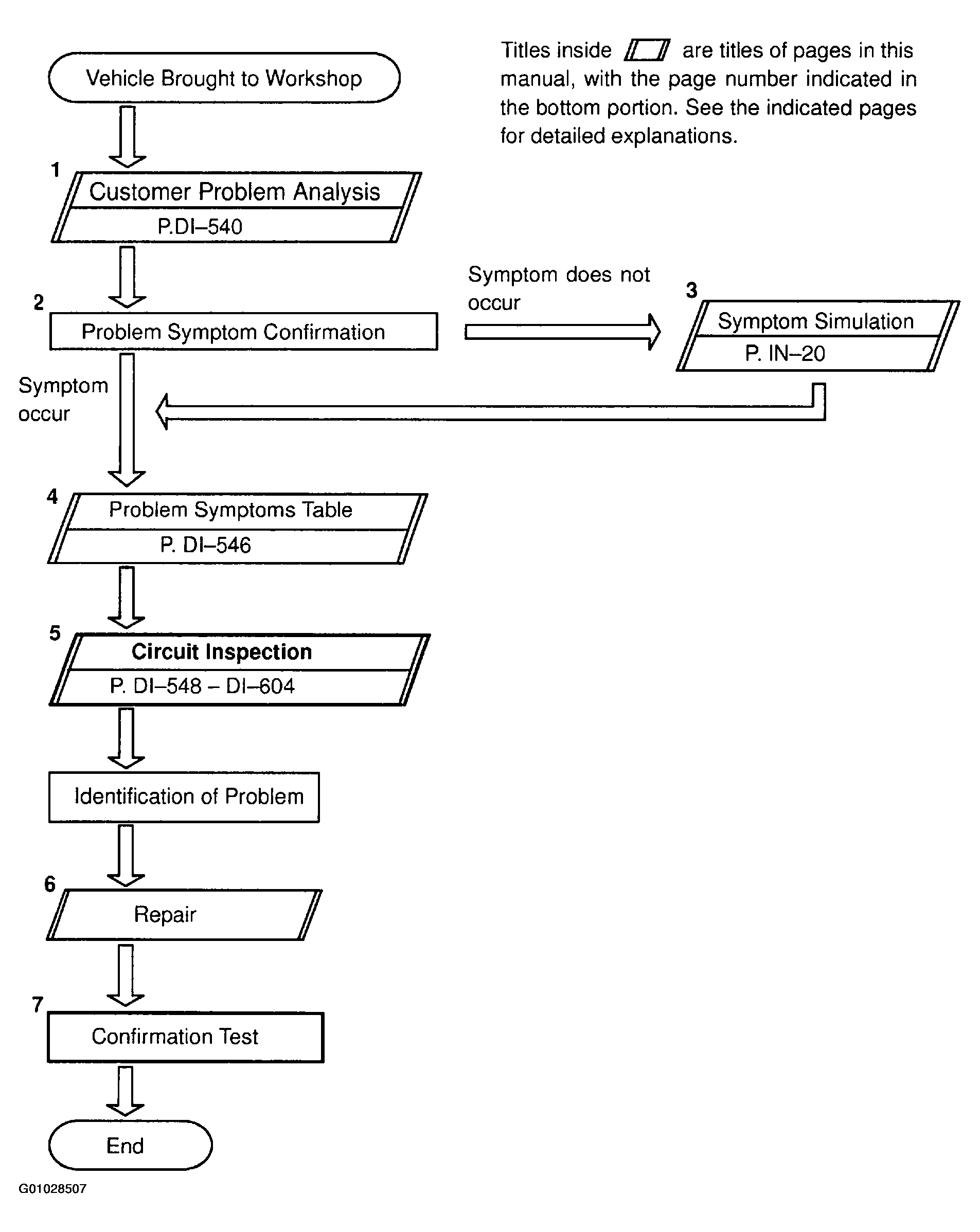

Fig 1: Troubleshooting Flow Chart
