Front Power Seat Control System: Location

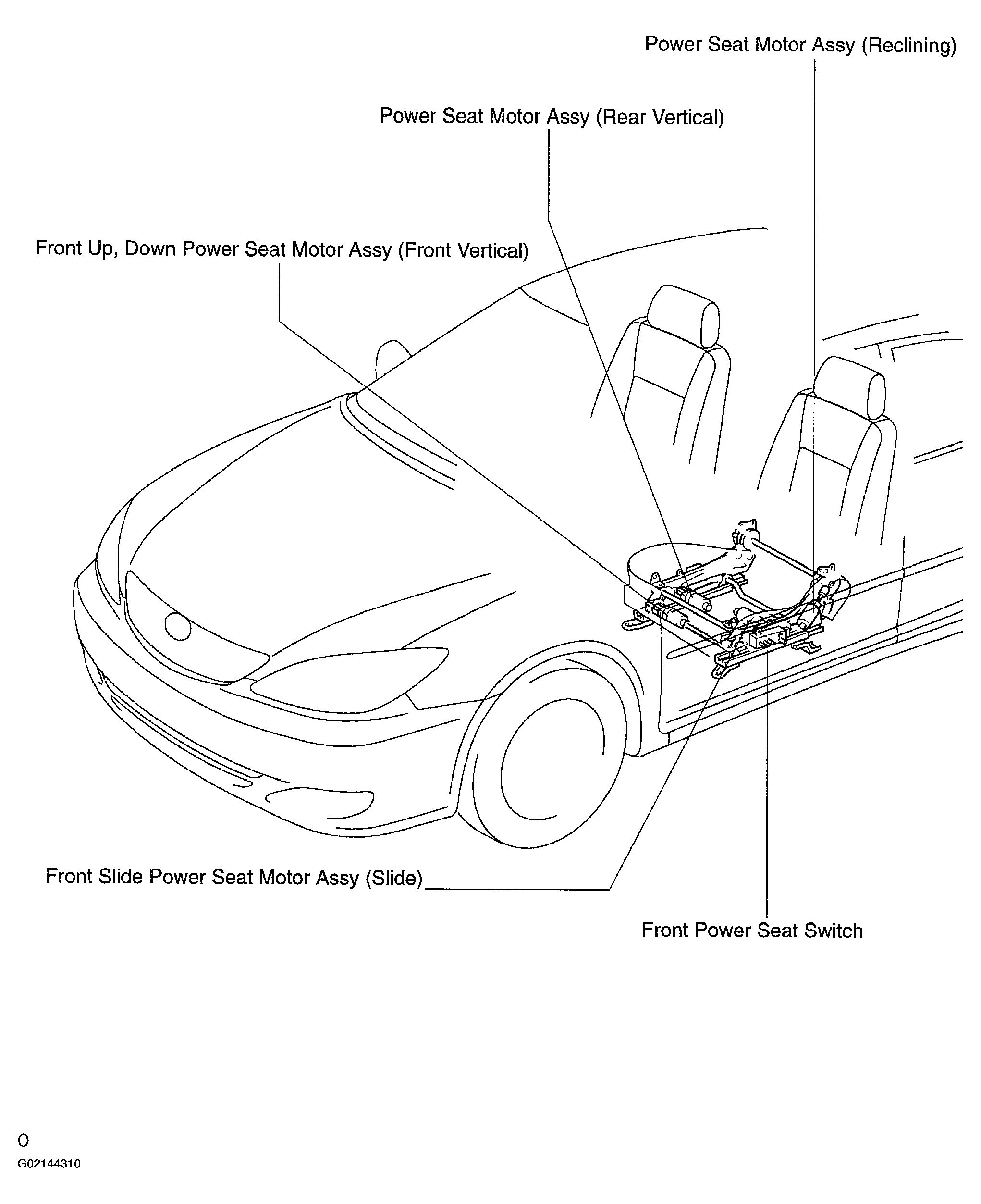

Fig 1: Identifying Front Power Seat Control System Location

G02144310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
