Front Power Seat Control System: Inspection

Inspect front power seat switch LH.

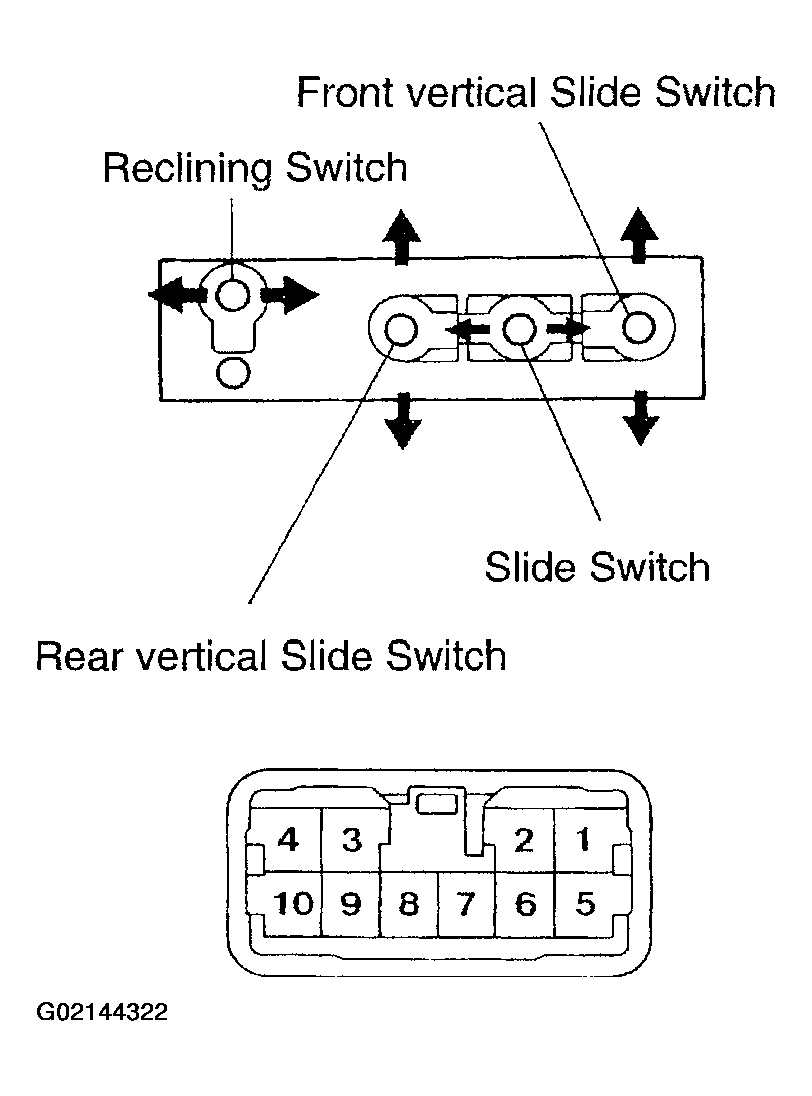

Fig 1: Displaying Power Seat Switch LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

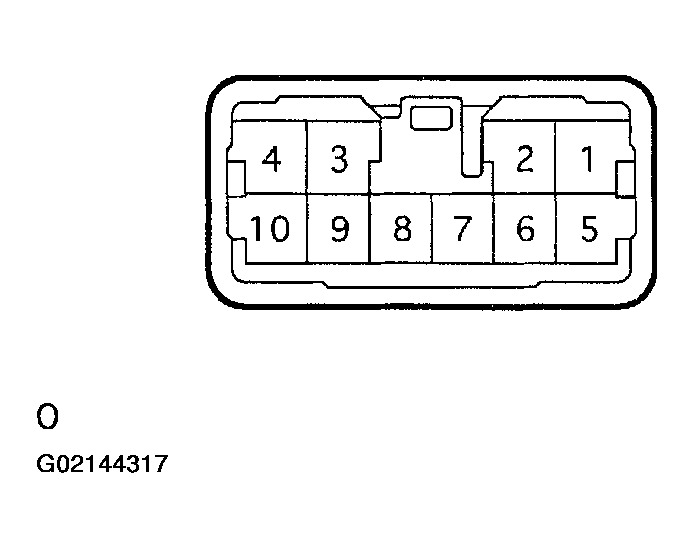

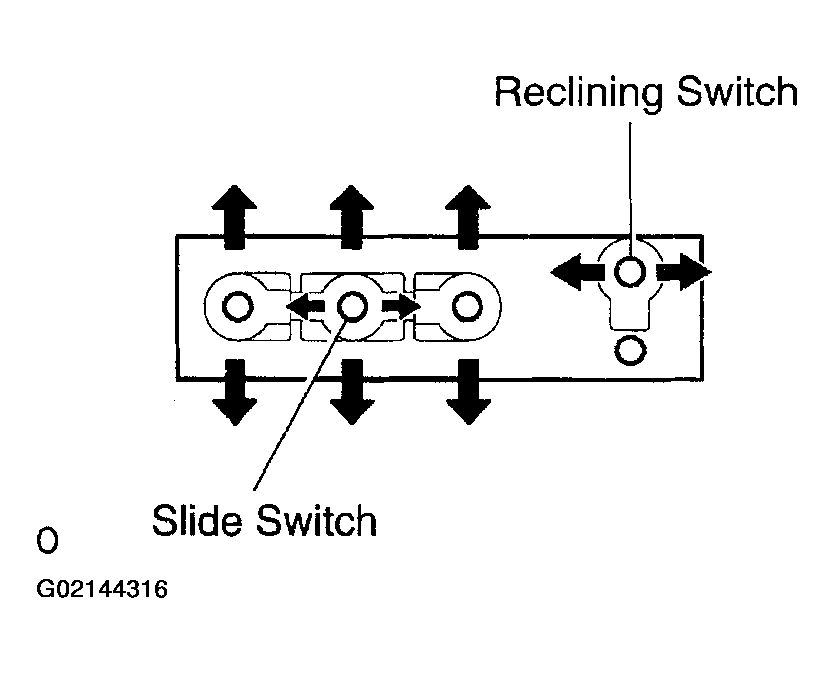

Fig 2: Displaying Power Seat Switch Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide switch.

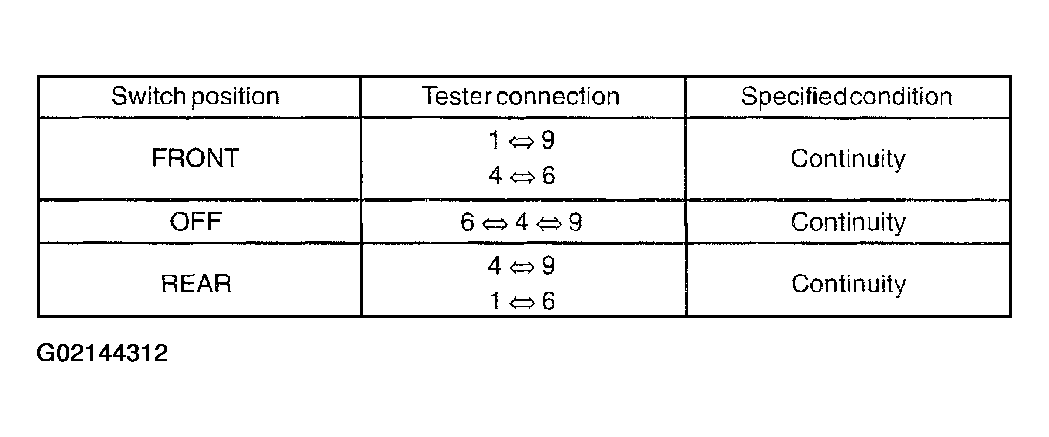

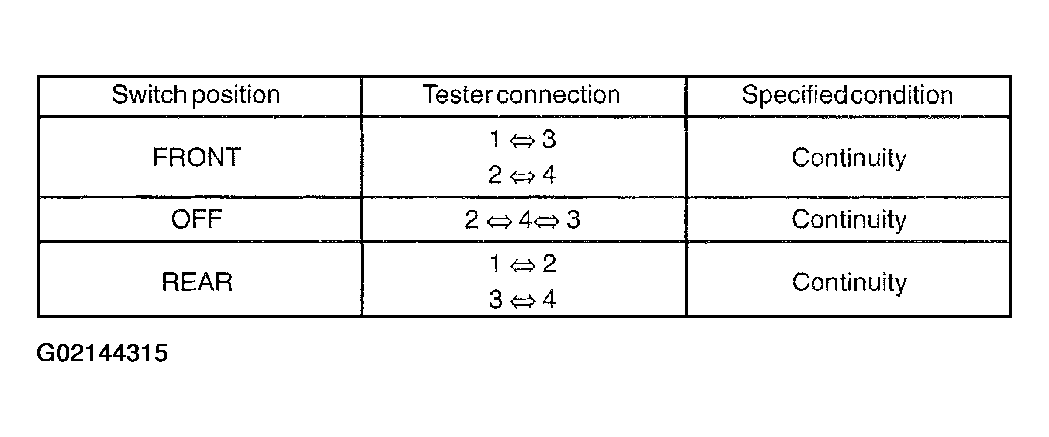

Fig 3: Displaying Slide Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front vertical switch.

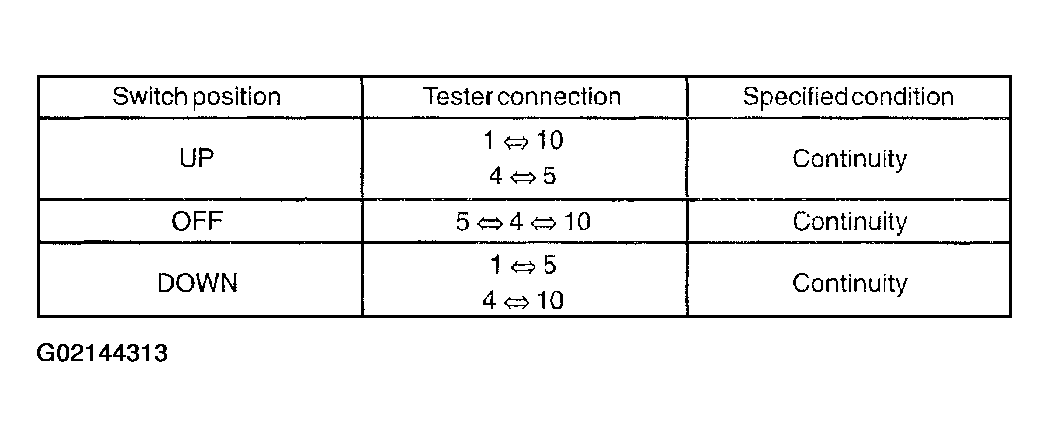

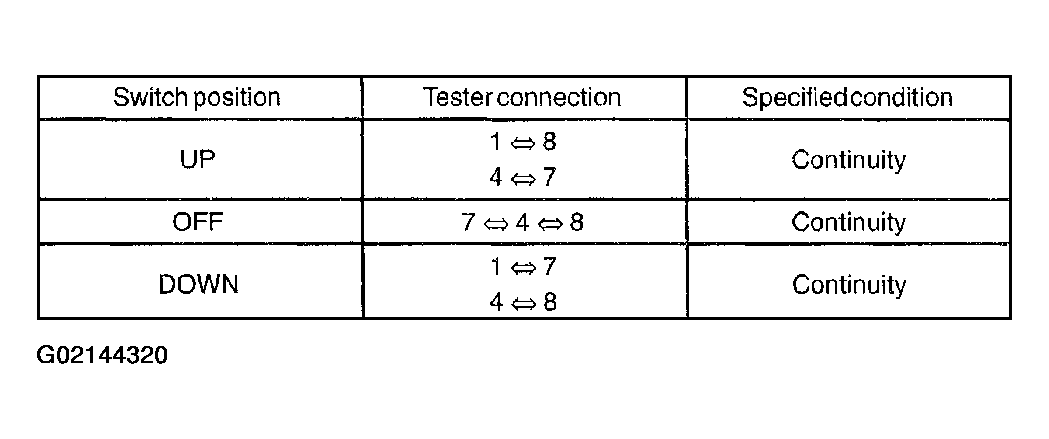

Fig 4: Displaying Front Vertical Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear vertical switch.

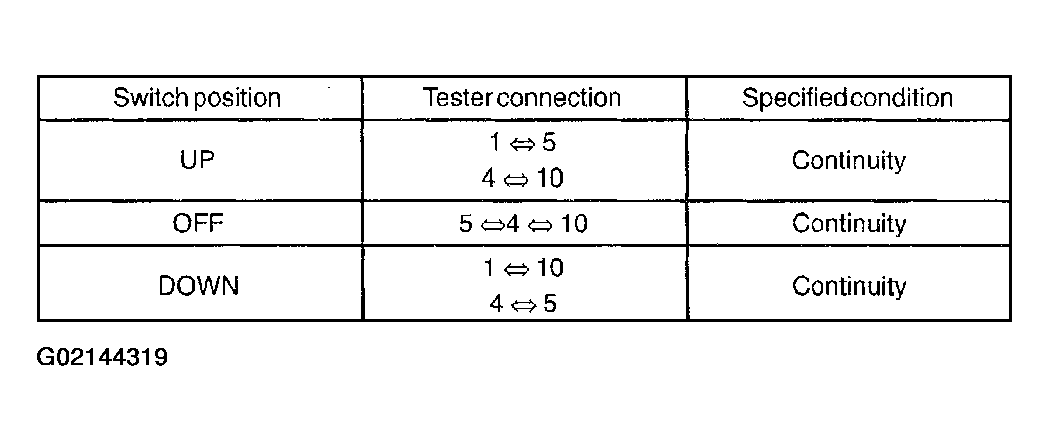

Fig 5: Displaying Rear Vertical Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reclining switch.

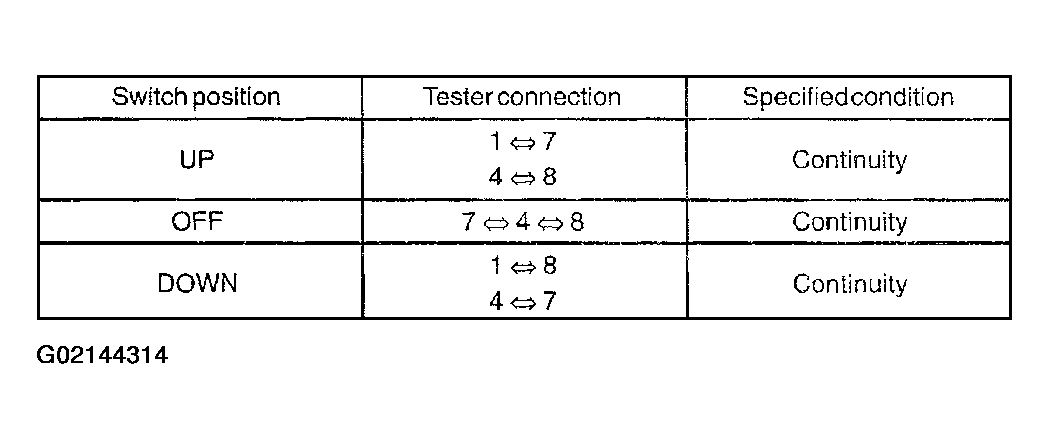

Fig 6: Displaying Reclining Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect front power seat switch RH.

Fig 7: Displaying Power Seat Switch & Terminal RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide switch.

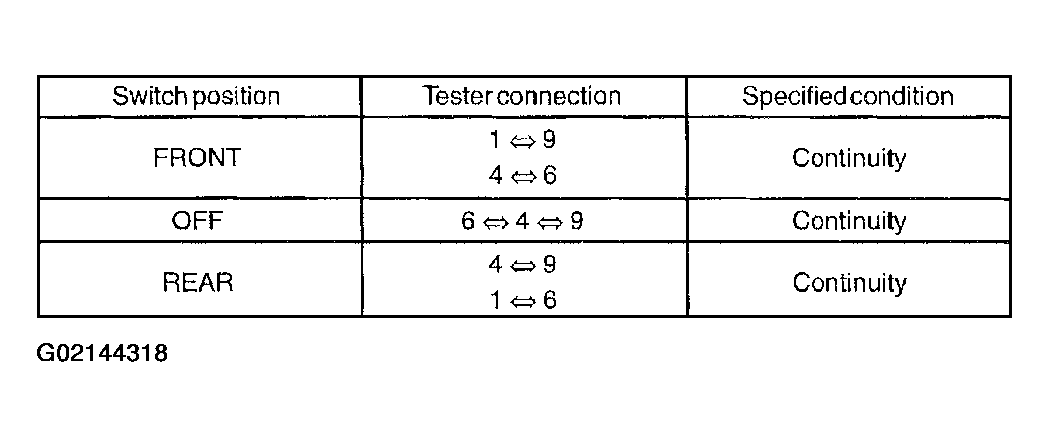

Fig 8: Displaying Slide Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front vertical switch.

Fig 9: Displaying Front Vertical Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear vertical switch

Fig 10: Displaying Rear Vertical Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reclining switch.

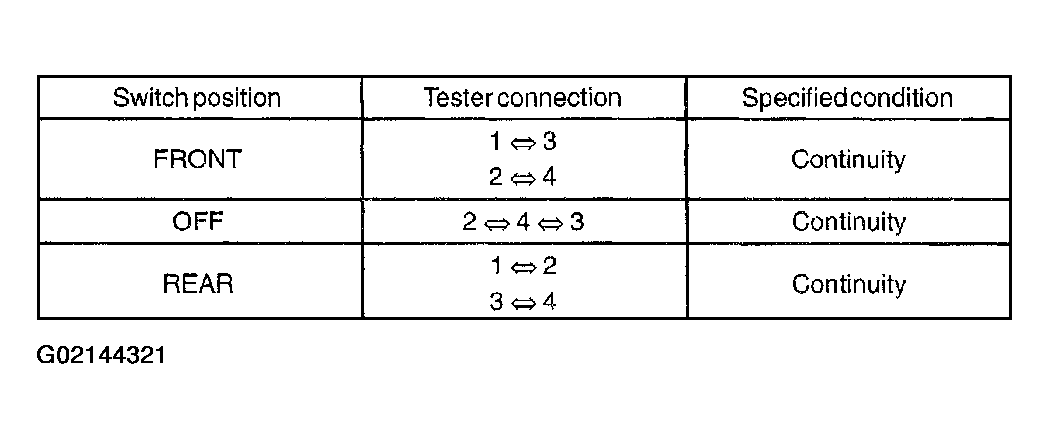

Fig 11: Displaying Reclining Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect front up, down power seat motor assembly.
1. Inspect the operation.
  1. Check that the motor rotates smoothly when the battery is connected to the connector terminal.

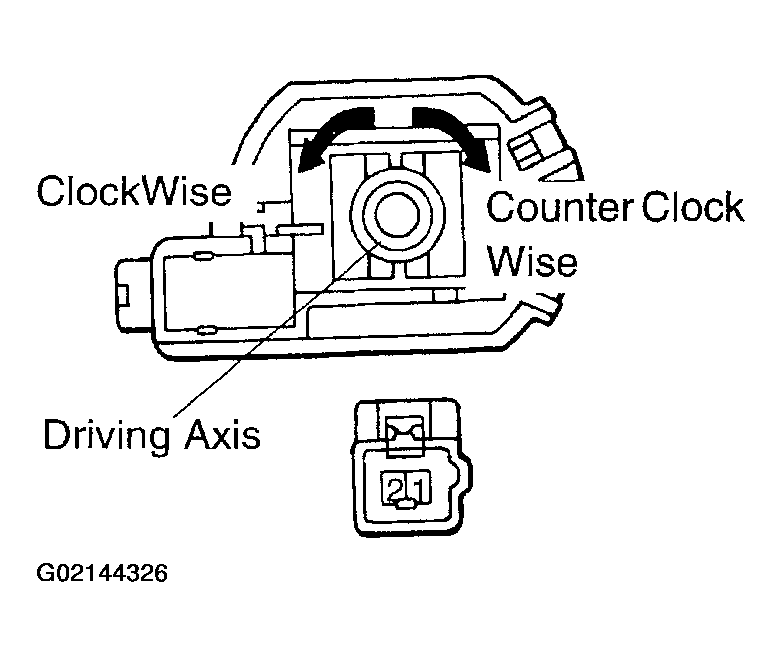

Inspect power seat motor assembly.
1. Inspect the operation.
  1. Check that the motor rotates smoothly when the battery is connected to the connector terminal.

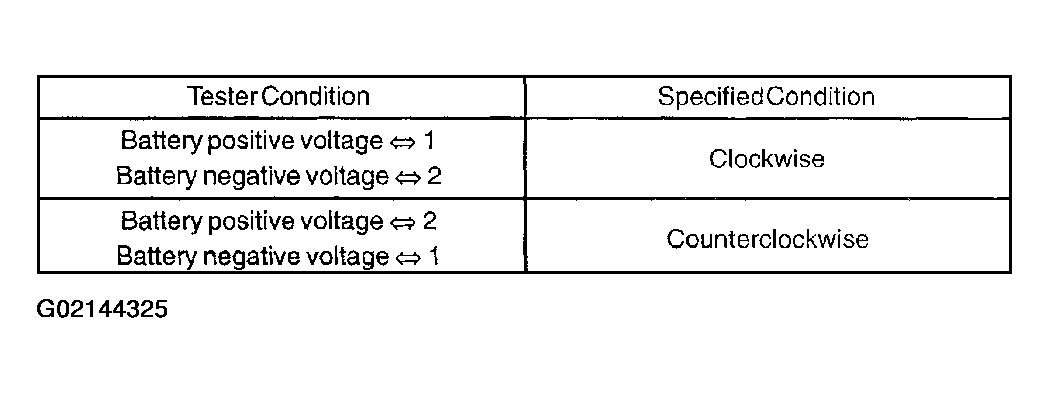

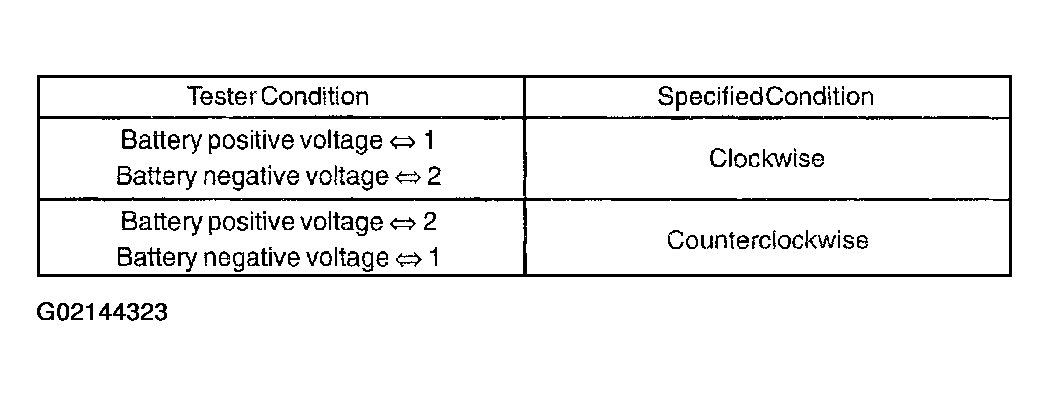

    Fig 15: Displaying Connection Condition
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
