Connector Identification

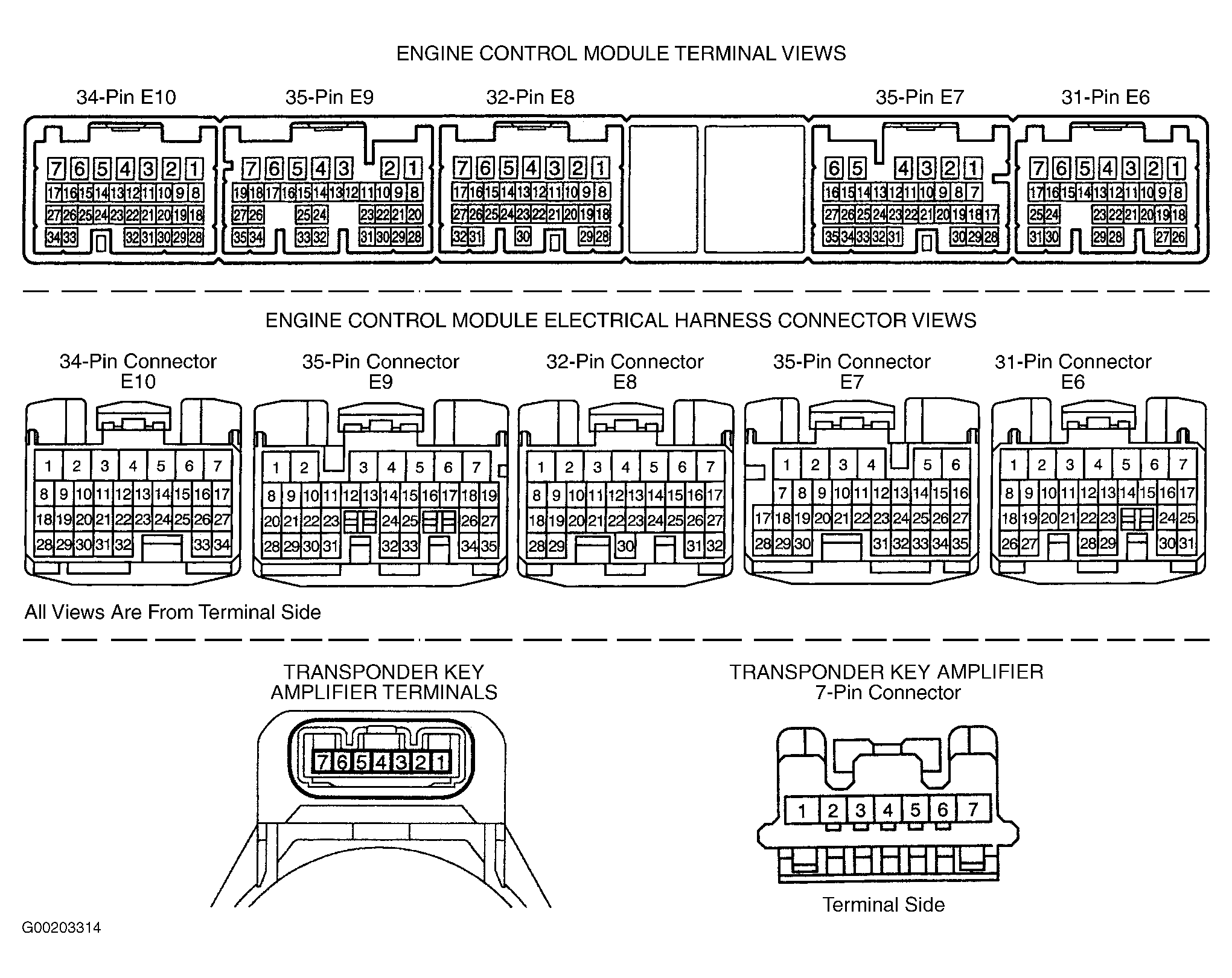

Fig 1: Identifying Engine Immobilizer System Connectors & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
