Component Locations
NOTE:

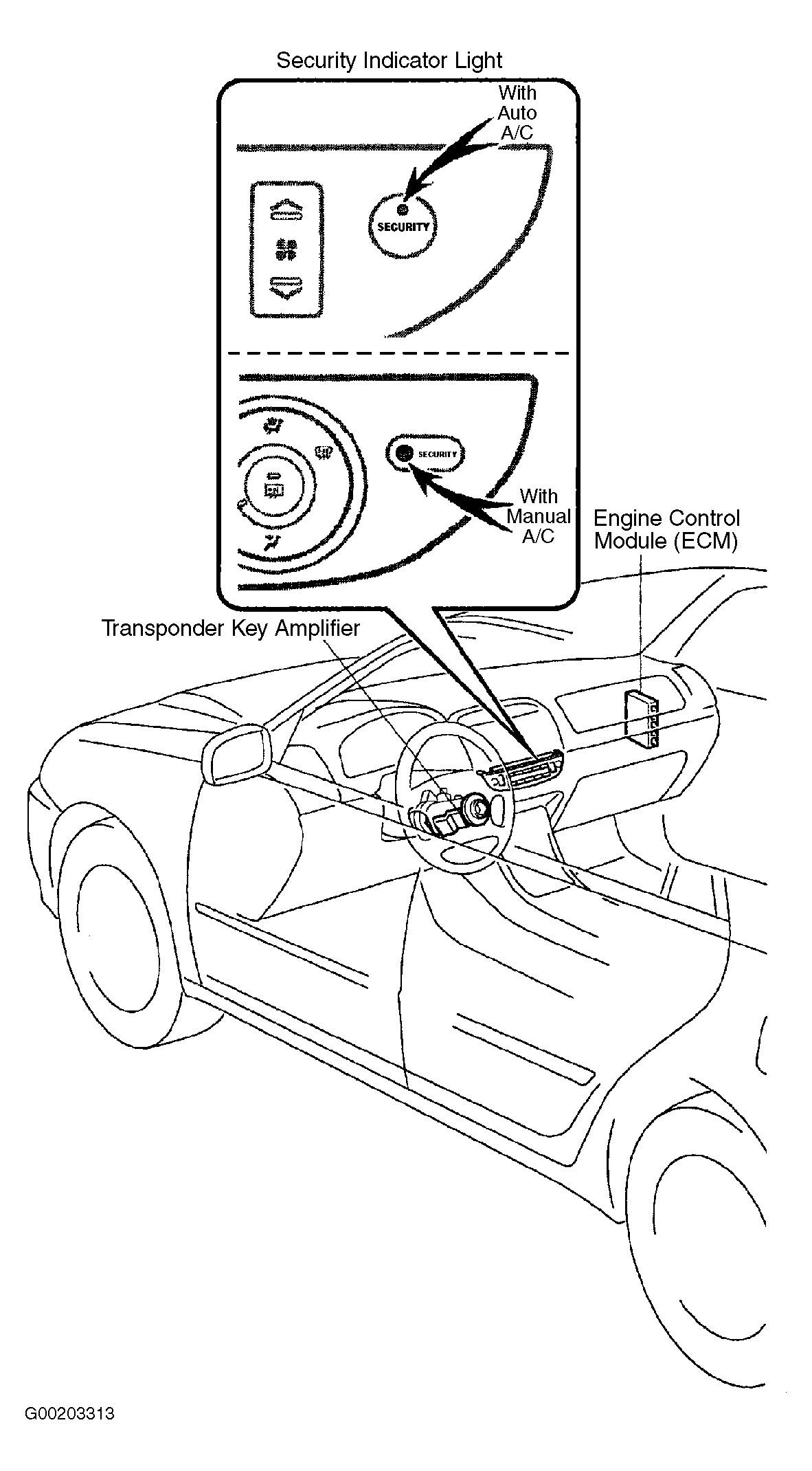

For engine immobilizer system component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Engine Control Module | Under Right Side Of Instrument Panel, Behind Glove Compartment |
| Engine Immobilizer Transponder Chip | Integral Part Of Ignition Key |
| Ignition Switch | Right Side Of Steering Column |
| SECURITY Indicator Light | On A/C Control Panel |
| Transponder Key Amplifier | Integral Part Of Ignition Switch |
