Headlight Relay
NOTE:
Headlight relay may also be referred to as head relay.

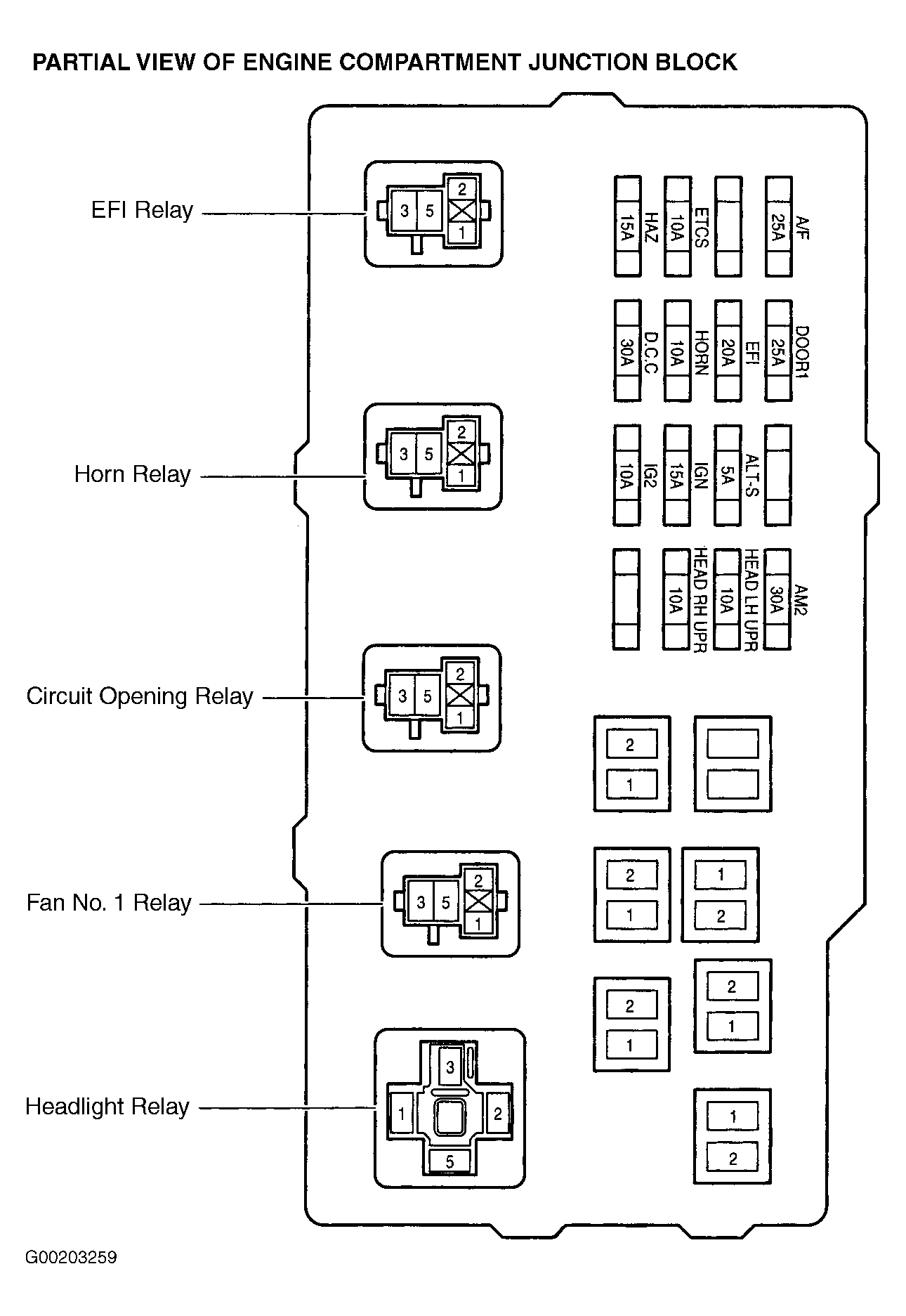

- Turn ignition off. Remove headlight relay from engine compartment junction block located in front of left shock tower in engine compartment. See Figure and Fig 1 .

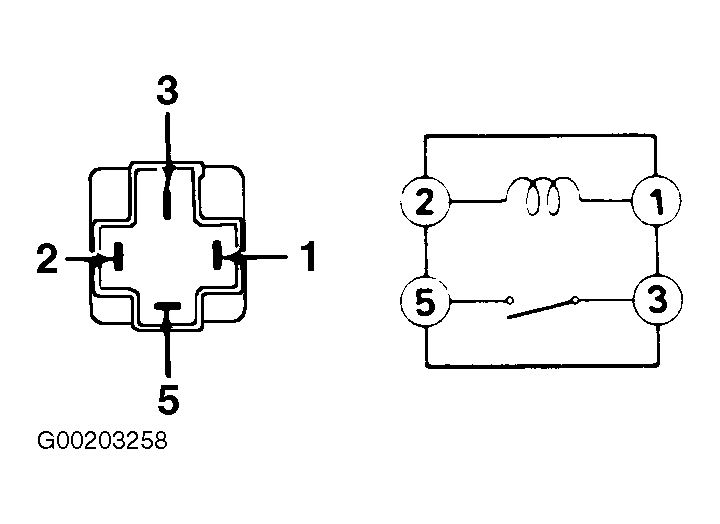

- Note identification of electrical terminals on headlight relay. See Figure. Using an ohmmeter, check that no continuity exists between terminals No. 3 and 5 of headlight relay. Check that continuity exists between terminals No. 1 and 2 of headlight relay.
- Using jumper wires, apply battery voltage and ground to terminals No. 1 and 2 of headlight relay. Check that continuity now exists between terminals No. 3 and 5 of headlight relay. See Figure. If continuity is not as specified, replace headlight relay.
