Fog Relay

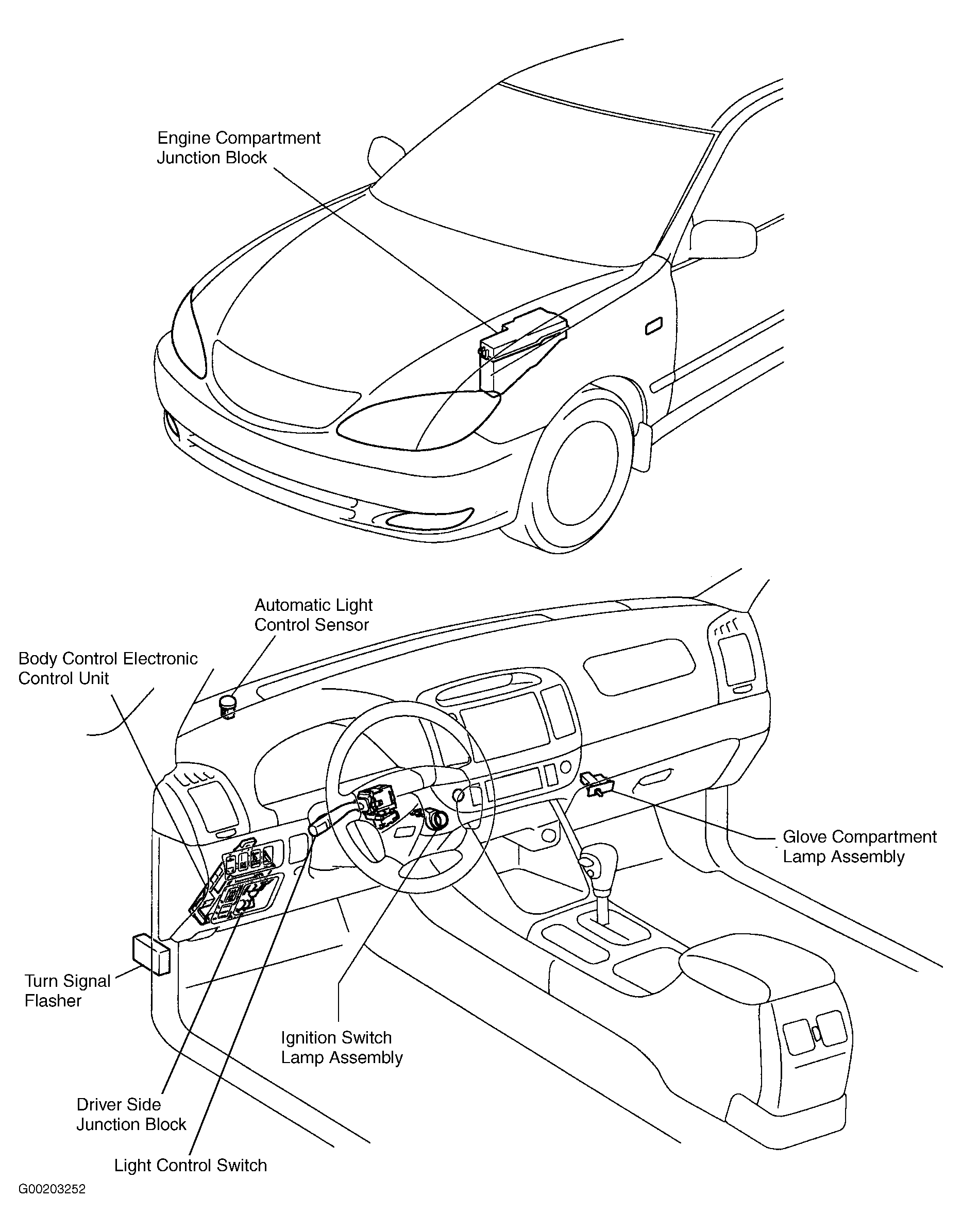

  1. Turn ignition off. Remove fog relay from driver side junction block located under left side of instrument panel. See Figure.
  2. Note identification of electrical terminals on fog relay. See Fig 1. Using an ohmmeter, check that no continuity exists between terminals No. 3 and 5 of fog relay. Check that continuity exists between terminals No. 1 and 2 of fog relay.
  3. Using jumper wires, apply battery voltage and ground to terminals No. 1 and 2 of fog relay. Check that continuity now exists between terminals No. 3 and 5 of fog relay. See Fig 1. If continuity is not as specified, replace fog relay.
    Fig 1: Identifying Fog Relay, Daytime Running Light Relay No. 2 & Taillight Relay Terminals
    G00018627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
