Component Locations

NOTE: For additional multiplex control system locations, see illustrations. See Fig 1-Fig 3 .
COMPONENT LOCATIONS

Component Location
Body Control Electronic Control Unit Attached To Driver Side Junction Block
Data Link Connector No. 3 (DLC3) Under Left Side Of Instrument Panel, To Right Of Driver Side Junction Block
Driver Side Junction Block Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column
Engine Compartment Junction Block Left Side Of Engine Compartment, In Front Of Shock Tower
OPEN DOOR Indicator Light On Instrument Cluster
Theft Deterrent Electronic Control Unit Behind Right Side Of Instrument Panel
Theft Deterrent Horn Left Rear Corner Of Engine Compartment
Toyota Vehicle Intrusion Protection ECU Behind Right Side Of Instrument Panel
Turn Signal Flasher Under Left Side Of Instrument Panel, Behind Kick Panel
Fig 1: Locating Multiplex & Body Control System Components (1 Of 3)
G00203252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

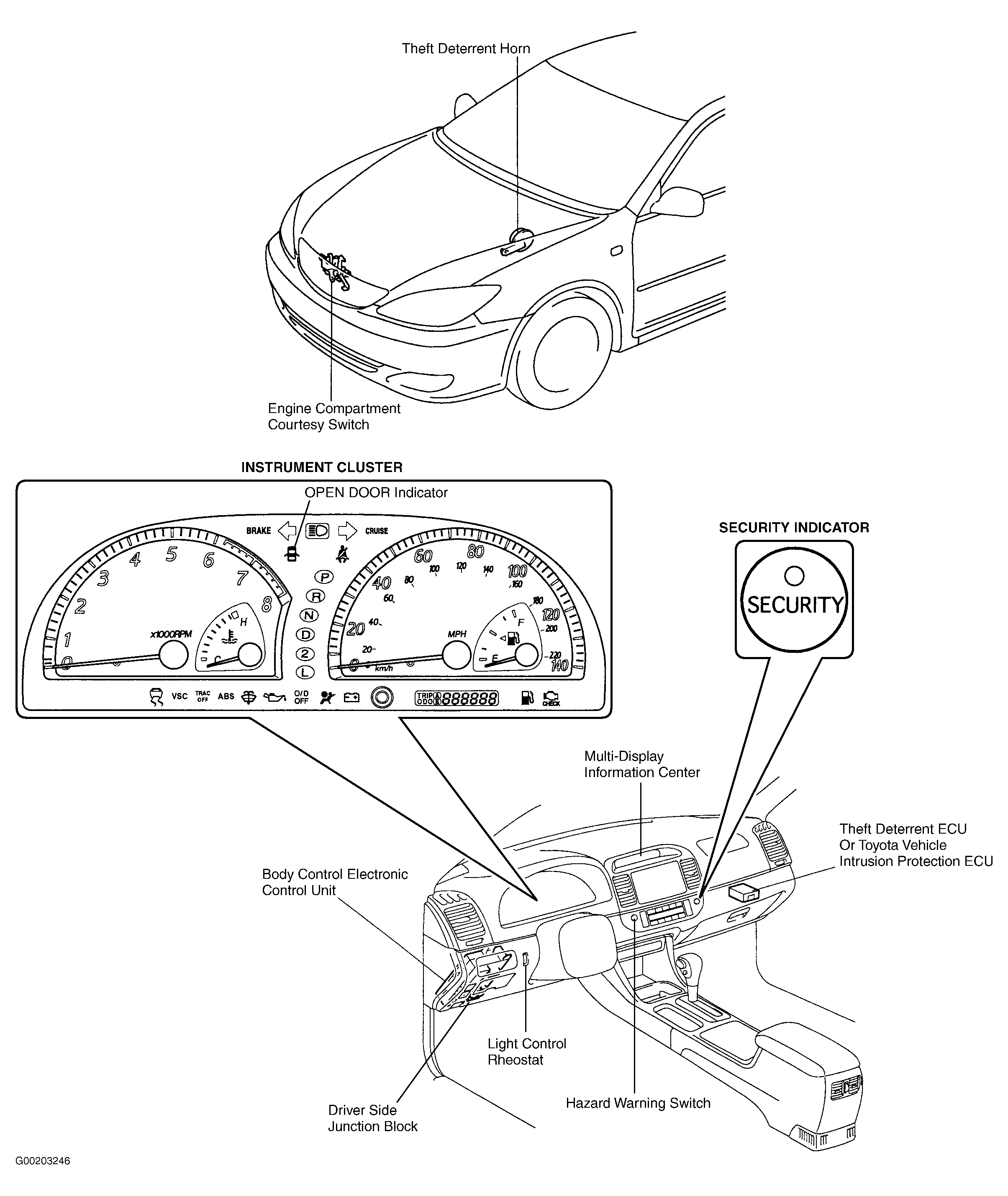

Fig 2: Locating Multiplex & Body Control System Components (2 Of 3)
G00203246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

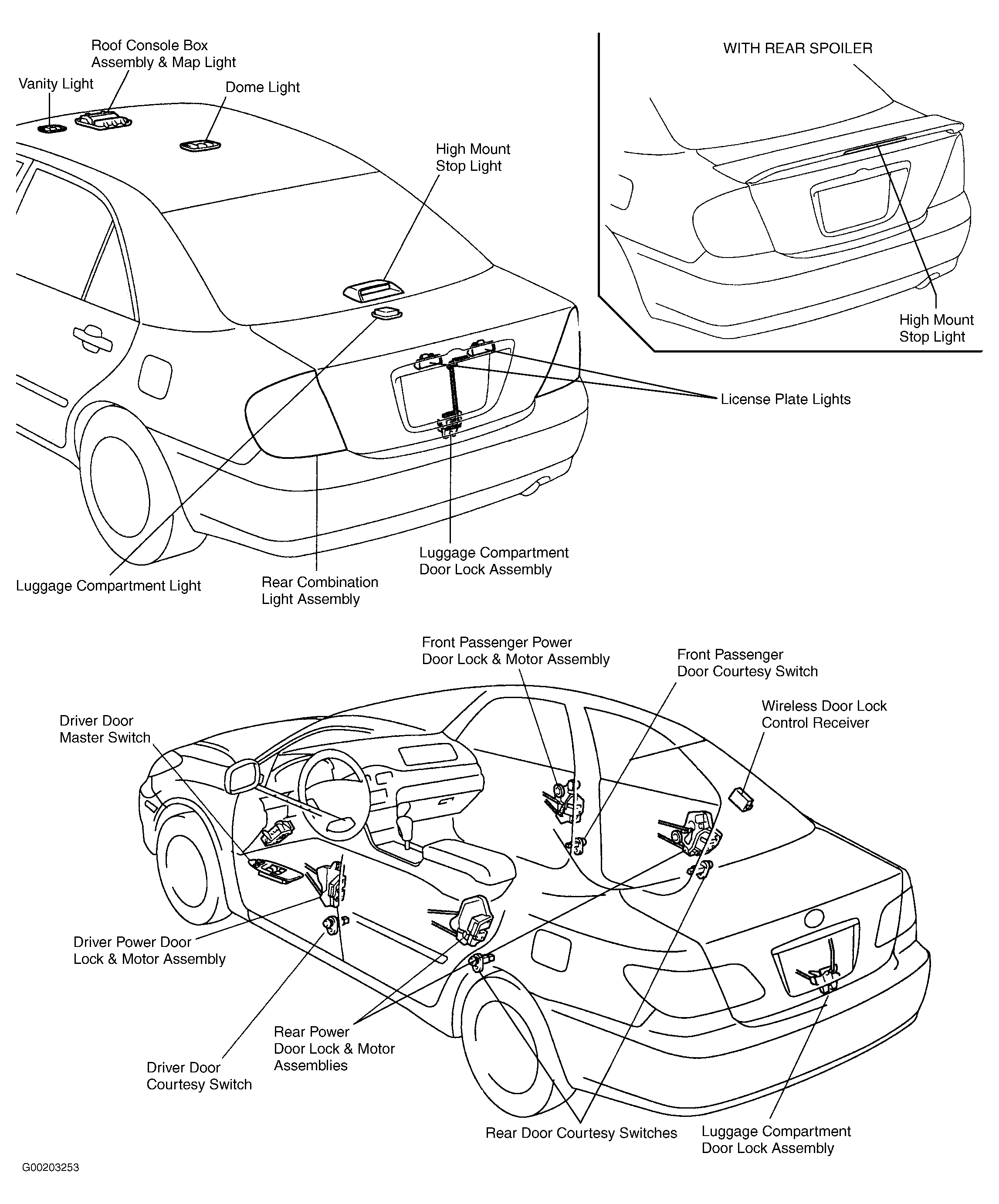

Fig 3: Locating Multiplex & Body Control System Components (3 Of 3)
G00203253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
