Parts Layout & Schematic Drawing: Drawing

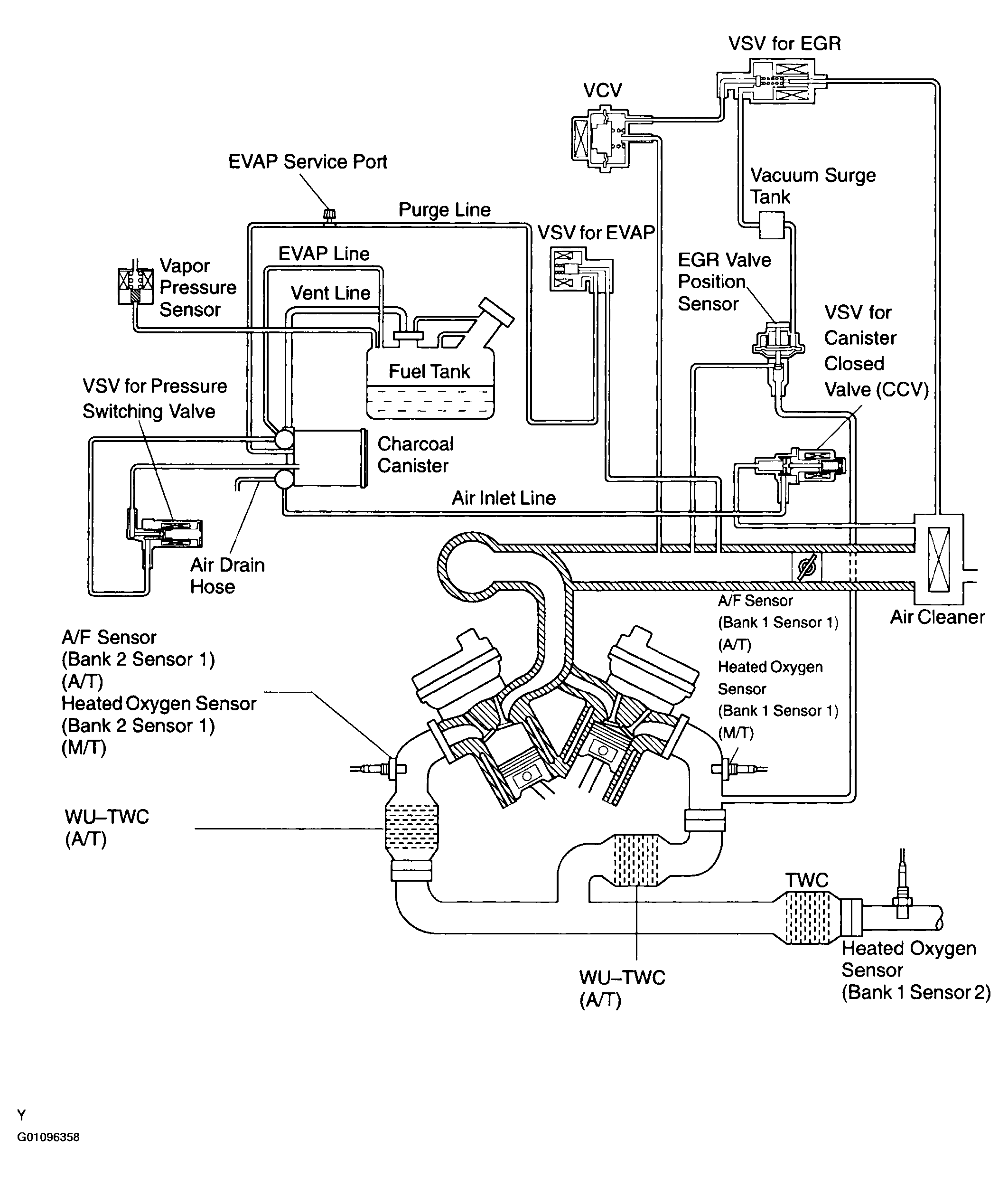

Fig 1: Locating Emission Control System Components (2 Of 2)
G01096358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
