Emission Control System: Purpose
The emission control systems are installed to reduce the amount of CO, HC and NOx exhausted from the engine ((3), (4), (5) and (6)), to prevent the atmospheric release of blow-by gas-containing HC (1) and evaporated fuel containing HC being released from the fuel tank (2).

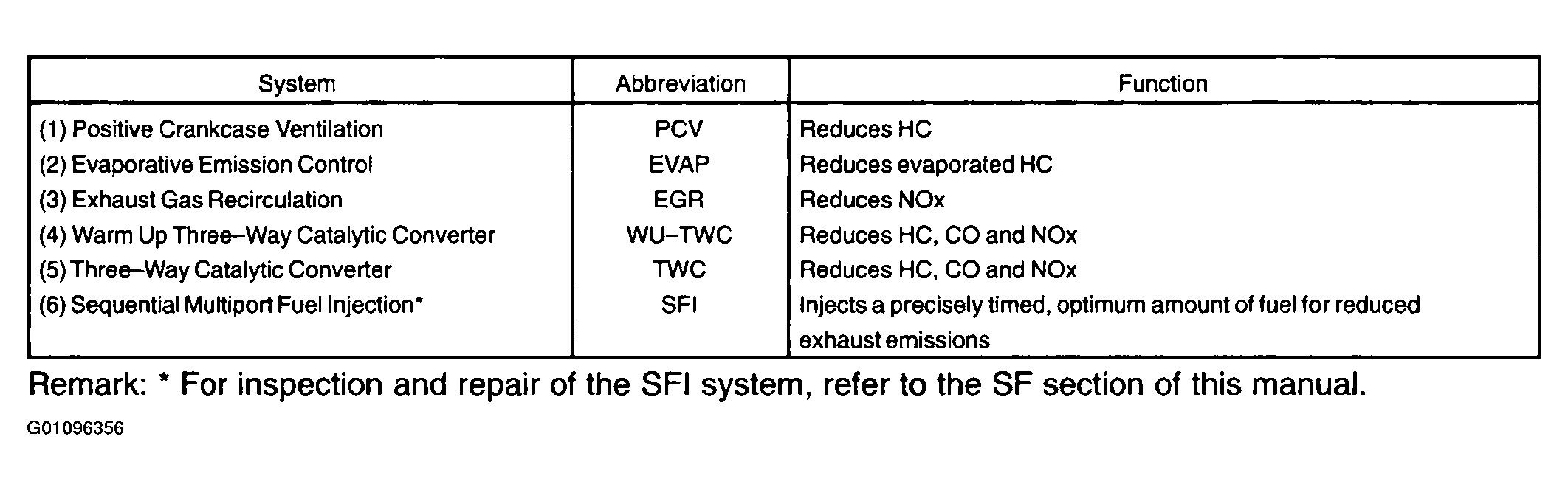

Numbers refer to the function of each system and are shown in Fig 1.
