Front Speed Sensor: Removal

  1. DISCONNECT SPEED SENSOR CONNECTOR
    1. Remove the fender liner.
    2. Disconnect the speed sensor connector.
      Fig 1: Identifying Speed Sensor Connector
      G01098403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SPEED SENSOR
    1. Remove the bolt, flexible hose and speed sensor harness clamp from the shock absorber.
    2. Remove the resin clip and clamp bolt holding the sensor harness from the body.
    3. Remove the speed sensor from the steering knuckle.

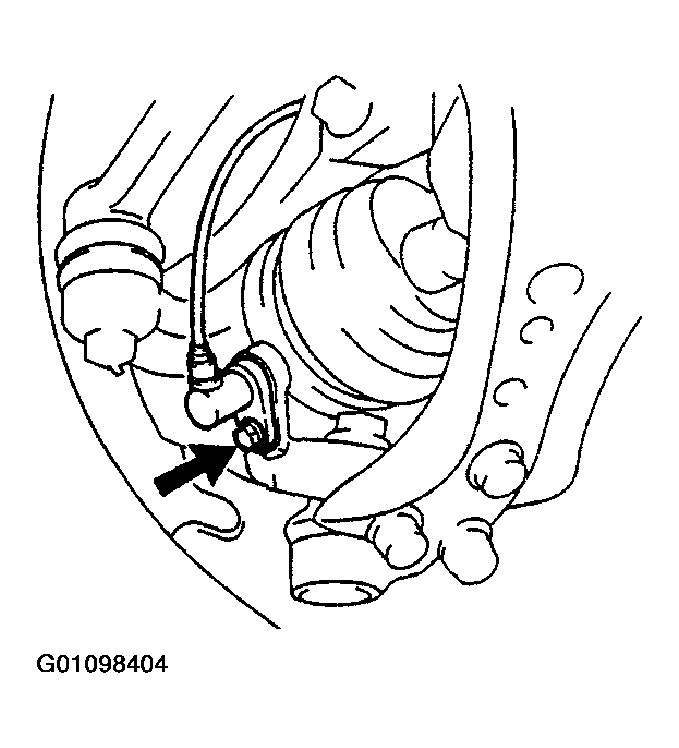

      Fig 2: Removing Speed Sensor
      G01098404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
