Front Speed Sensor: Installation

1. INSTALL SPEED SENSOR
   1. Install the speed sensor to the steering knuckle.

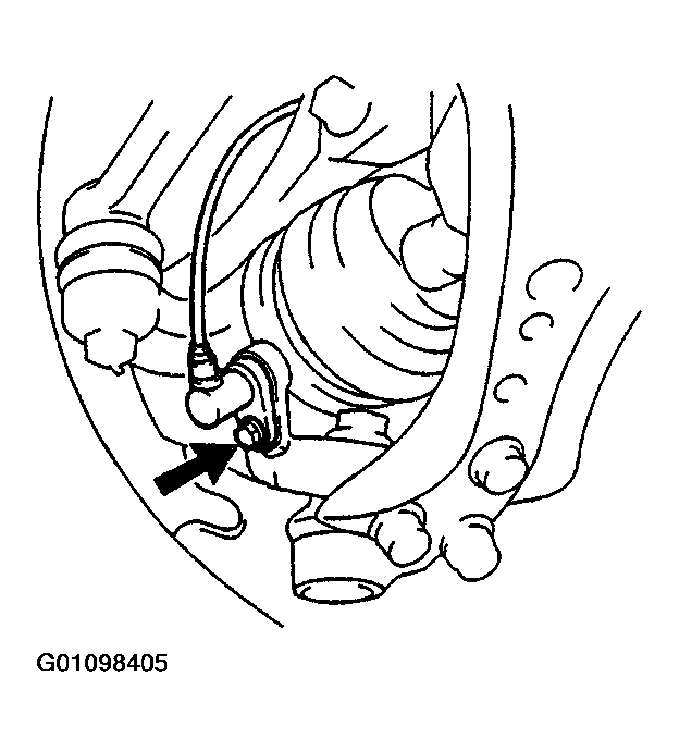

      Fig 1: Installing Speed Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
   2. Install the resin clip and clamp bolt holding the sensor harness to the body.
      1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
   3. Install the speed sensor harness clamp, flexible hose and bolt to the shock absorber.
   1. Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
2. INSTALL SPEED SENSOR CONNECTOR
   Fig 2: Installing Speed Sensor Connector
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the speed sensor connector.
   2. Install the fender liner.
3. CHECK SPEED SENSOR SIGNAL

(See  DTC OF SPEED SENSOR CHECK FUNCTION  and  PRE-CHECK  )  .
