Power Steering System: Precaution

  1. Handling precautions on steering system.
    1. Care must be taken when replacing parts. Incorrect replacement could affect the performance of the steering system and result in a driving hazard.
    2. 1MZ-FE engine has 2 types of vane pump assembly.

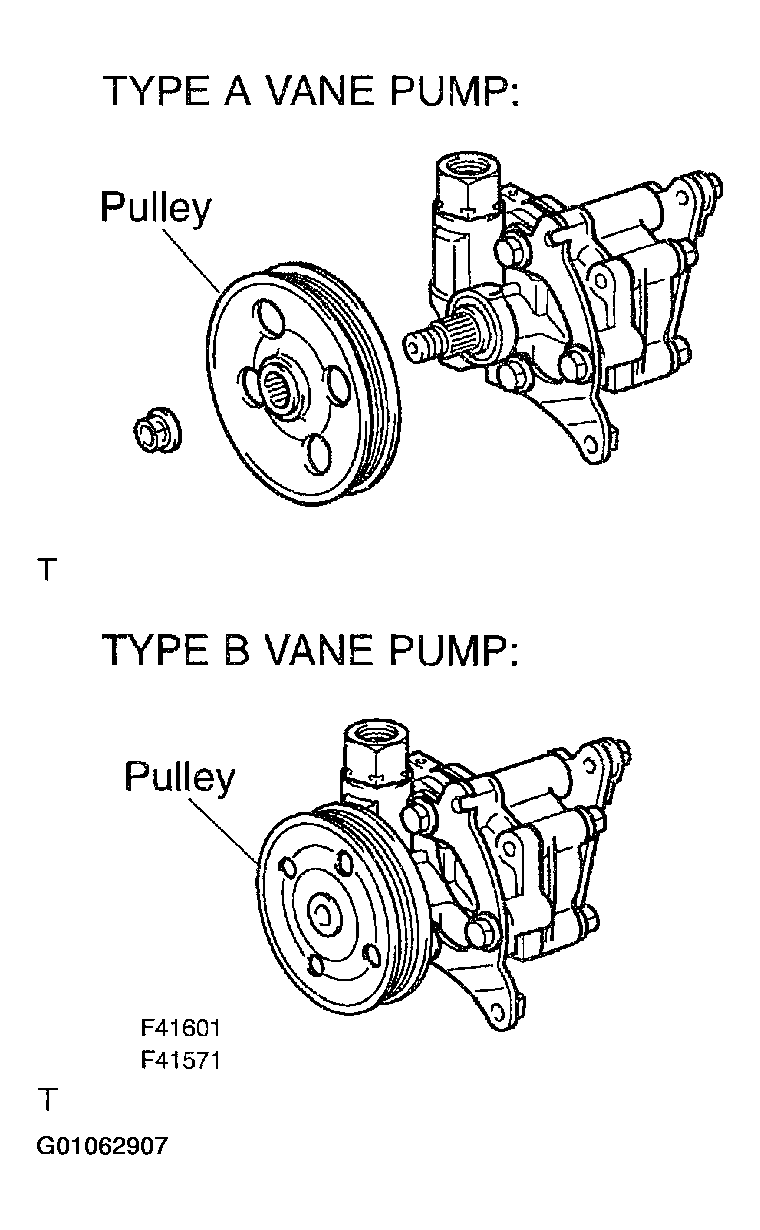

        Fig 1: Displaying Two Types Of Vane Pump
        G01062907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

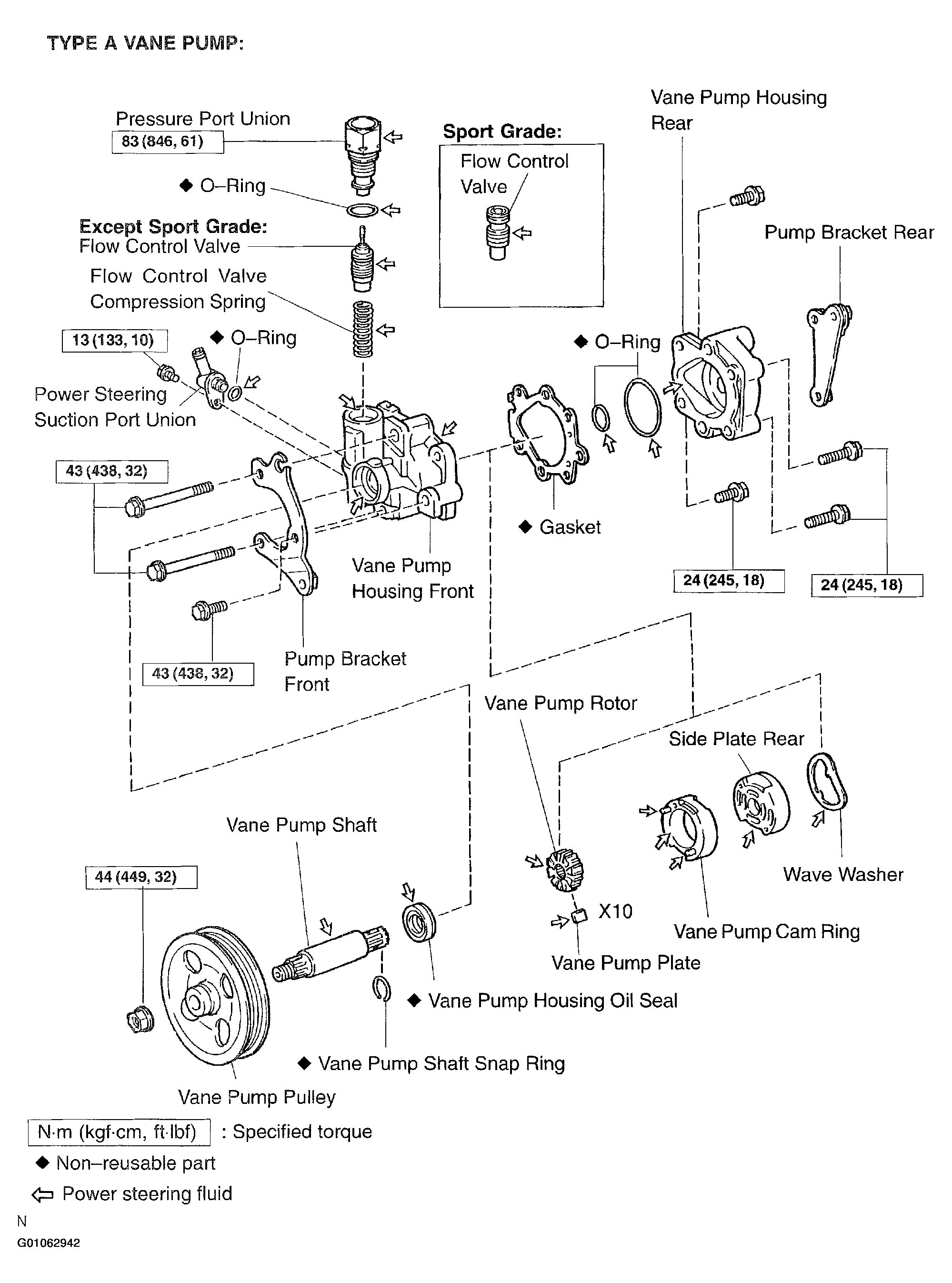

      • TYPE A VANE PUMP:

        Vane pump pulley can be removed from the vane pump shaft. See Figure.

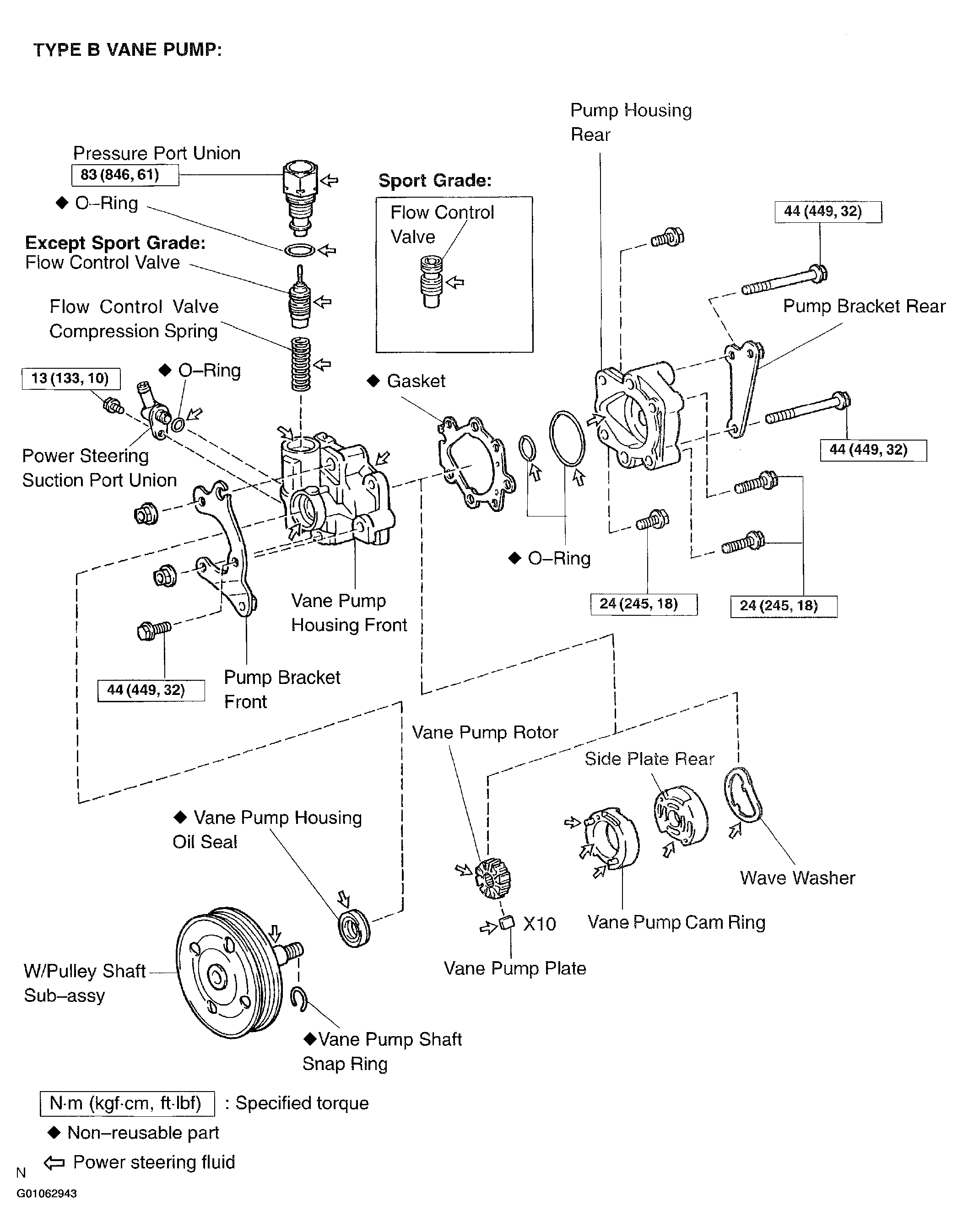

      • TYPE B VANE PUMP:

        Vane pump pulley cannot be removed from the vane pump shaft. See Figure.

    3. "Sport Grade" indicates the following models. See Figure.
      1. MCV30L-AEPSKA
      2. MCV30L-CEPSKA
  2. Handling precautions on SRS airbag system.
    1. The CAMRY is equipped with SRS (Supplemental Restraint System) such as the driver airbag and front passenger airbag. Failure to carry out service operation in correct sequence could cause the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read AIR BAG RESTRAINT SYSTEMS .
