Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| A/C Control Assembly | Behind center of dash. See Figure. |
| Blower Motor Controller (Automatic A/C) | Behind right side of dash. |
| Body ECU | Attached to driver side J/B. See Figure. |
| Door Control Receiver | At right "C" pillar. |
| Engine Control Module | Behind right side of dash. See Figure. |

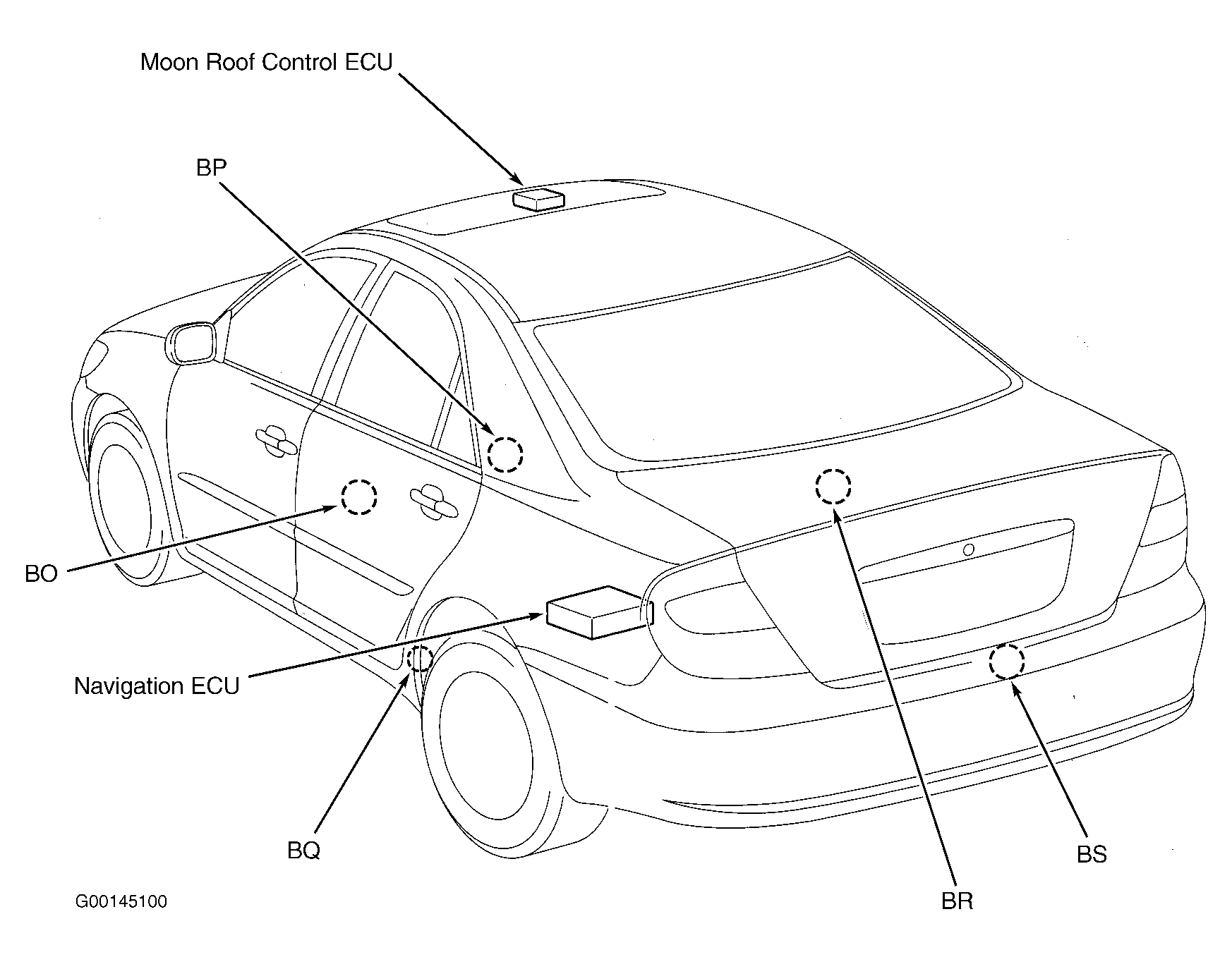

| Moon Roof Control ECU | At center front of roof. See Figure. |
| Navigation ECU | At left side of luggage compartment. See Figure. |
| Shift Lock Control ECU | Under center floor console, near parking brake lever. See Figure. |
| Skid Control ECU | Behind right side of dash. See Figure. |
| Skid Control ECU W/ Actuator | At right side of engine compartment. See Figure. |
| Stereo Component Amplifier | Behind right side of dash. See Figure. |
| Theft Deterrent ECU | Behind right side of dash. See Figure. |
| Transponder Key Amplifier | On right side of steering column. See Figure. |
| TVIP ECU | Behind right side of dash. |
