Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

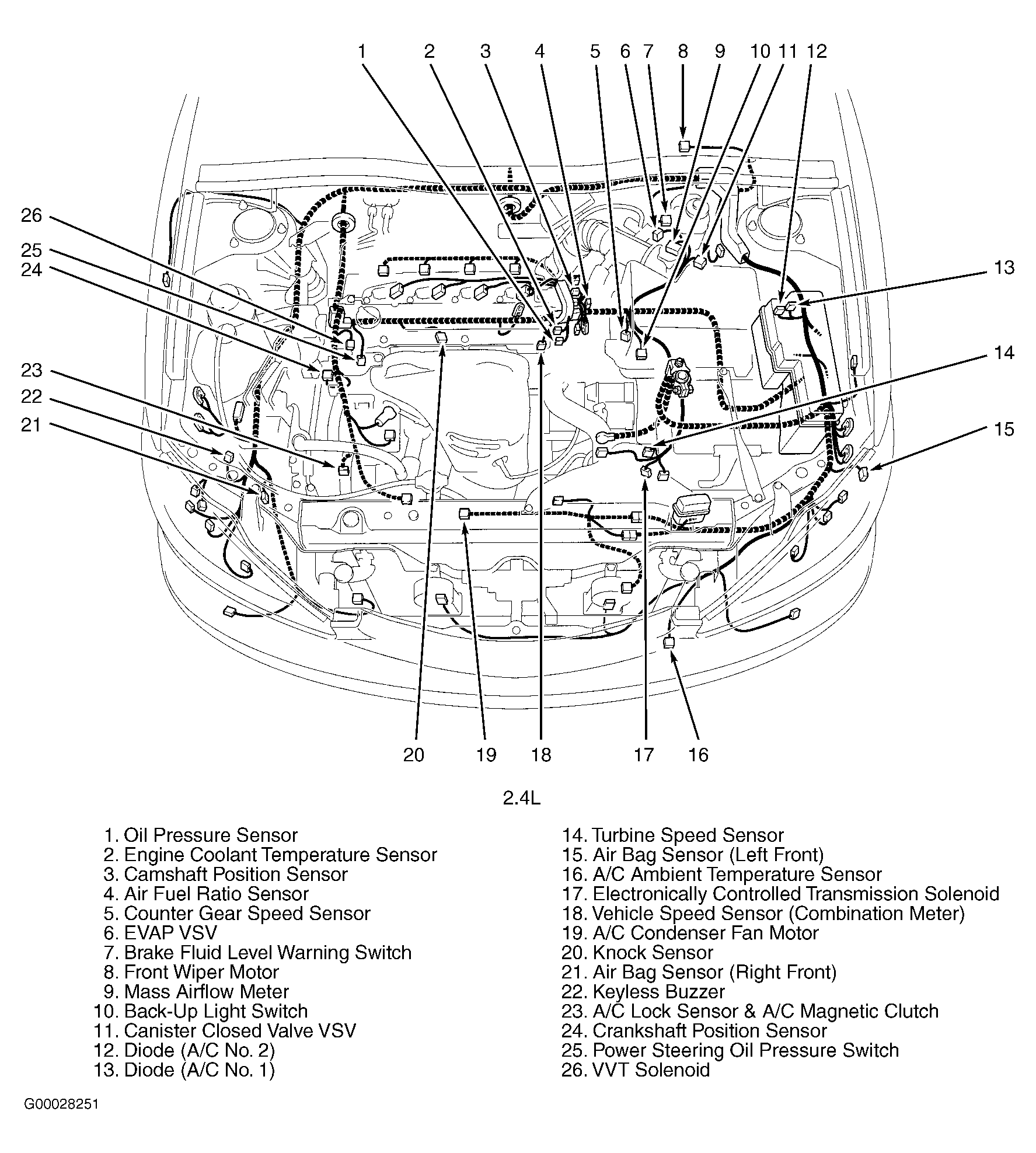

Fig 1: Engine Compartment (2.4L)
G00028251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

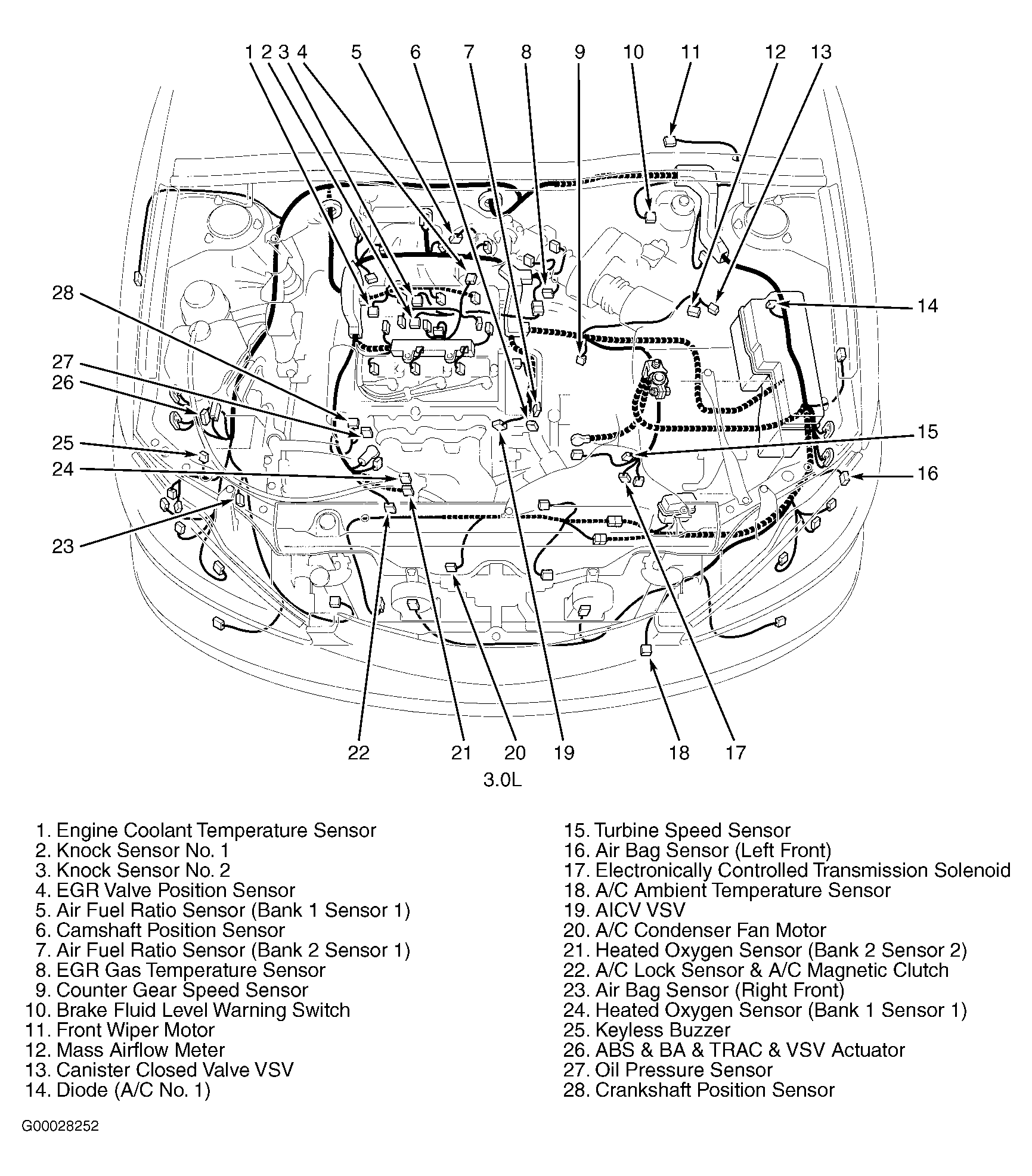

Fig 2: Engine Compartment (3.0L)
G00028252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Compartment
G00028253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Dash Relays And Components
G00145099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TURN SIGNAL FLASHER RELAY IDENTIFICATION

RELAY DESCRIPTION
Turn Signal Flasher Relay
Fig 5: Vehicle Overview
G00145100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

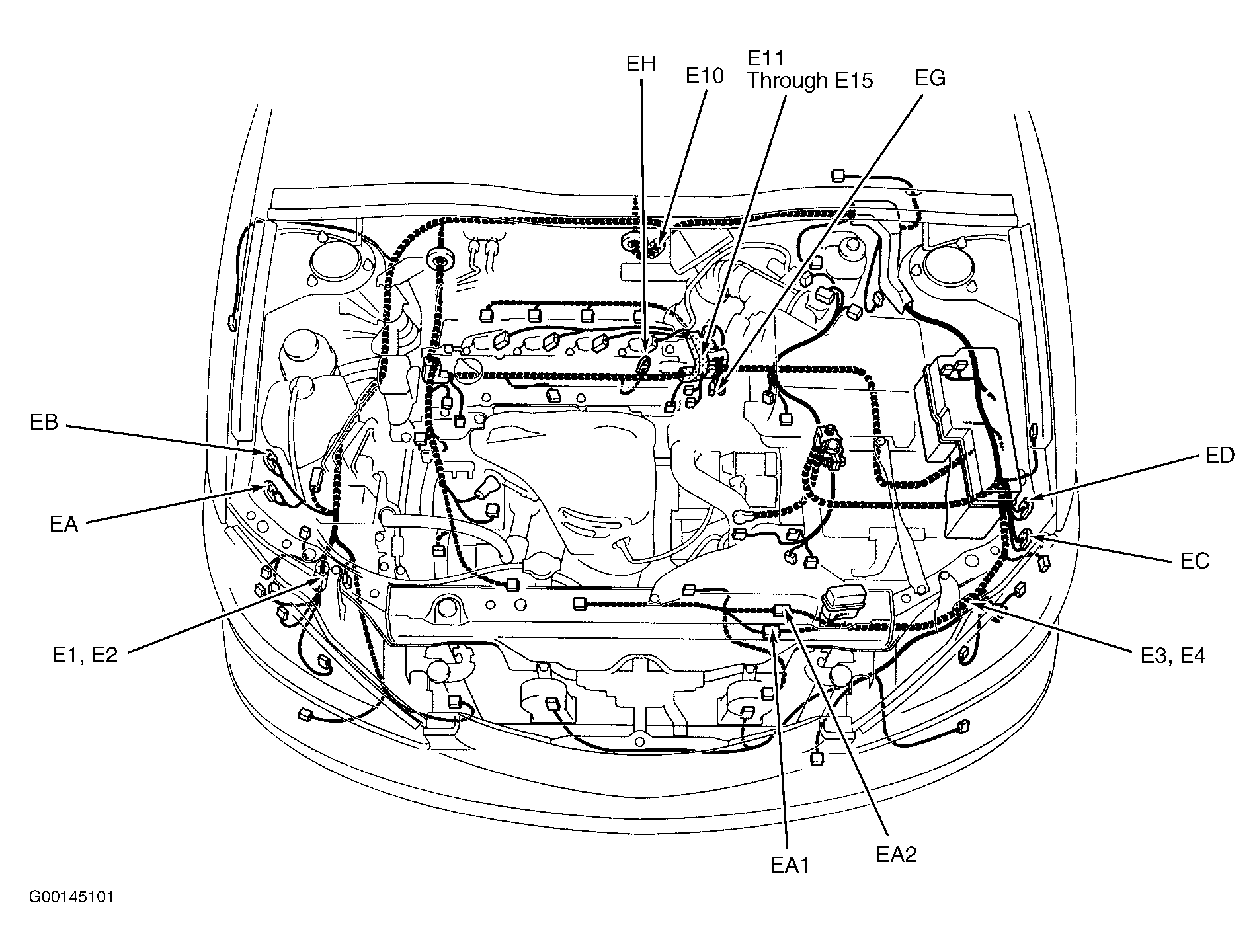

Fig 6: Engine Compartment (2.4L)
G00145101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

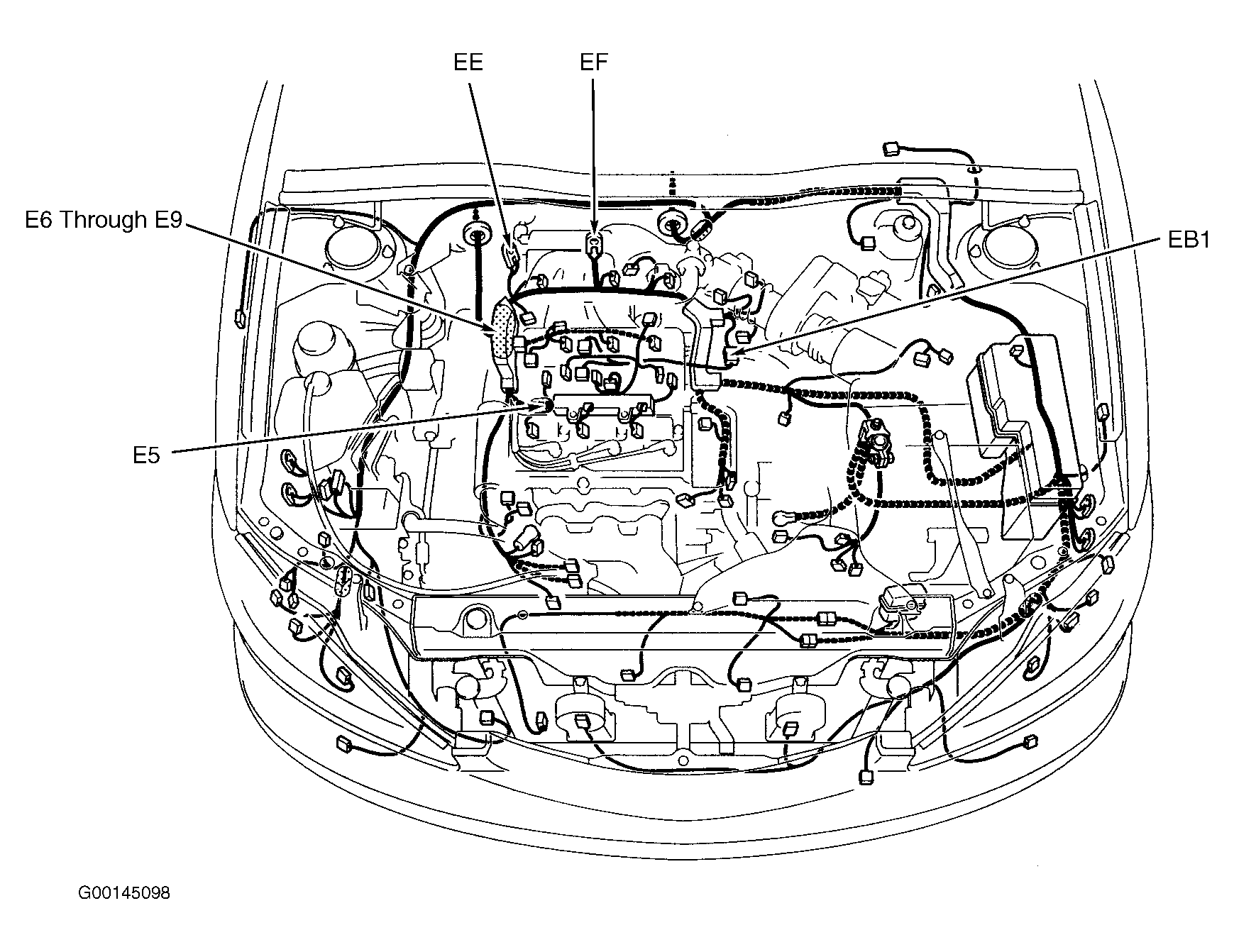

Fig 7: Engine Compartment (3.0L)
G00145098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: A/F And O2 Sensor Identification
G06375694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
