Connector Identification
Connector Identification

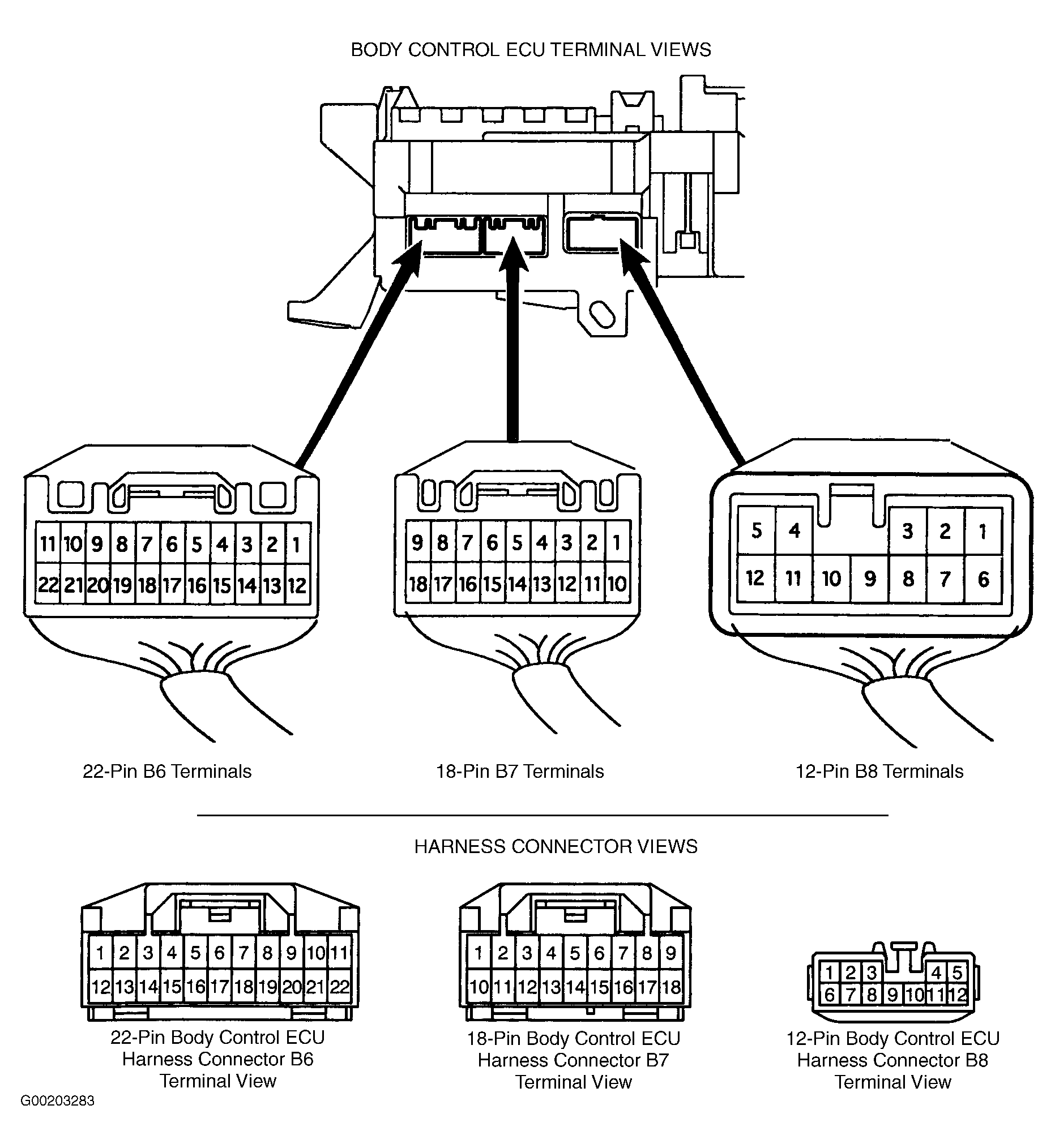

Fig 1: Identifying Body Control Electronic Control Unit Connectors & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
