Component Locations
NOTE:

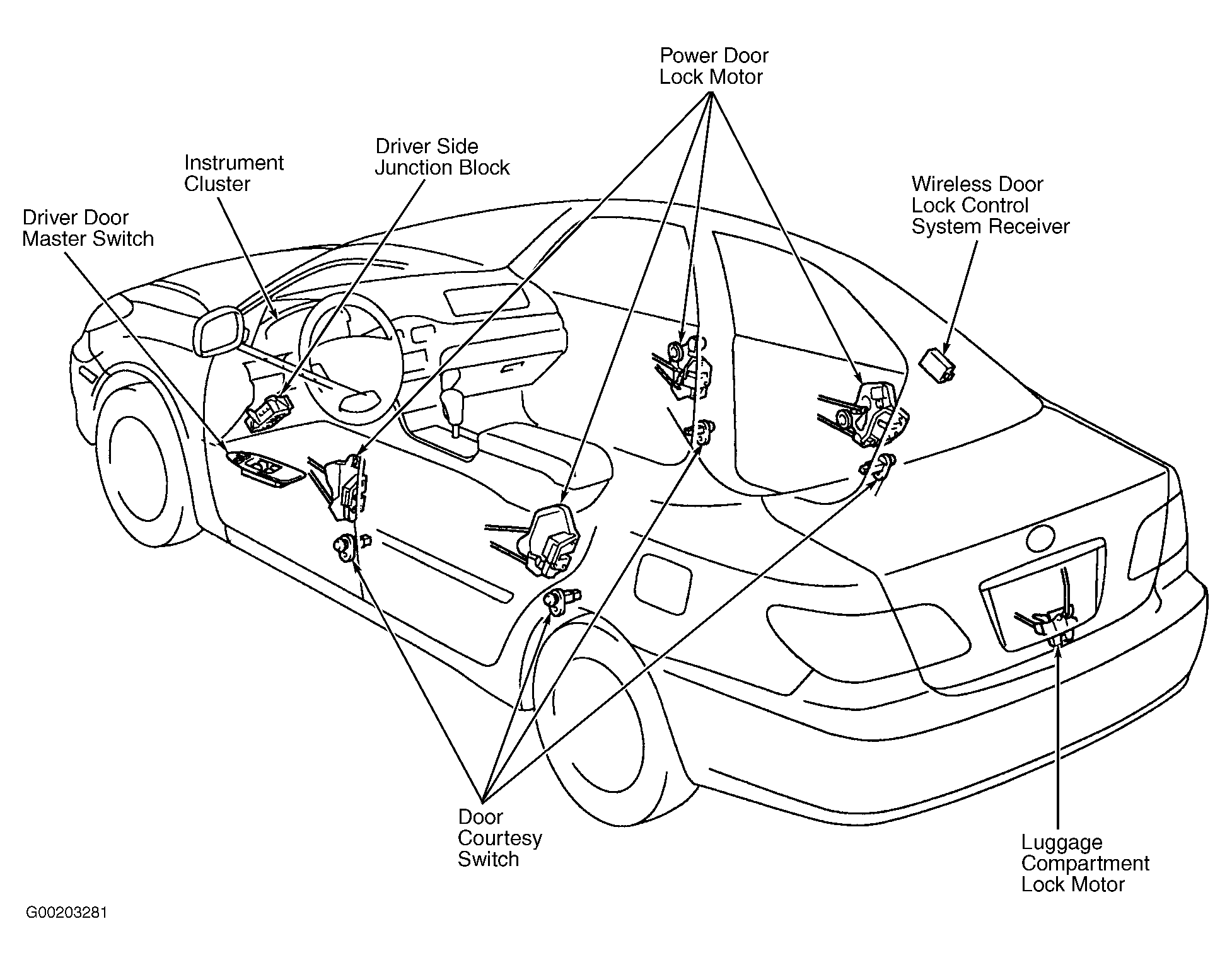

For additional wireless door lock control system component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block |
| Door Courtesy Switch | On Each Door Jamb |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Engine Compartment Junction Block | Left Side Of Engine Compartment, In Front Of Shock Tower |
| Instrument Cluster | On Instrument Panel, Above Steering Column |
| Key Unlock Warning Switch | On Right Side Of Steering Column, Below Ignition Switch |
| Luggage Compartment Lock Assembly | Bottom Of Luggage Compartment (Trunk) Lid |
| Power Door Lock Motor | Inside Each Door |
| Wireless Door Lock Control System Buzzer | Right Front Corner Of Engine Compartment, Behind Washer Fluid Reservoir |
| Wireless Door Lock Control System Receiver | Right "C" Pillar |
