Connector Identification
Connector Identification

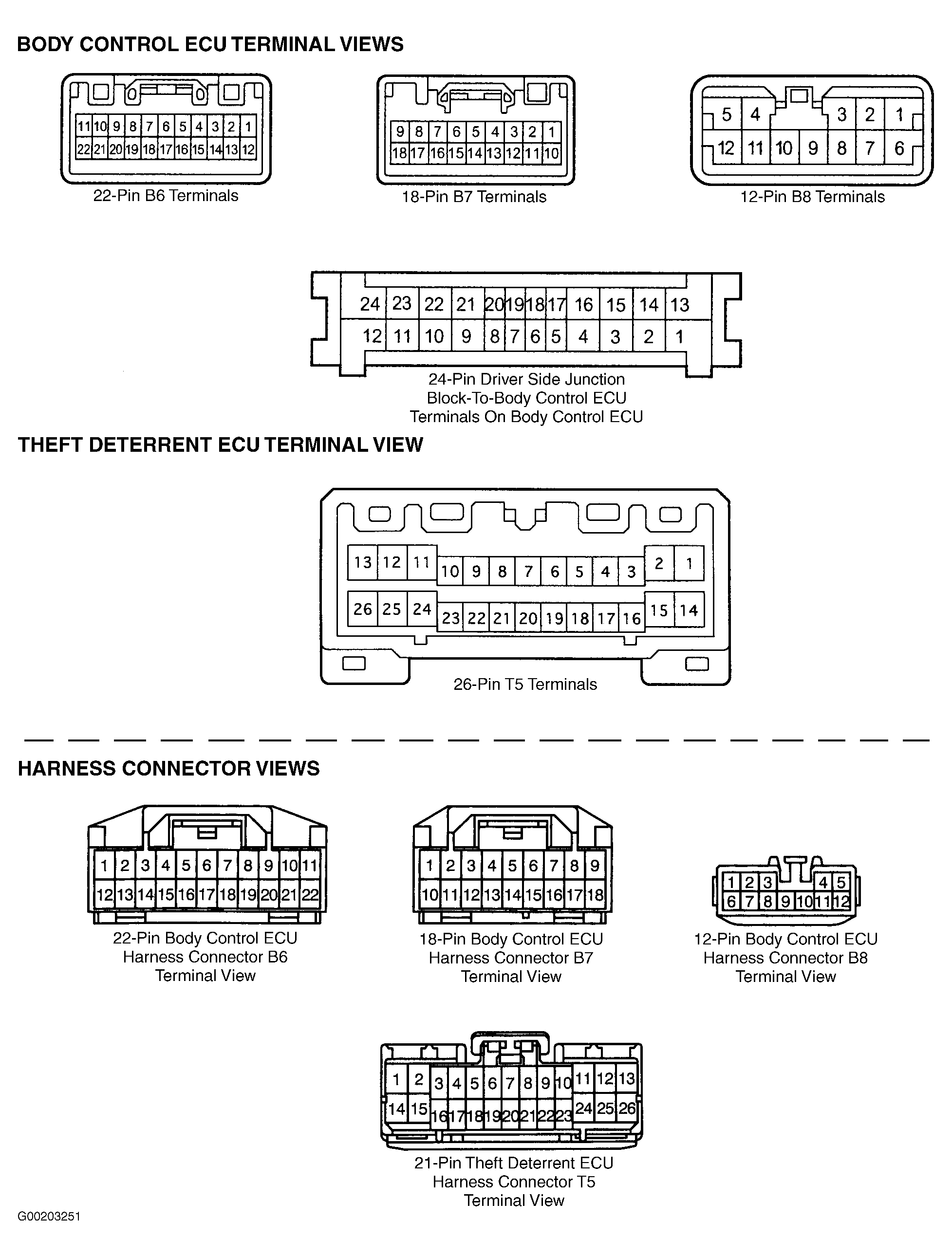

Fig 1: Identifying Multiplex Control System ECU Terminals & Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
