Power Steering Gear: Components

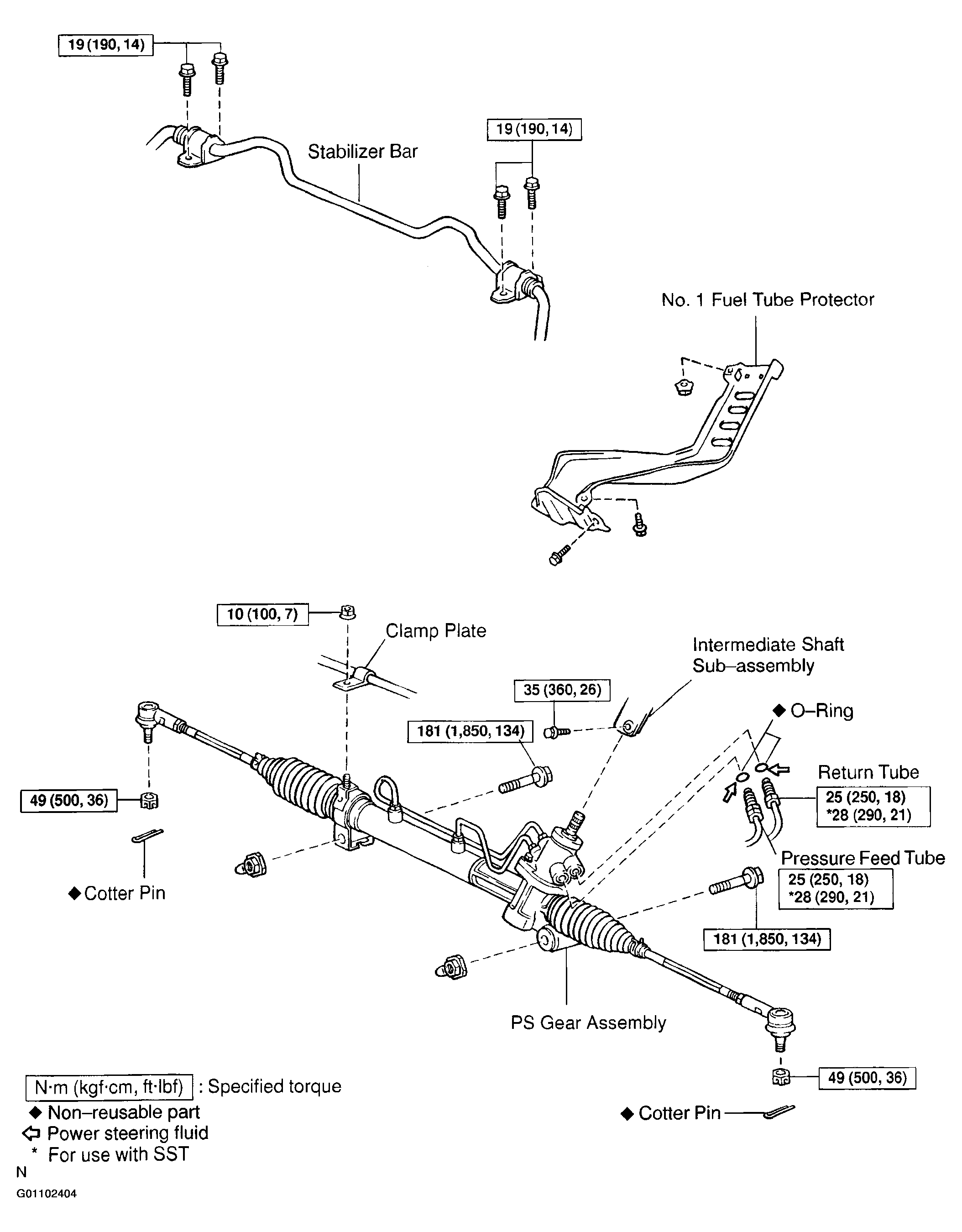

Fig 1: Identifying Power Steering Gear Components
G01102404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

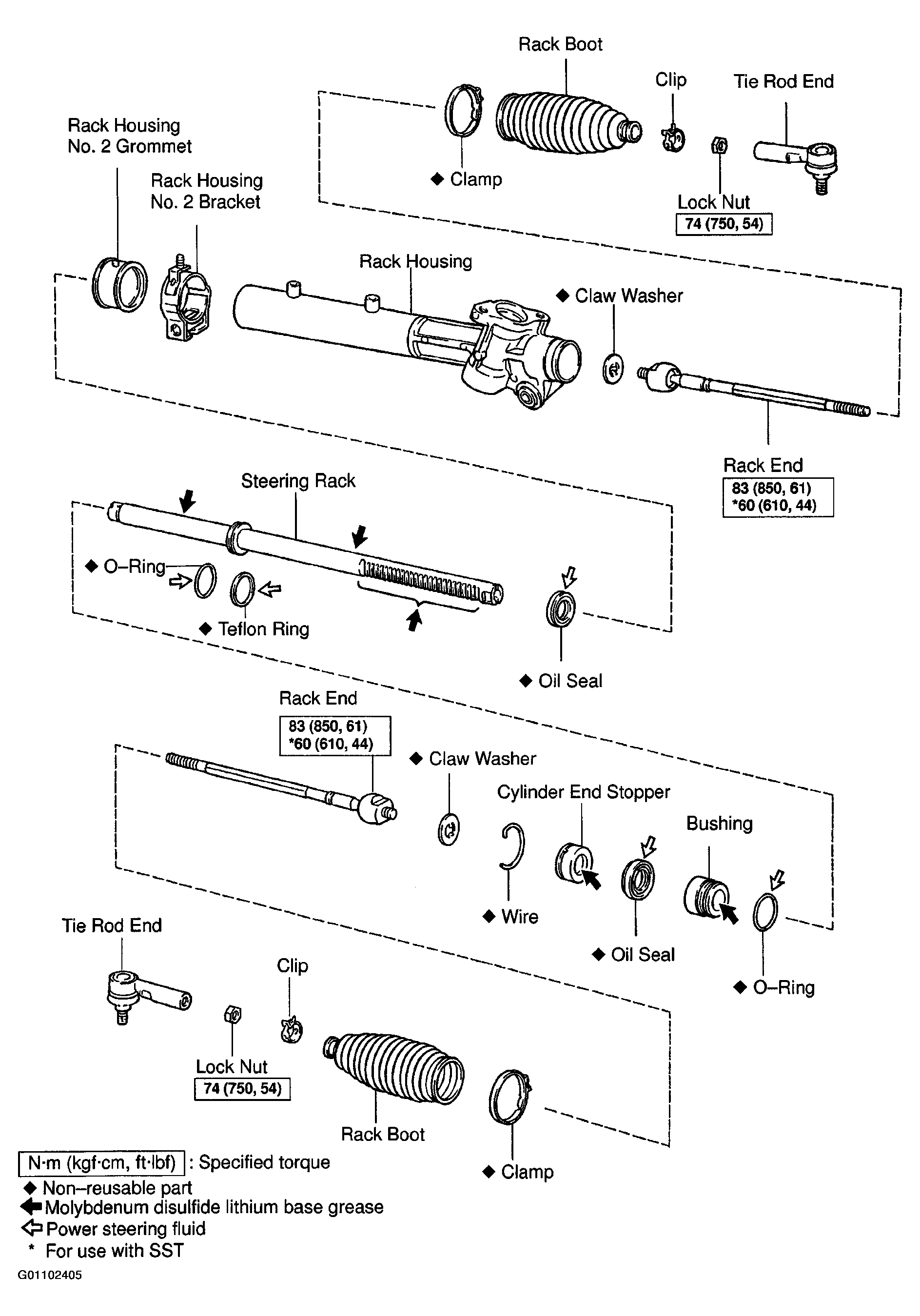

Fig 2: Exploded View Of Power Steering Gear
G01102405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

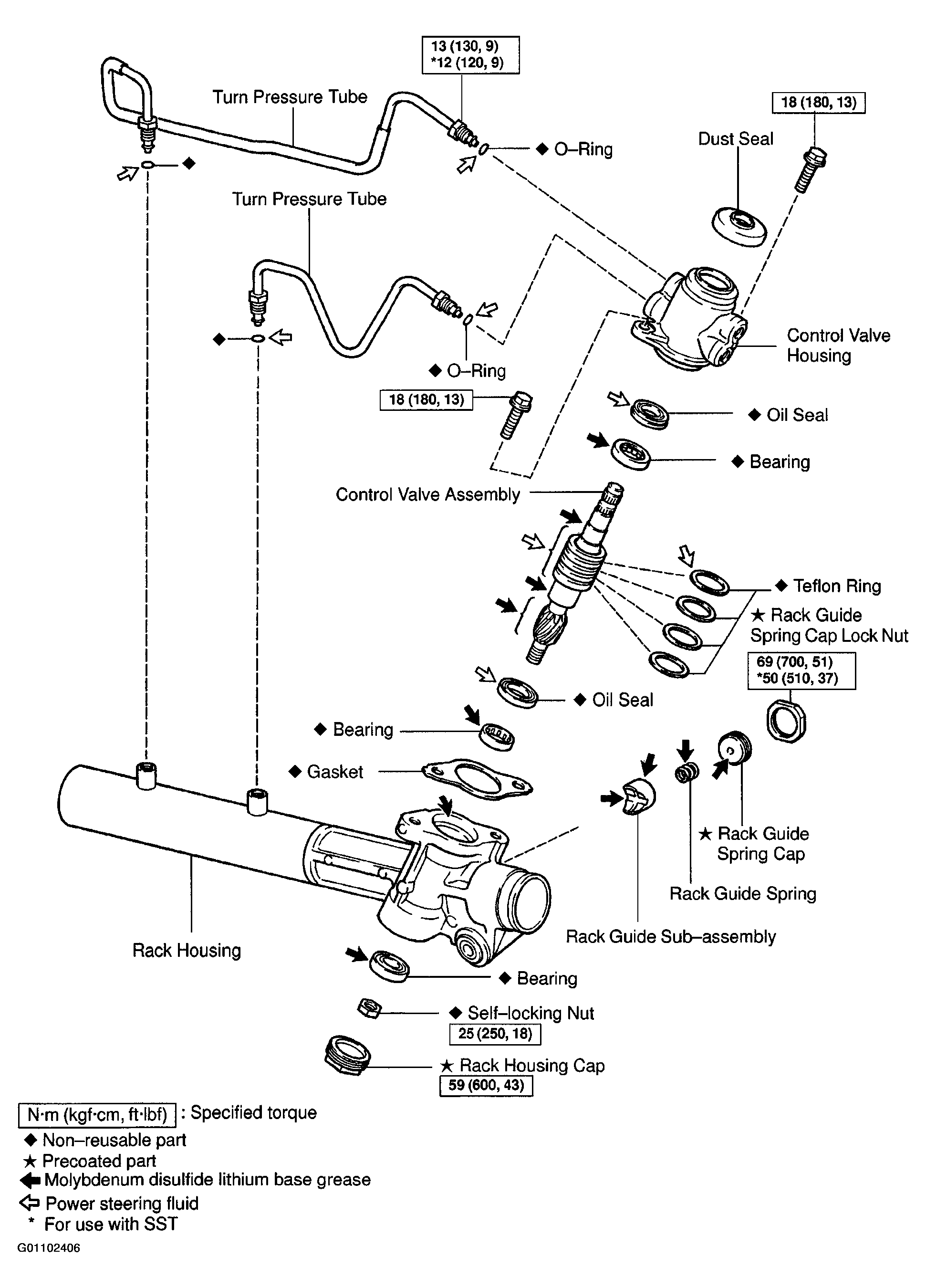

Fig 3: Exploded View Of Control Valve & Rack Housing
G01102406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
