Abs Actuator Components

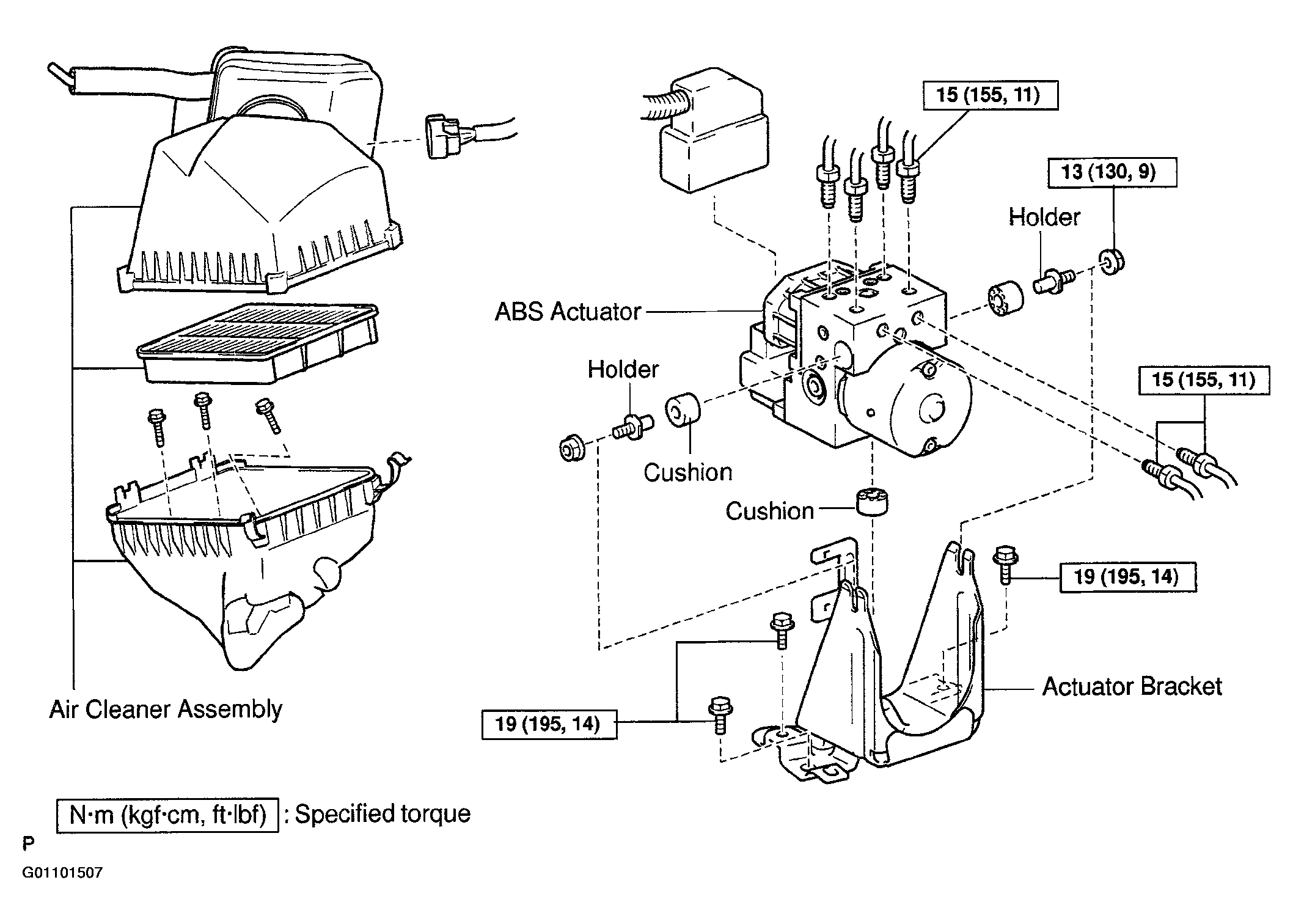

Fig 1: Identifying ABS Actuator & Related Components (1 Of 2)
G01101507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

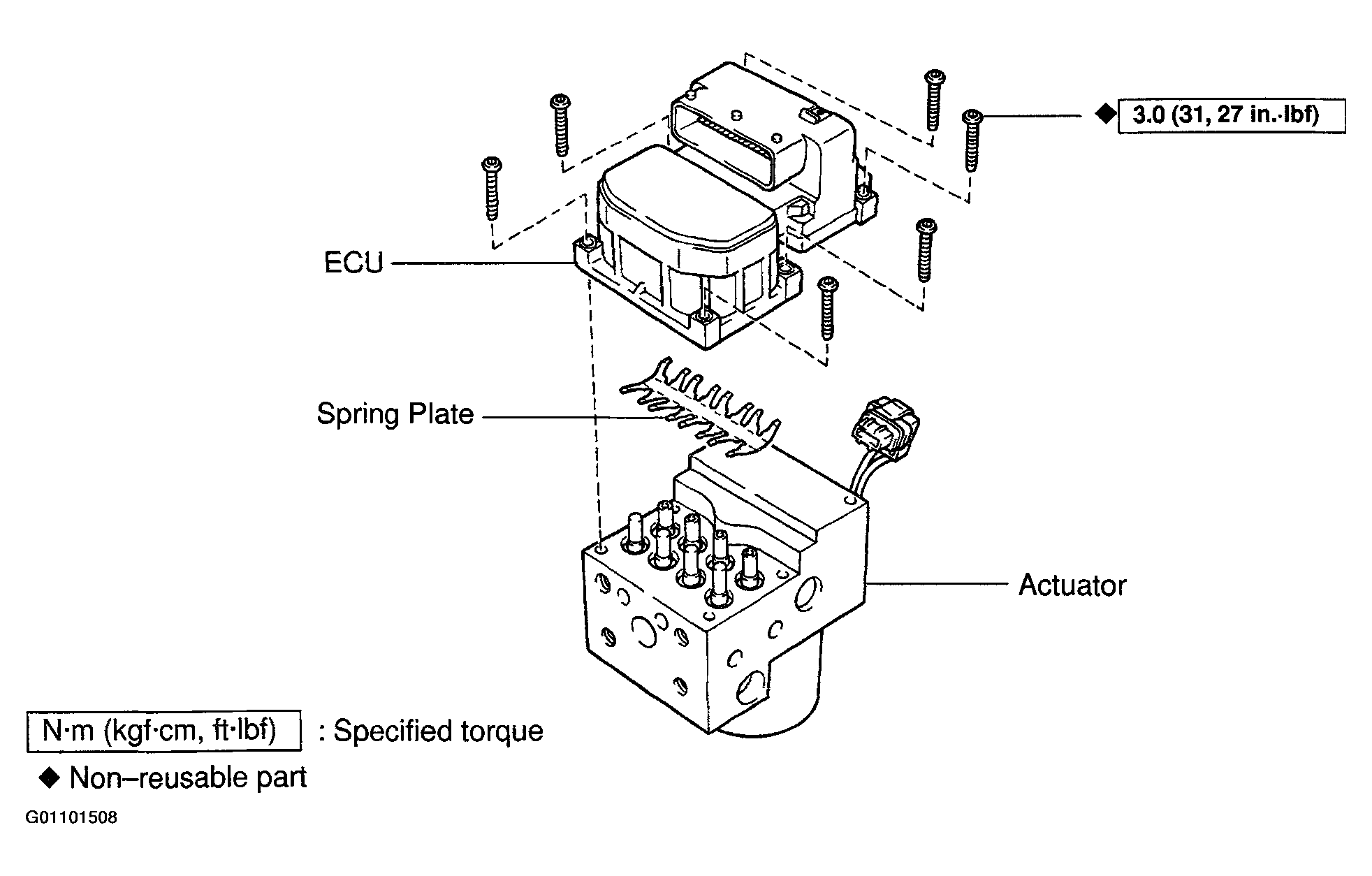

Fig 2: Identifying ABS Actuator & Related Components (2 Of 2)
G01101508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
