Oil Pump: Components

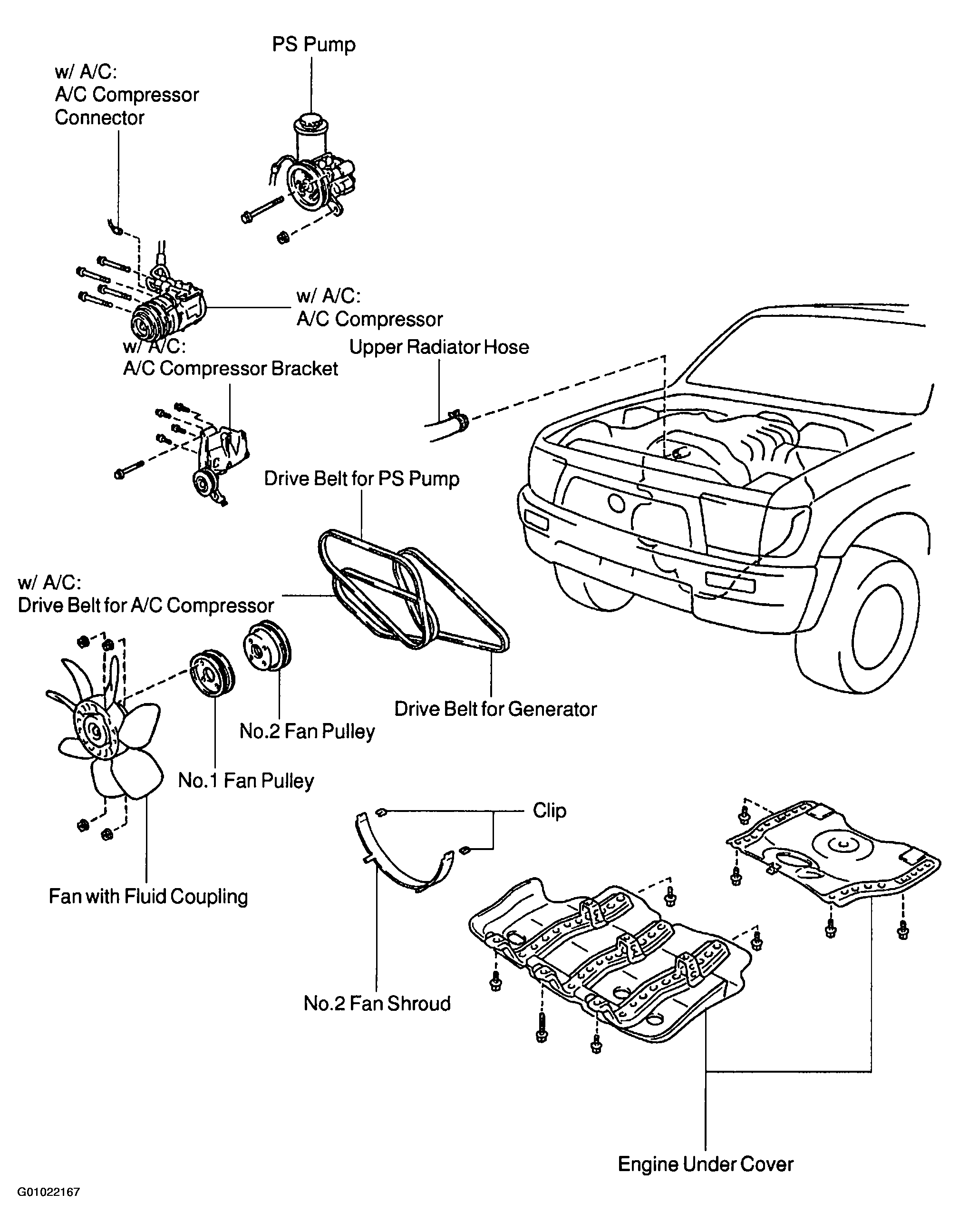

Fig 1: Identifying Components For Oil Pump Removal (1 Of 2)
G01022167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

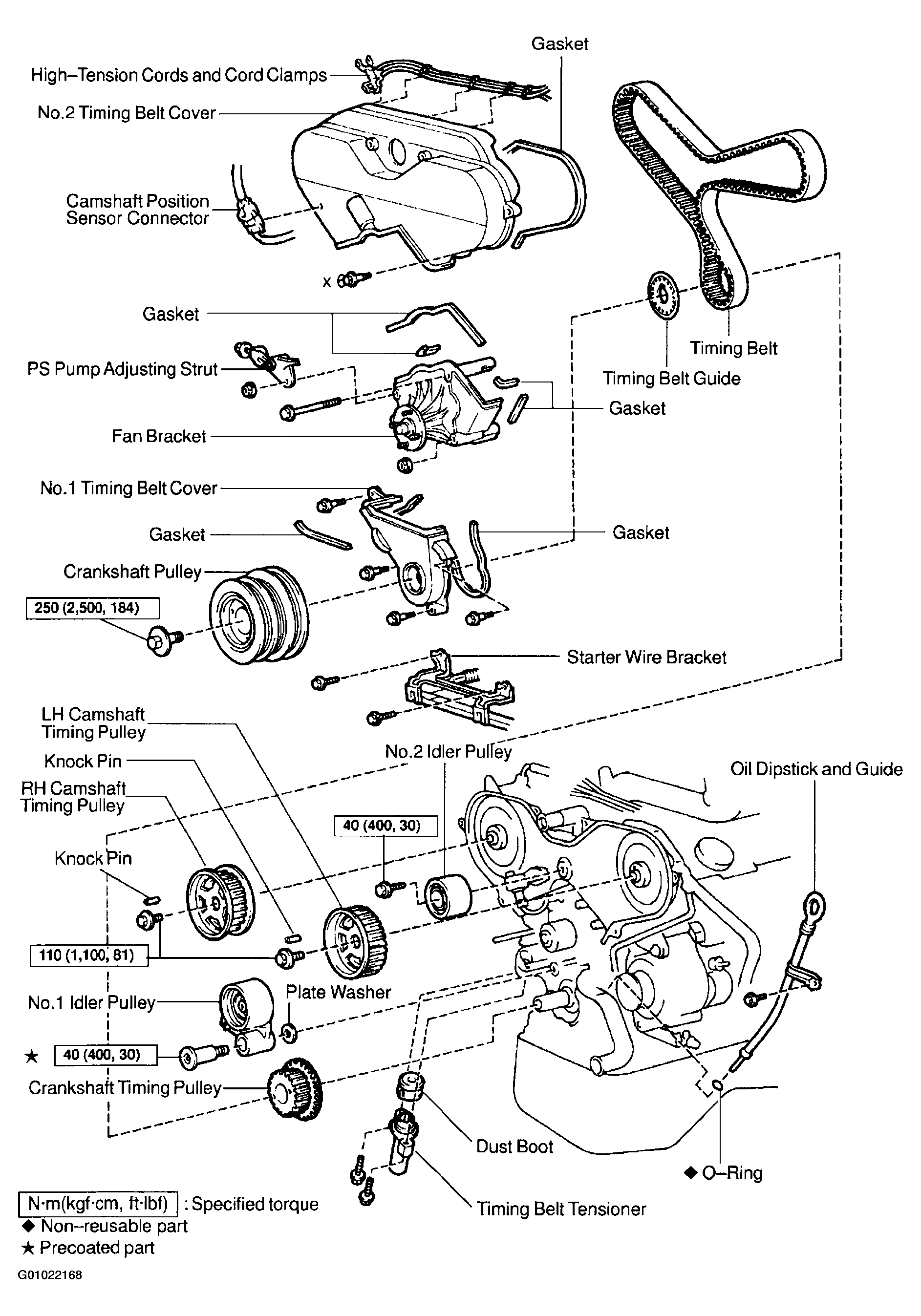

Fig 2: Identifying Components For Oil Pump Removal (2 Of 2)
G01022168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

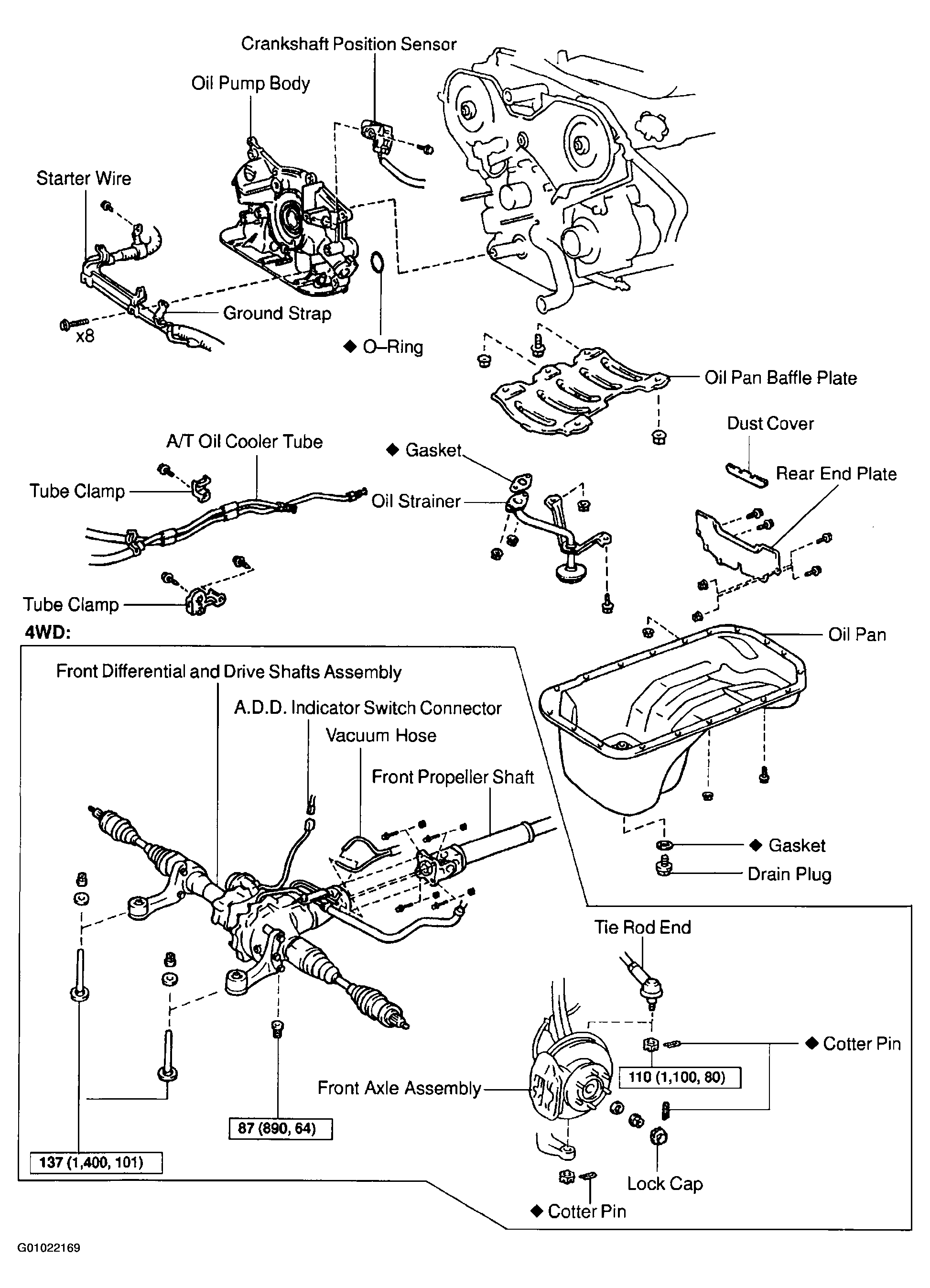

Fig 3: Removing Oil Pump
G01022169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

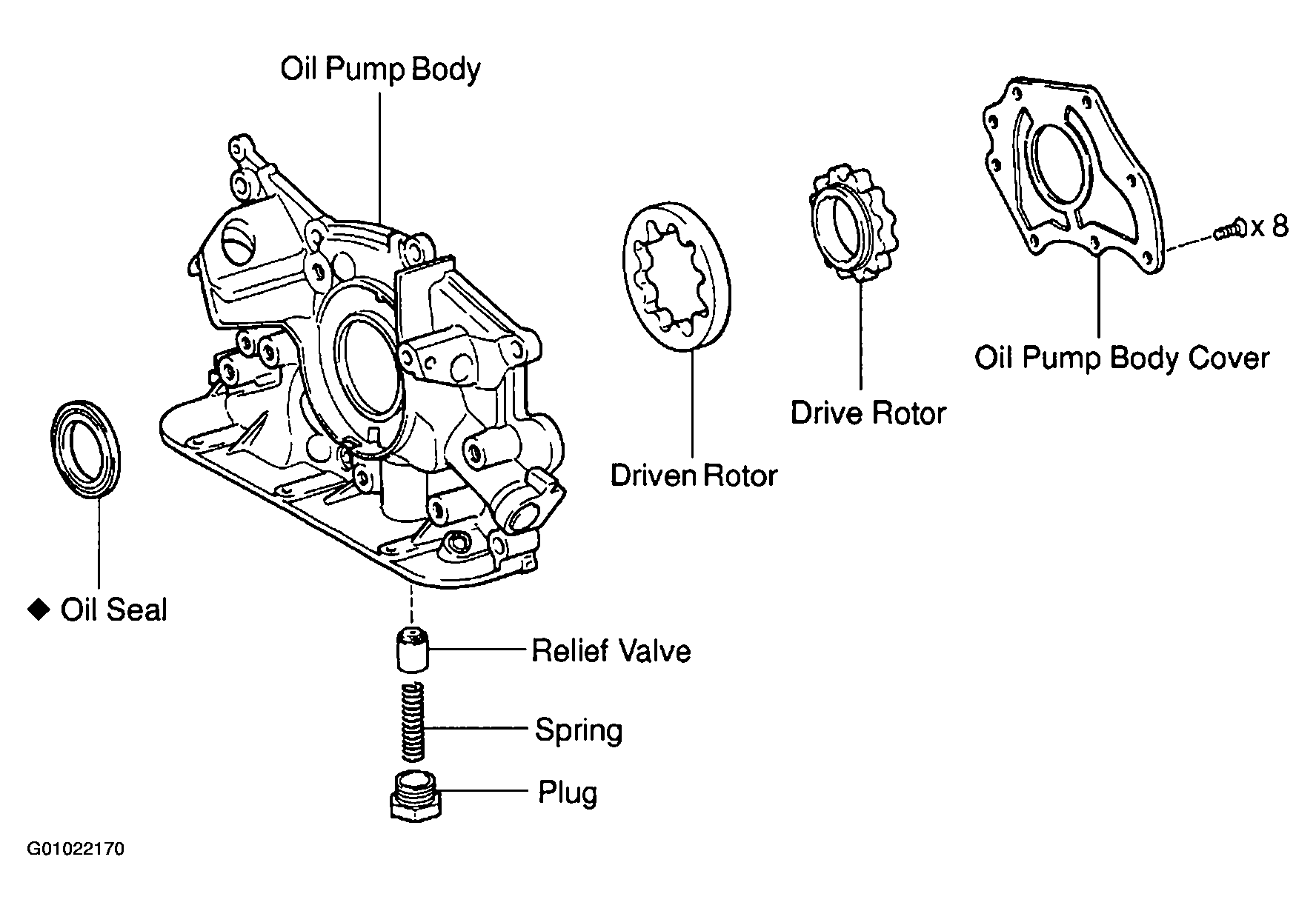

Fig 4: Identifying Oil Pump Components
G01022170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
